Washer Reservoir Replacement

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Hoist vehicle.
3. Remove front fascia as necessary (left side only and use a 2x4 to prop left edge of fascia away from body).
4. Disconnect the wire connectors from the reservoir pump and float sensor.
5. Disconnect the washer hose and block the liquid outlet to prevent the liquid from running out of the reservoir.
6. Reach up behind the washer reservoir and pull the filler tube off the rear of the reservoir.

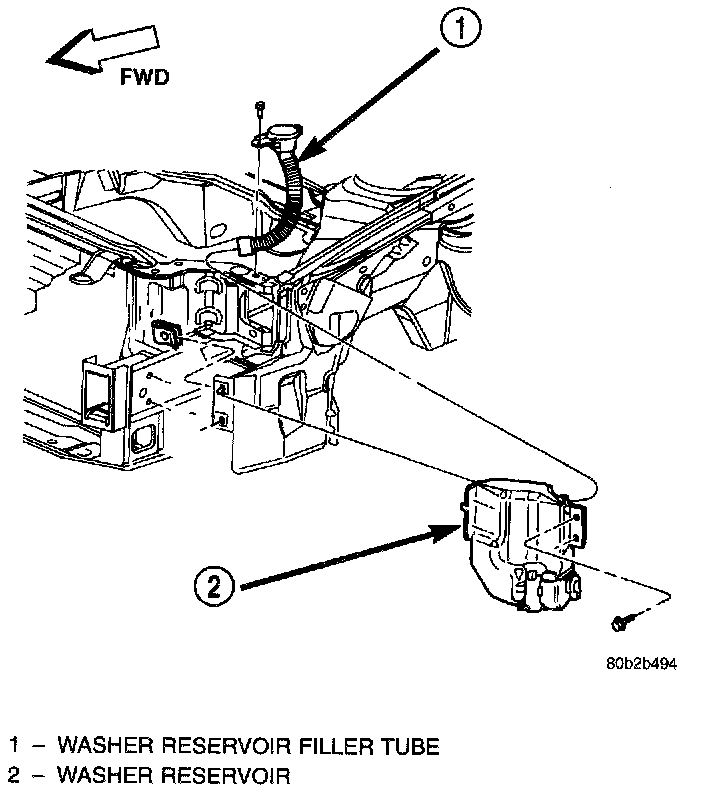

Washer Reservoir Removal:

7. Remove four mounting bolts to washer reservoir.
8. Remove washer reservoir from vehicle.

Washer Reservoir:

9. Transfer fluid level sensor, pump, and washer fluid to new reservoir.

INSTALLATION

1. Connect washer hose, filler tube, and wire connectors to reservoir.
2. Install reservoir retaining bolts. Torque bolts to 80 to 124 in. lbs. (9 to 14 N.m ).
3. Reconnect the negative battery cable remote terminal.
