Washer Reservoir Filler Tube Replacement

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Hoist vehicle.
3. Remove front fascia as necessary (left side only and use a 2x4 to prop left edge of fascia away from body).
4. Reach up behind the washer reservoir and pull the filler tube off the rear of the reservoir.

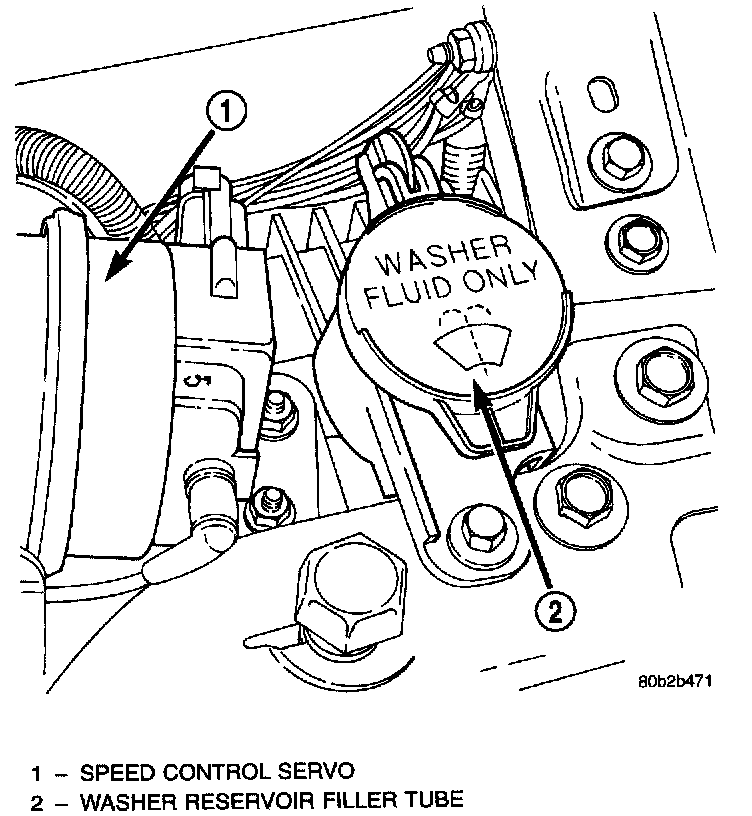

Washer Reservoir Filler Tube:

5. Remove one screw attaching washer reservoir filler tube to upper radiator support.
6. Pull filler tube and hose up through left fender and remove.

INSTALLATION
For installation, reverse the above procedures.

NOTE: Replace/refill washer fluid after filler tube replacement.
