Valve Body: Service and Repair

REMOVAL
1. Raise vehicle on hoist.
2. Remove valve body assembly from transaxle.

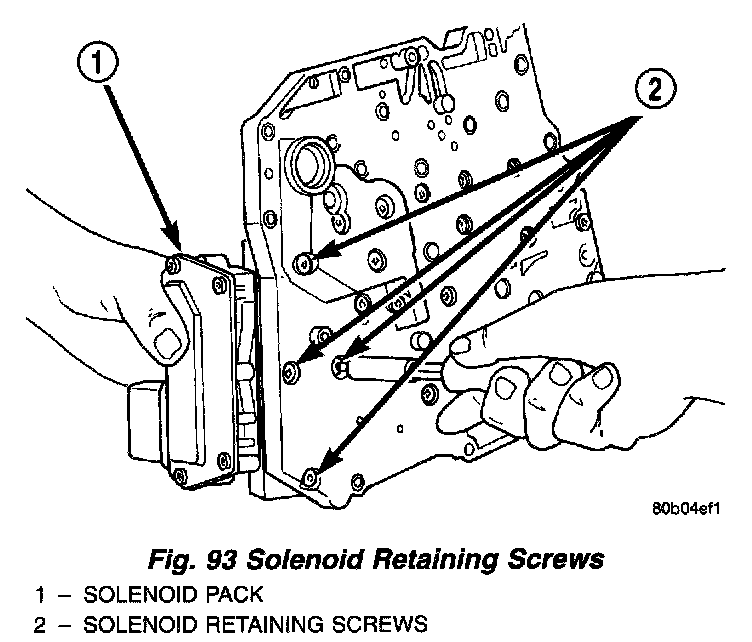

Fig. 93:

3. Remove Solenoid/Pressure Switch Assembly retaining screws from solenoid (Fig. 93).

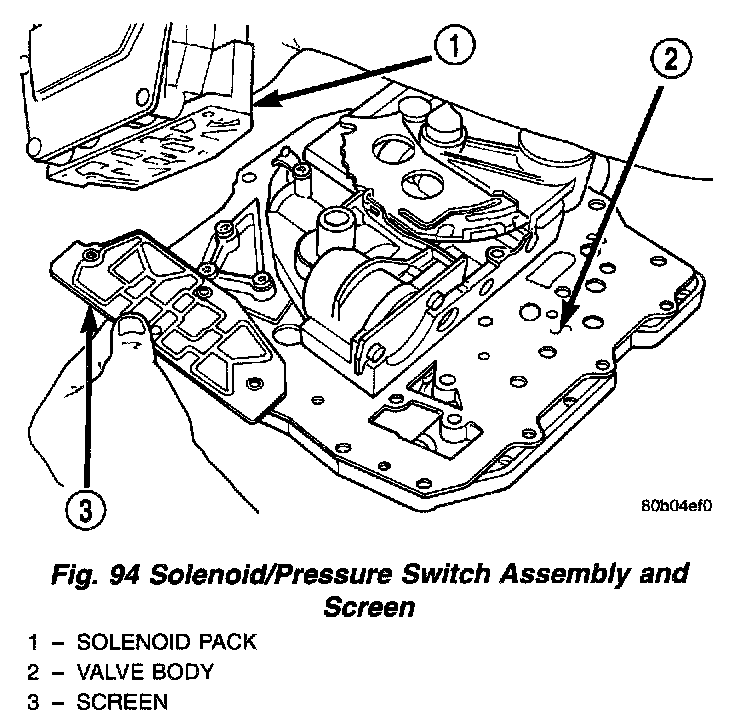

Fig. 94:

4. Remove Solenoid/Pressure Switch Assembly and screen from valve body (Fig. 94).

INSTALLATION
1. Install Solenoid/Pressure Switch Assembly and screen to the separator and transfer plates (Fig. 94).
2. Install and tighten retaining screws (Fig. 93) to 6 Nm (53 inch lbs.) torque.
3. Install valve body.
