Steering and Suspension: Testing and Inspection

DIAGNOSIS AND TESTING

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

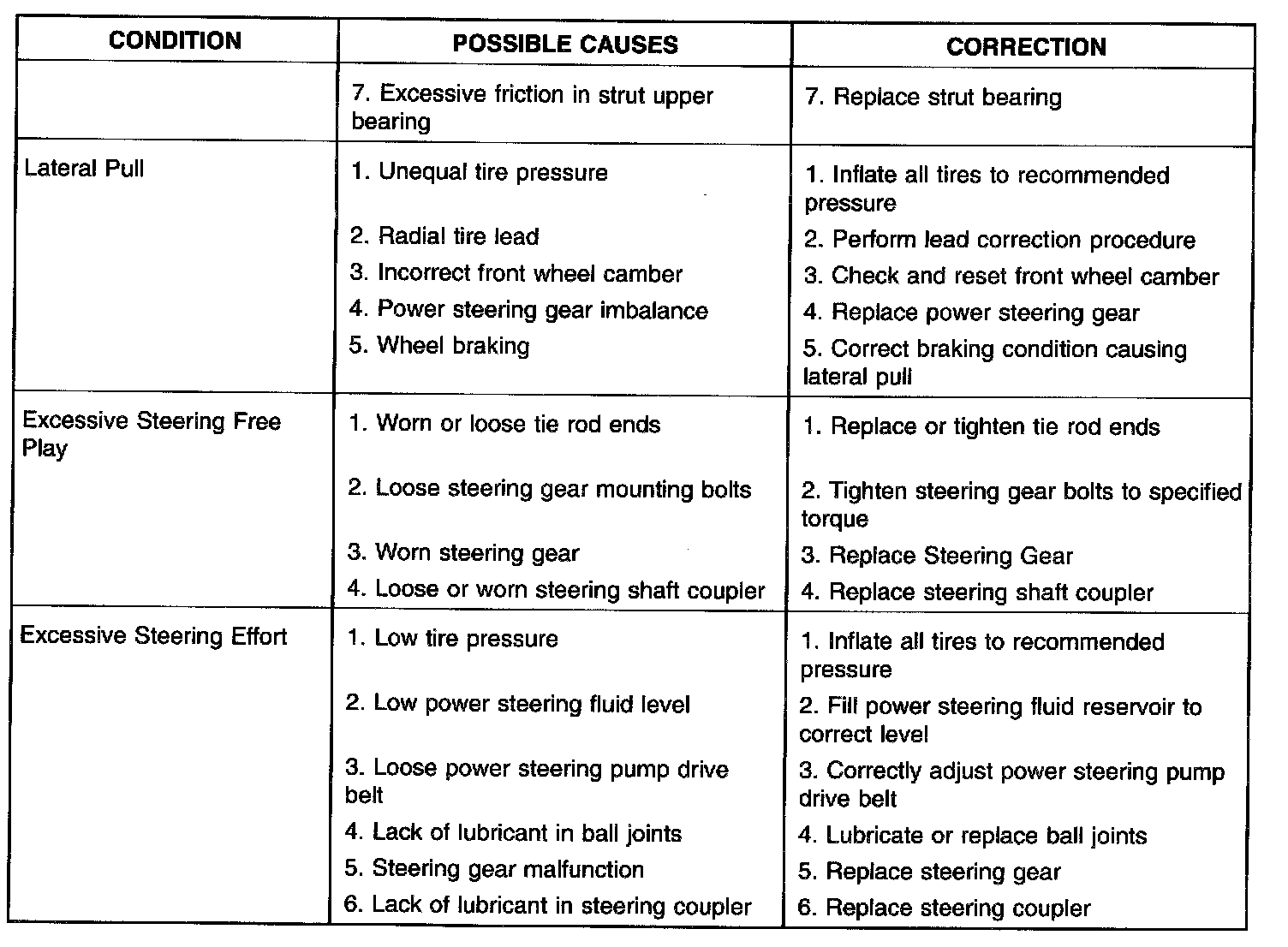

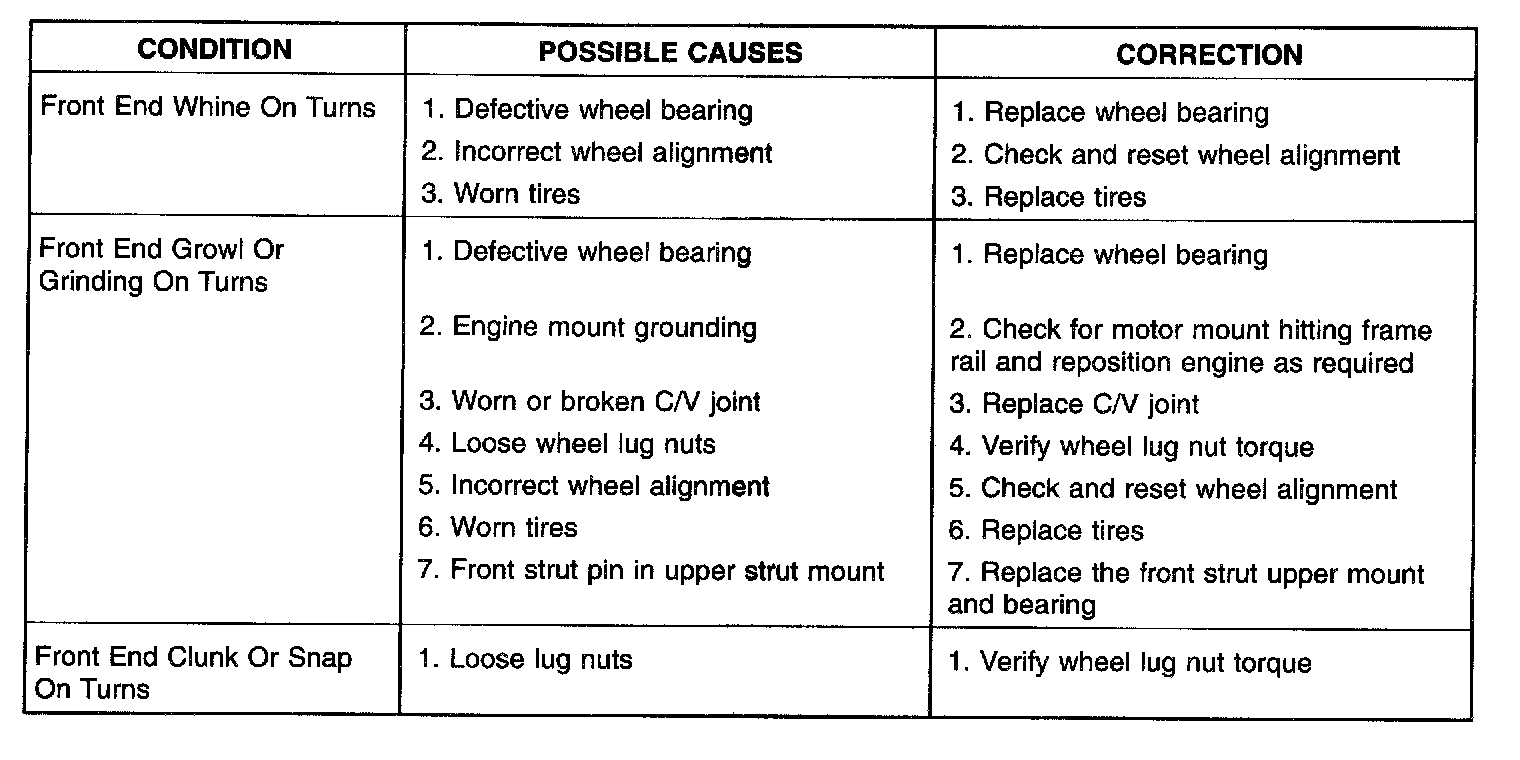

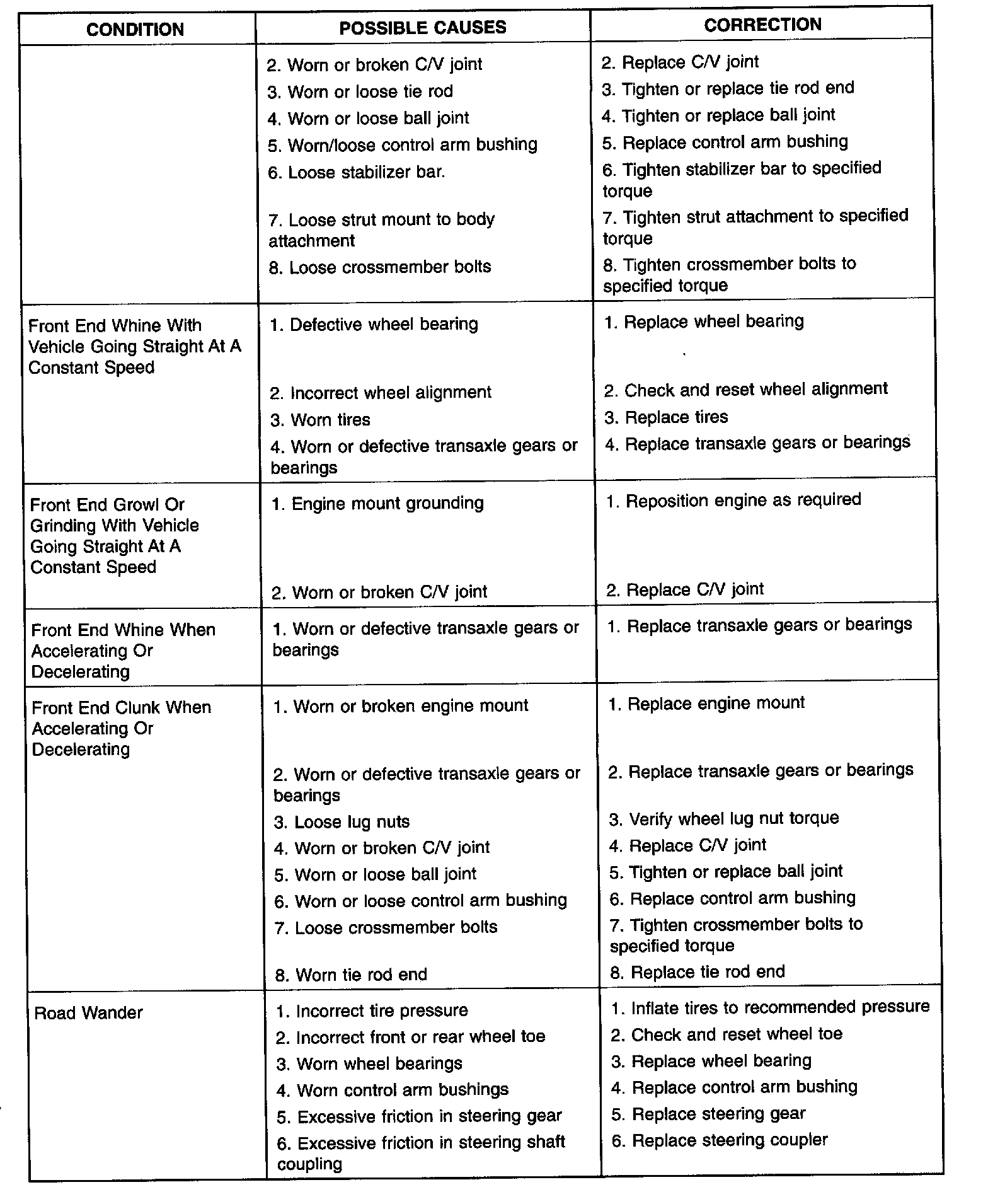

SUSPENSION AND STEERING DIAGNOSIS
