Turn Signal Bulb: Service and Repair

REMOVAL

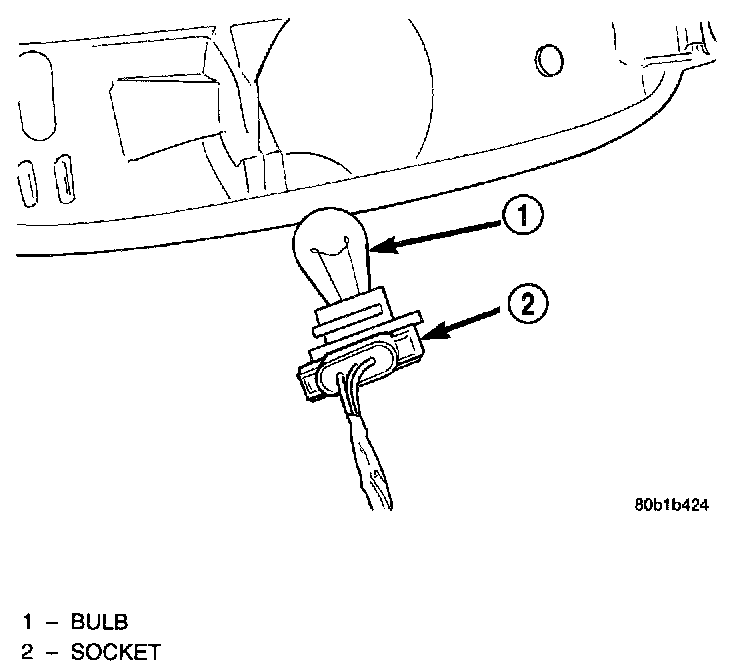

Parking, Side Marker And Turn Signal Lamp Bulb:




1. Reach under the fascia and remove the socket from the lamp housing.
2. Rotate and pull socket from lamp housing.
3. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install socket into lamp housing.
3. Verify park and turn signal lamp operation.
