Marker Lamp: Service and Repair
Front Parking/Side Marker/Turn Signal Lamp Housing ReplacementREMOVAL
1. Remove headlamp housing to access lamp housing.
2. Rotate and pull socket from lamp housing.

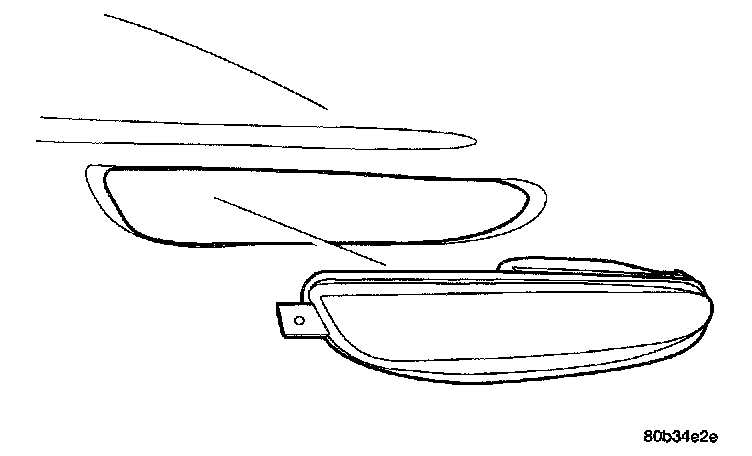

Front Parking, Side Marker, And Turn Signal Lamp Housing:
3. Disconnect fastener attaching lamp housing to fascia.
4. Remove lamp housing from vehicle.
INSTALLATION
1. Place lamp housing in position on fascia.
2. Install lamp fastener.
3. Install bulb socket in lamp.
4. Verify lamp operation.
5. Install headlamp housing.
