License Plate Bulb: Service and Repair

License Plate Lamp Bulb - Rear Bumper Fascia Replacement

REMOVAL
1. Remove screws attaching license plate lamp to rear bumper fascia.
2. Remove license plate lamp from rear bumper fascia.

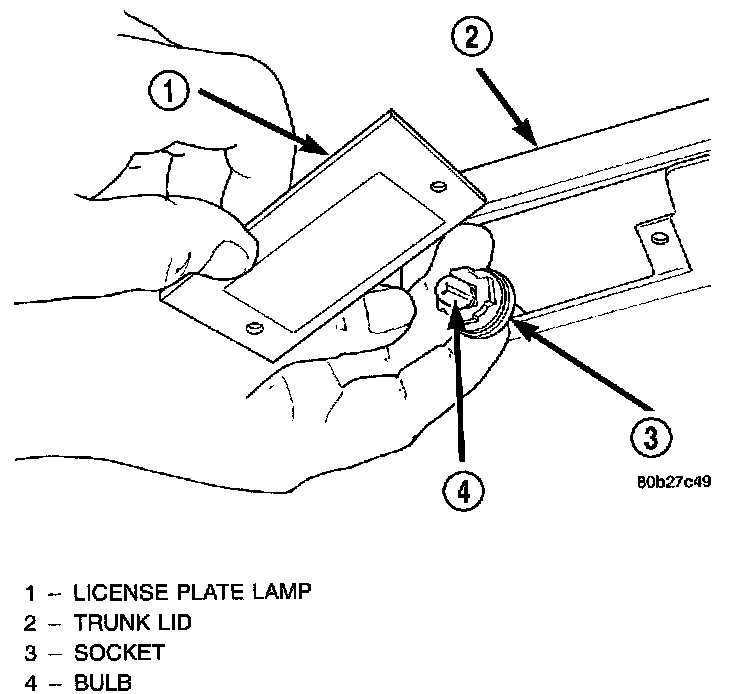

License Plate Lamp Bulb:

3. Remove socket from lamp.
4. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install socket into lamp.
3. Place license plate lamp in position on rear bumper fascia.
4. Install screws to attach license plate lamp to rear bumper fascia.
