Headlamp Bulb: Service and Repair

Headlamp lens fogging is a normal condition and does not require service unless excessive or continual. Moisture will vent from tubes or vents located on the back of the lamp.

REMOVAL
1. Remove headlamp housing..

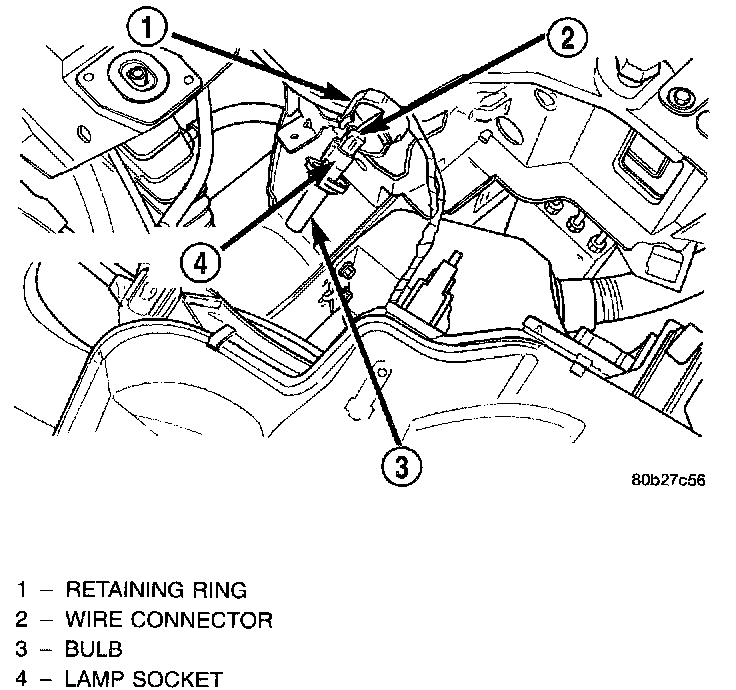

Headlamp Bulb Removal:

2. Rotate retaining ring (High beam or Low beam) and pull lamp socket from headlamp housing.
3. Remove bulb from lamp wiring connector.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Push bulb into lamp wiring connector.
2. Place lamp socket into headlamp housing and rotate retaining ring to the lock position.
3. Install headlamp housing.
