Center Mounted Brake Lamp: Service and Repair

Center High Mounted Stop Lamp (CHMSL) Housing Replacement

REMOVAL
1. Release decklid latch and open decklid.
2. From under rear shelf panel, disconnect CHMSL wire connector from body harness.
3. Remove rear shelf upper panel.

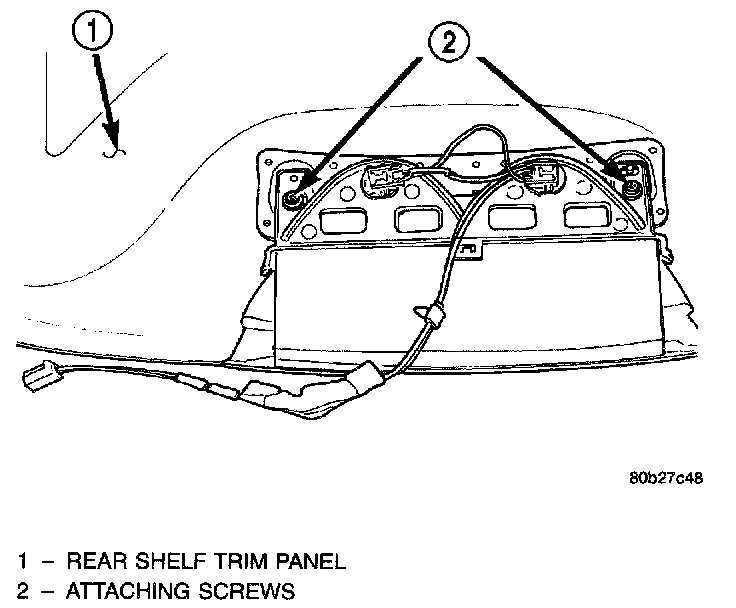

CHMSL - Rear Shelf:

4. Remove fasteners attaching the CHMSL to rear shelf upper panel.
5. Remove CHMSL from rear shelf upper panel.

INSTALLATION
1. Place CHMSL in position on rear shelf upper panel.
2. Install fasteners to attach CHMSL to rear shelf upper panel.
3. Install rear shelf upper panel.
4. Connect CHMSL wire connector to body harness.
5. Verify CHMSL operation.
