Center Mounted Brake Lamp Bulb: Service and Repair

Center High Mounted Stop Lamp (CHMSL) Bulb Replacement

REMOVAL
1. Release decklid latch and open decklid.

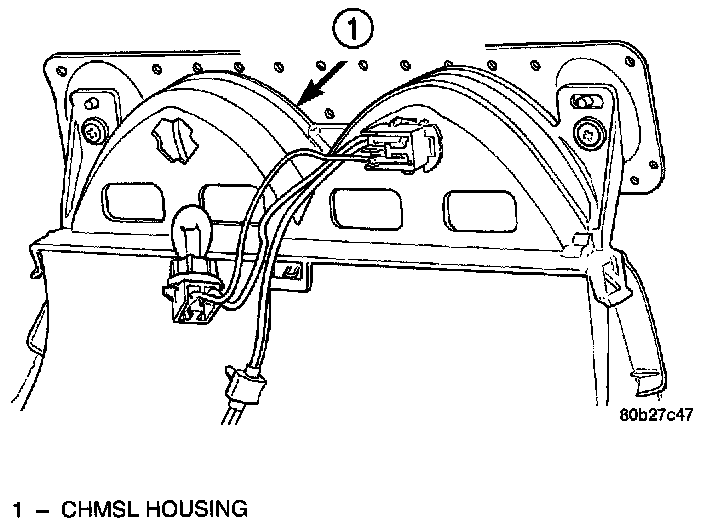

CHMSL - Rear Shelf:

2. From under rear shelf panel, disconnect the lamp socket from the CHMSL housing.
3. Remove bulb from the socket.

INSTALLATION
1. Install the bulb into the socket.
2. Install socket into CHMSL housing.
3. Verify CHMSL operation.
