Instrument Panel Bulb: Service and Repair

To service instrument cluster lamps, the cluster must be removed from the instrument panel. Refer to Cluster and Bezel Removal and Installation.

Cluster Lamps:

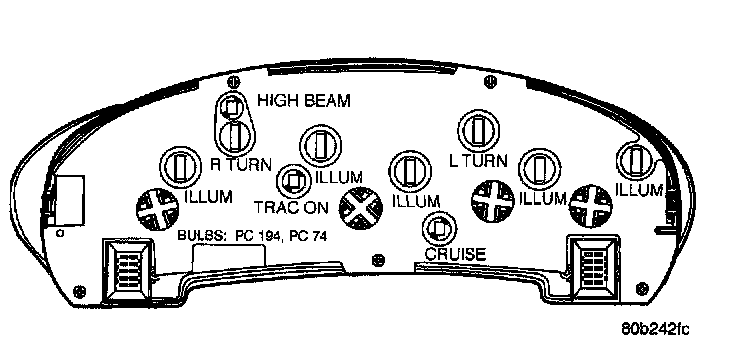

Refer to the above image for cluster lamp locations.

The lamps that are replaceable are called out on the back cover of the instrument cluster. All other indicators are Light Emitting Diodes (LED's), and are serviced with the cluster assembly. If a LED is non-functional, the entire instrument cluster must be replaced. Refer to the INDICATORS - BULBS table for applications.
