Fuel System/Electrical - Fuel Pressure/Wiring Updates

NUMBER: 26-012-00F

GROUP: Miscellaneous

DATE: December, 2000

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
2000 LHS/300M/Concorde/Intrepid Service Manual - Publication Number 81-270-0040

DESCRIPTION OF CHANGES

Updates to the fuel pressure specification

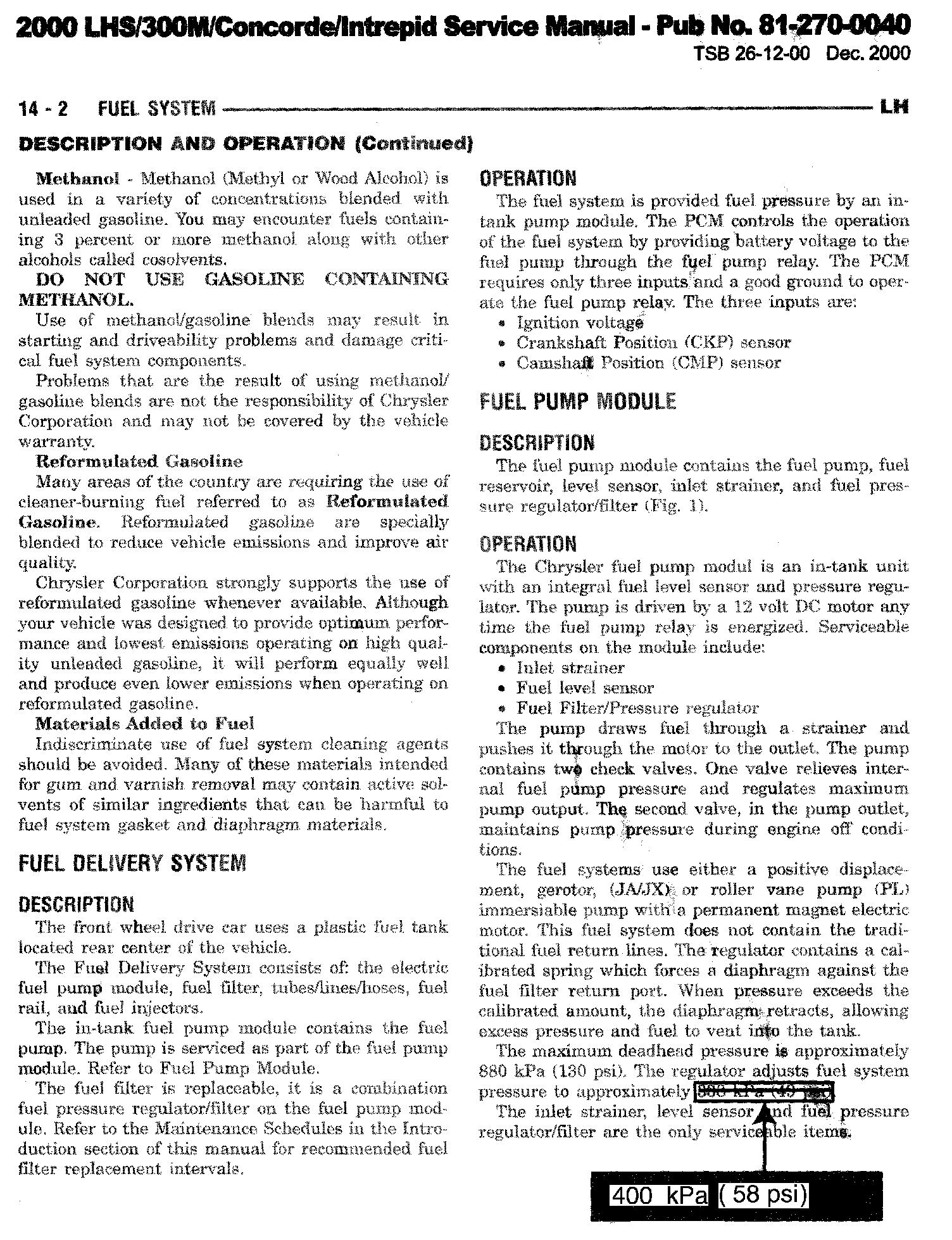

14-2

Updates to the Electrical/Wiring section

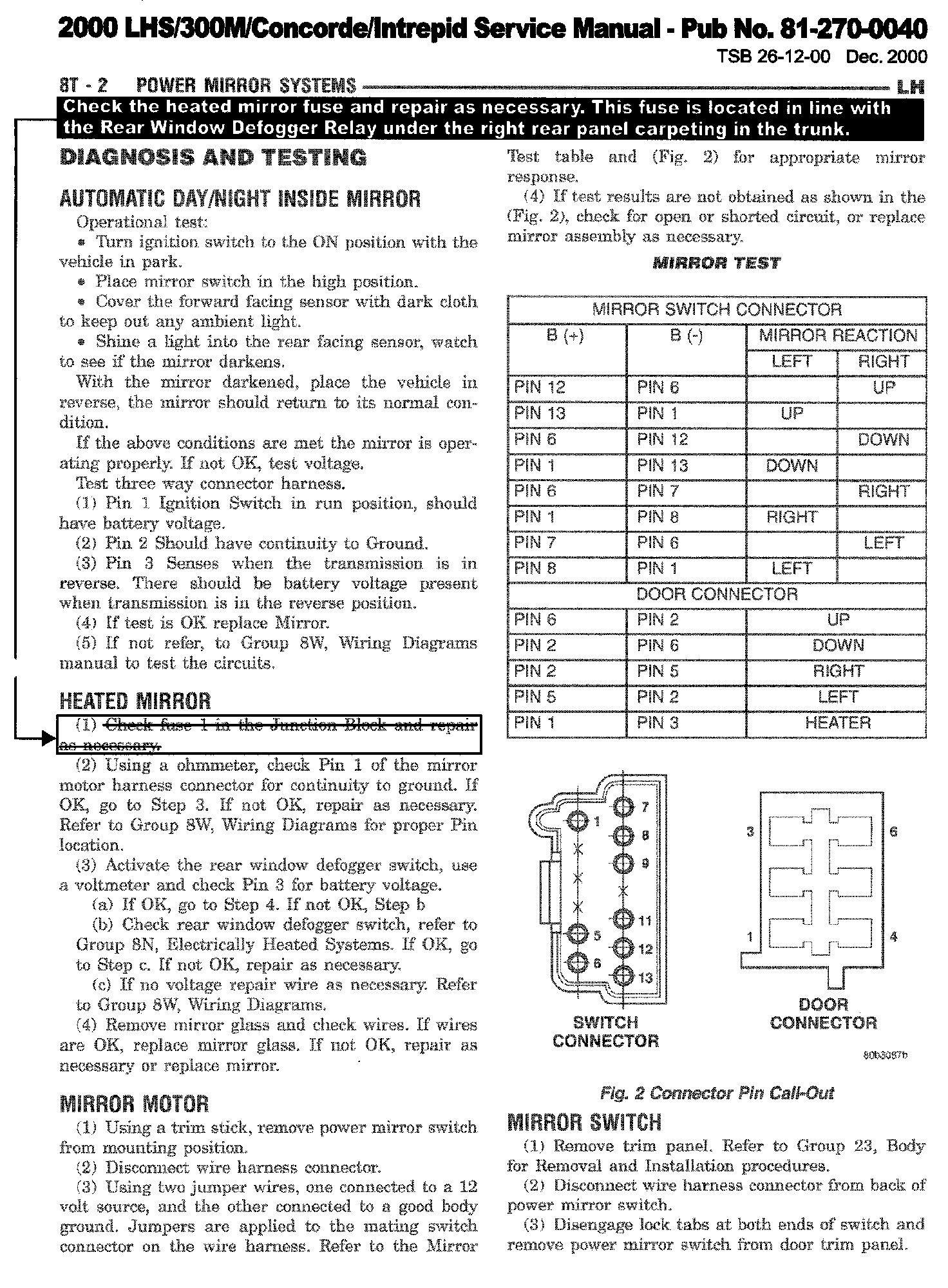

8T-2

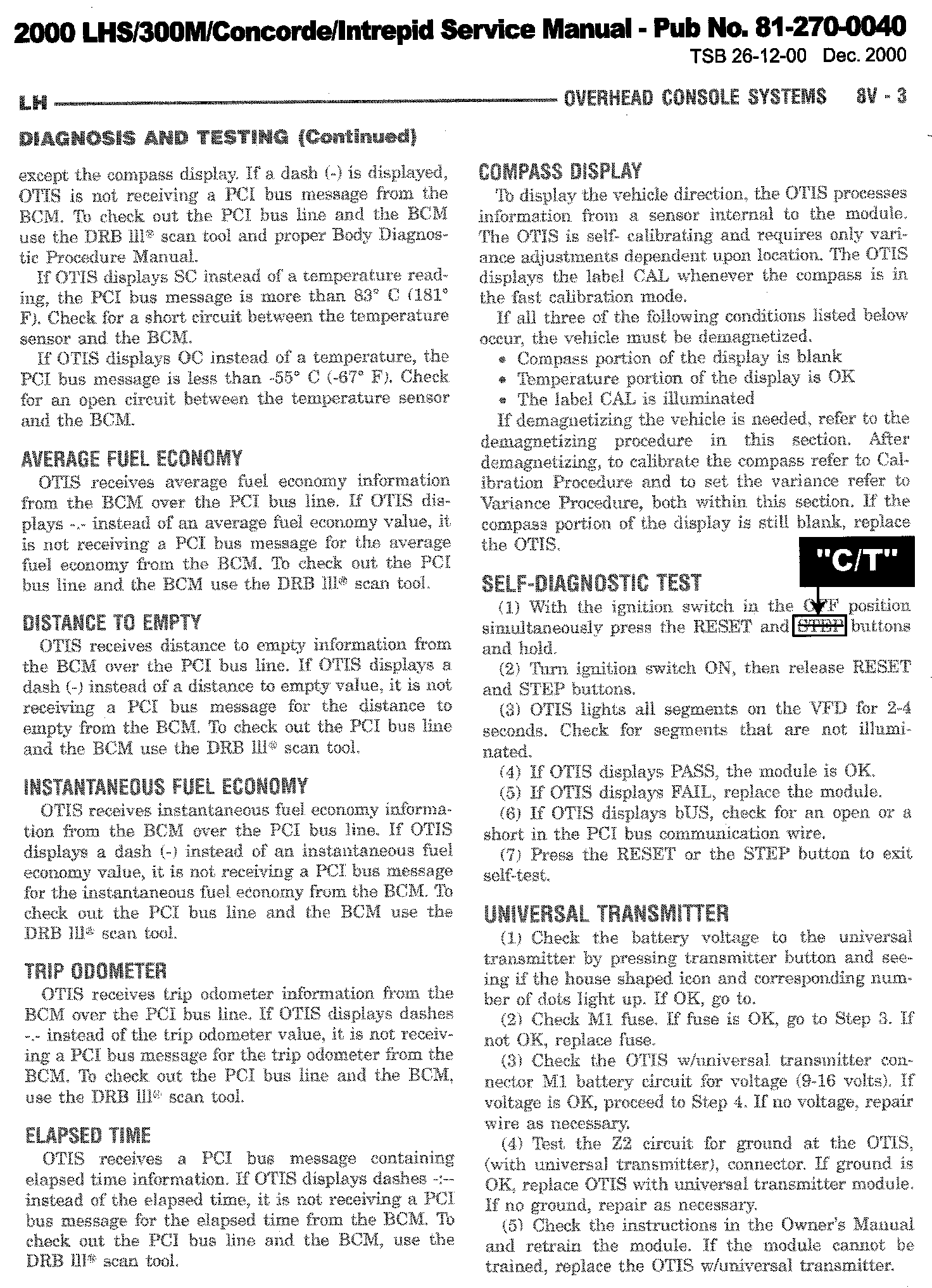

8V-3

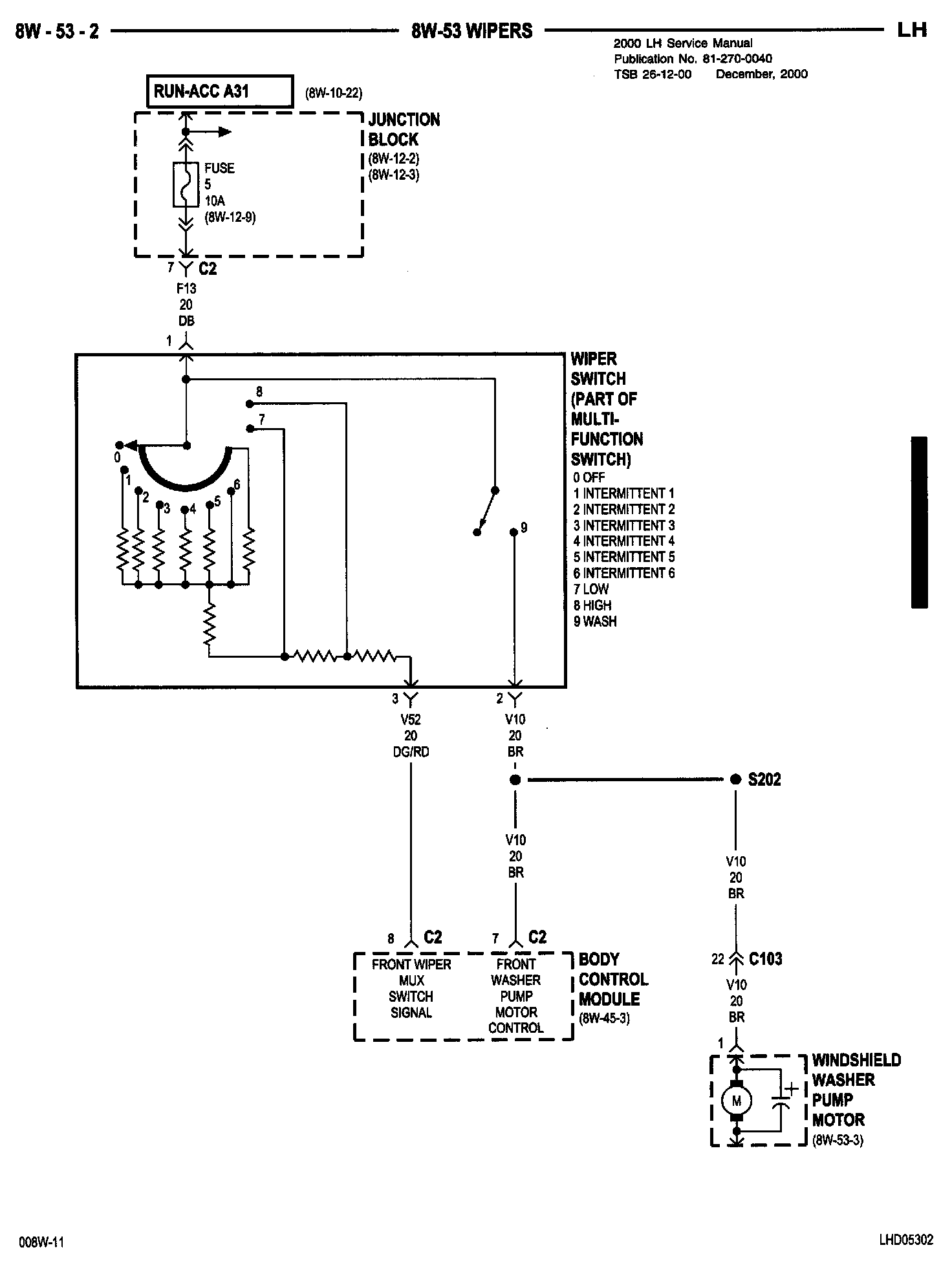

8W-53-2
