Body Mounted Door Opening Weatherstrip - Loose
NUMBER: 23-20-00GROUP: Body
DATE: May, 12, 2000
SUBJECT:
Body Mounted Door Opening Weatherstrip Loose
OVERVIEW:
This bulletin involves installing clips to secure weatherstrips to the pinch flange.
MODELS:
1998 - 2000 (LH) Concorde/Intrepid/LHS/3OOM
SYMPTOM/CONDITION:
Body mounted weatherstrip (primary weatherstrip) is loose or pulls away easily from the pinch flange.
DIAGNOSIS:
Inspect weatherstrip where it has pulled away from the pinch flange for damage. If weatherstrip is damaged, replace it. If the weatherstrip is OK, perform the Repair Procedure.
PARTS REQUIRED:
1 05019585M Clip, Weatherstrip
REPAIR PROCEDURE:
THIS REPAIR IS COMPATIBLE WITH DAIMLERCHRYSLER'S MOBILE SERVICE PROGRAM AND DOES NOT REQUIRE HOISTS OR OTHER FULL SERVICE FACILITY SPECIAL EQUIPMENT.

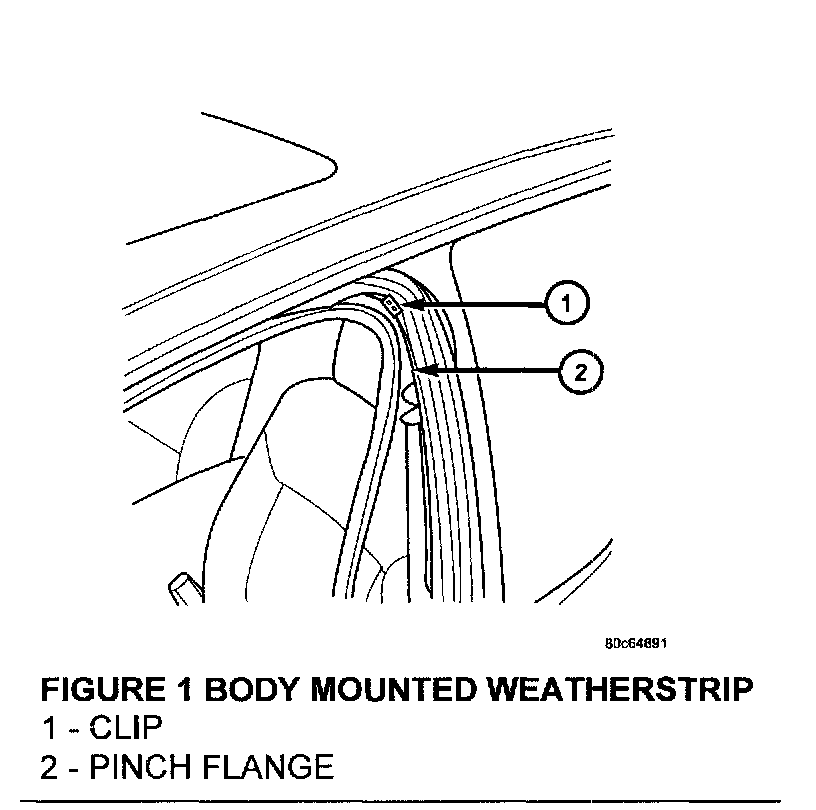

1. Install clip, p/n 05019585AA, on the pinch flange in area where weatherstrip is loose. One clip in the center of the pulled away area should be enough (Figure 1).
2. Install the weatherstrip over the clips and pinch flange.
NOTE:
WEATHERSTRIPS CAN BE INSTALLED WITHOUT REMOVING TRIM PANELS.
3. Repeat procedure on all loose primary weatherstrips as necessary.
POLICY: Reimbursable within the provisions of the warranty.

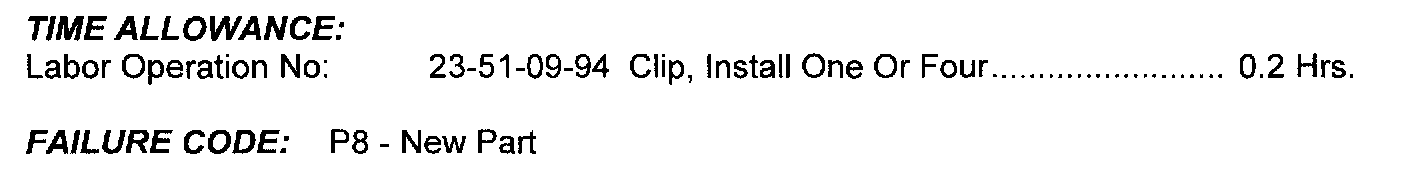

TIME ALLOWANCE AND FAILURE CODE
