Seat Temperature Element: Diagrams

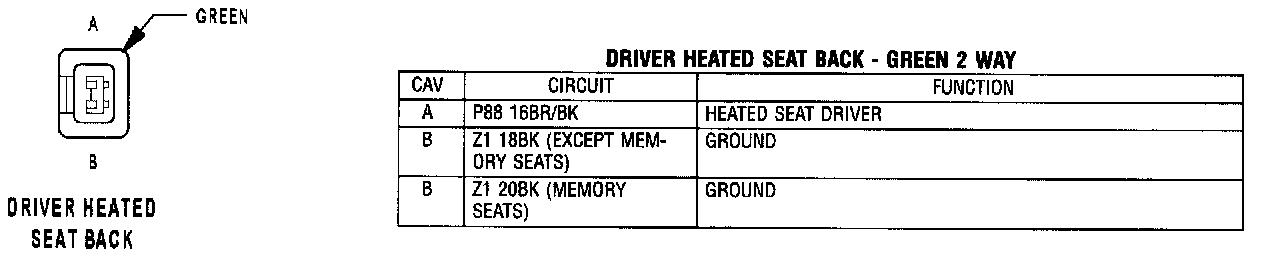

Driver Heated Seat Back:

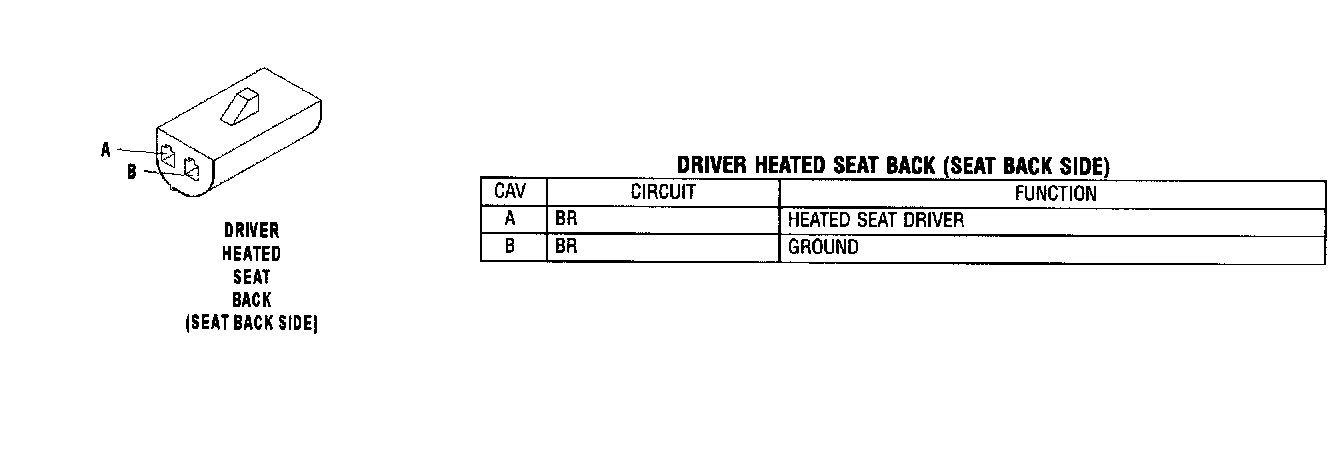

Driver Heated Seat Back (Seat Back Side):

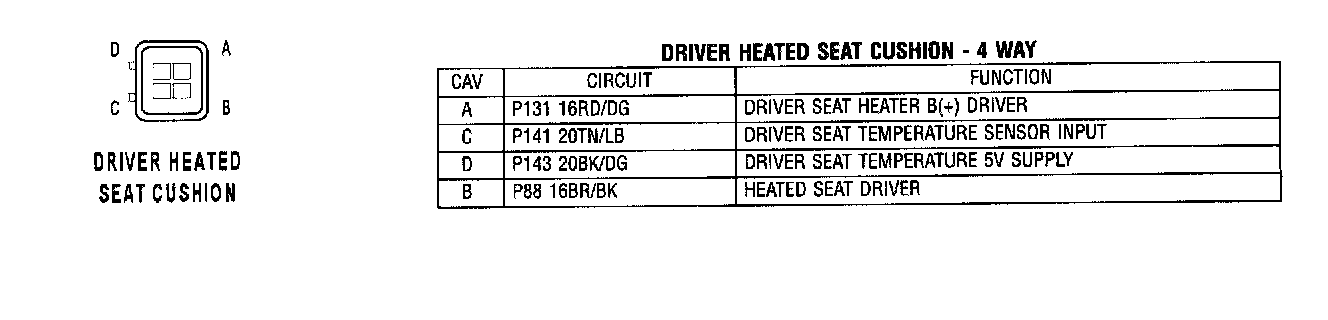

Driver Heated Seat Cushion:

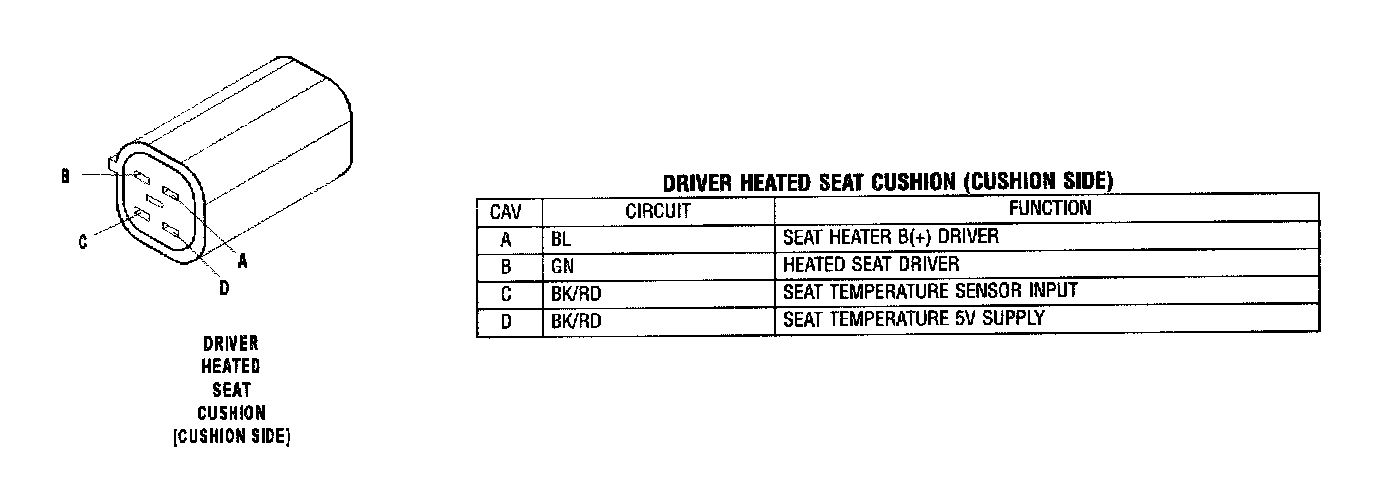

Driver Heated Seat Cushion (Cushion Side):

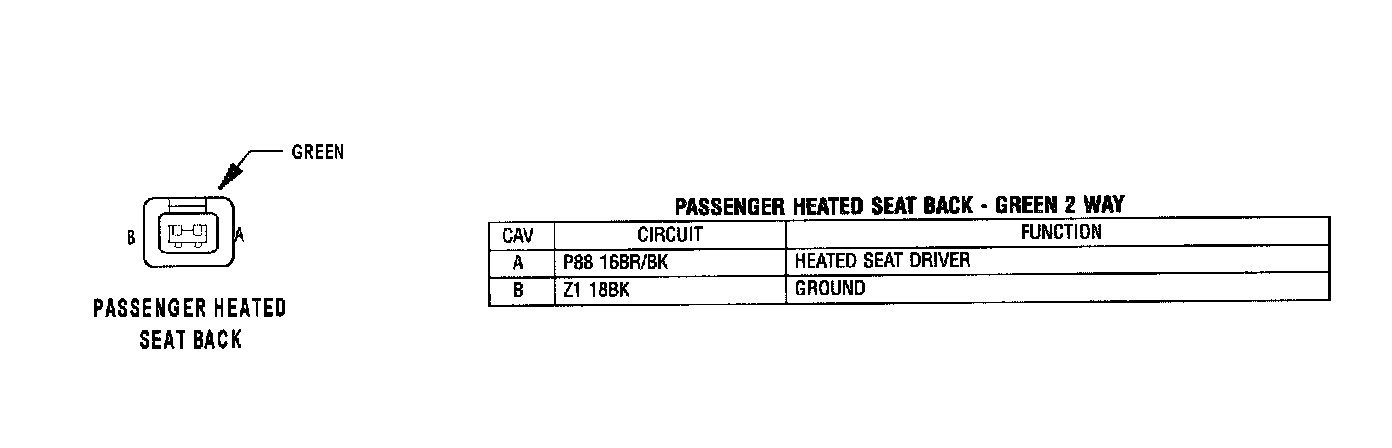

Passenger Heated Seat Back:

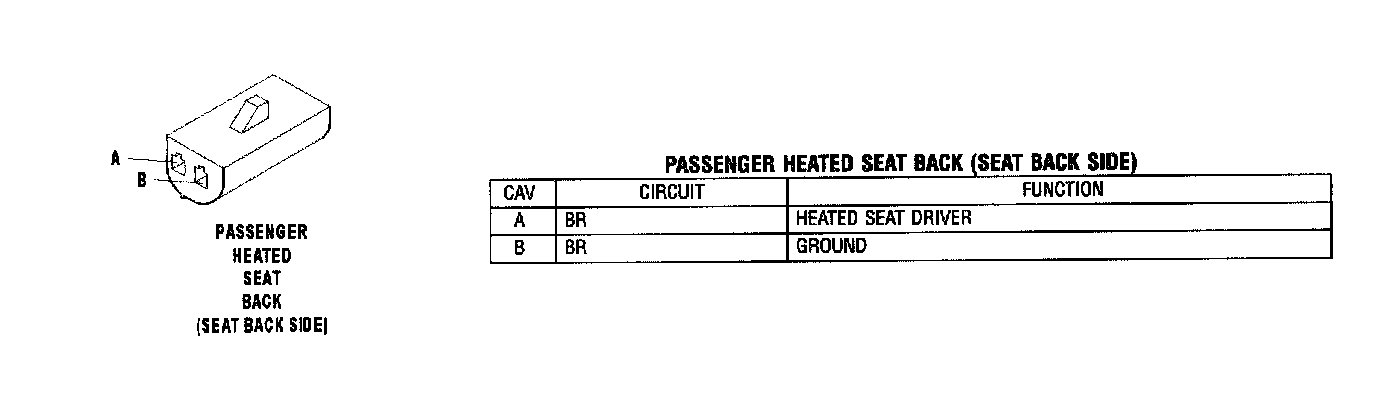

Passenger Heated Seat Back (Seat Back Side):

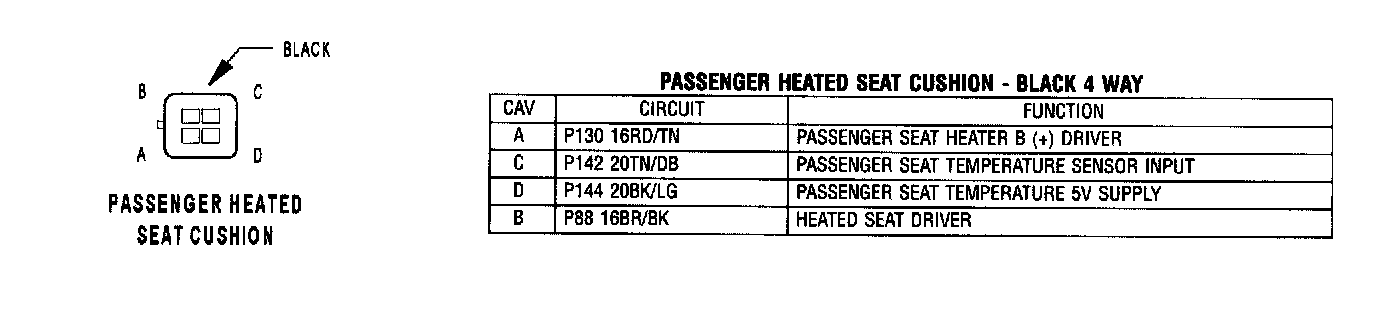

Passenger Heated Seat Cushion:

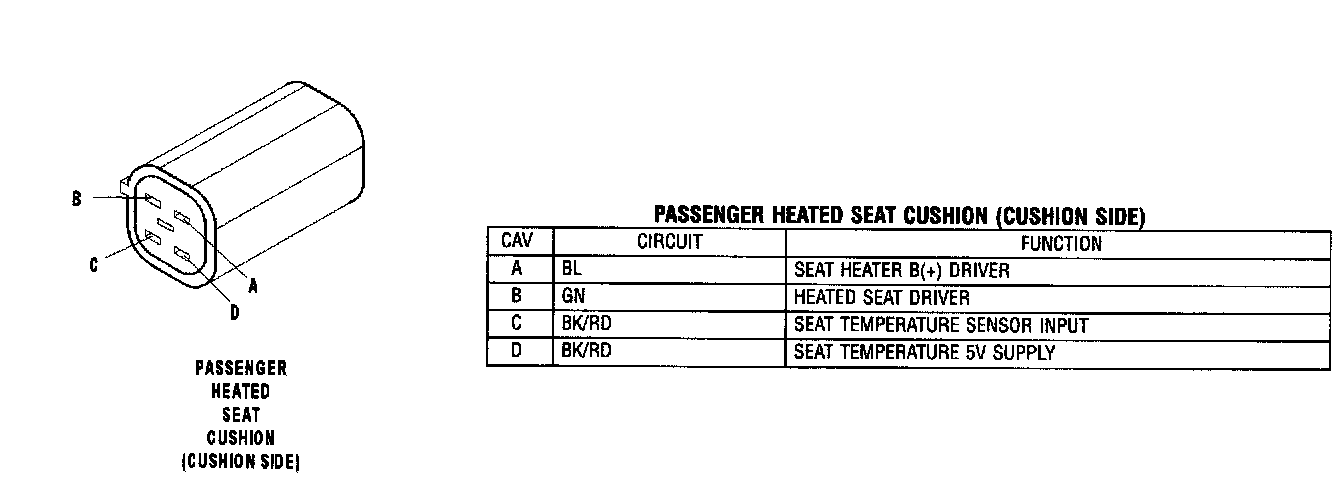

Passenger Heated Seat Cushion (Cushion Side):
