Infinity II System

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.

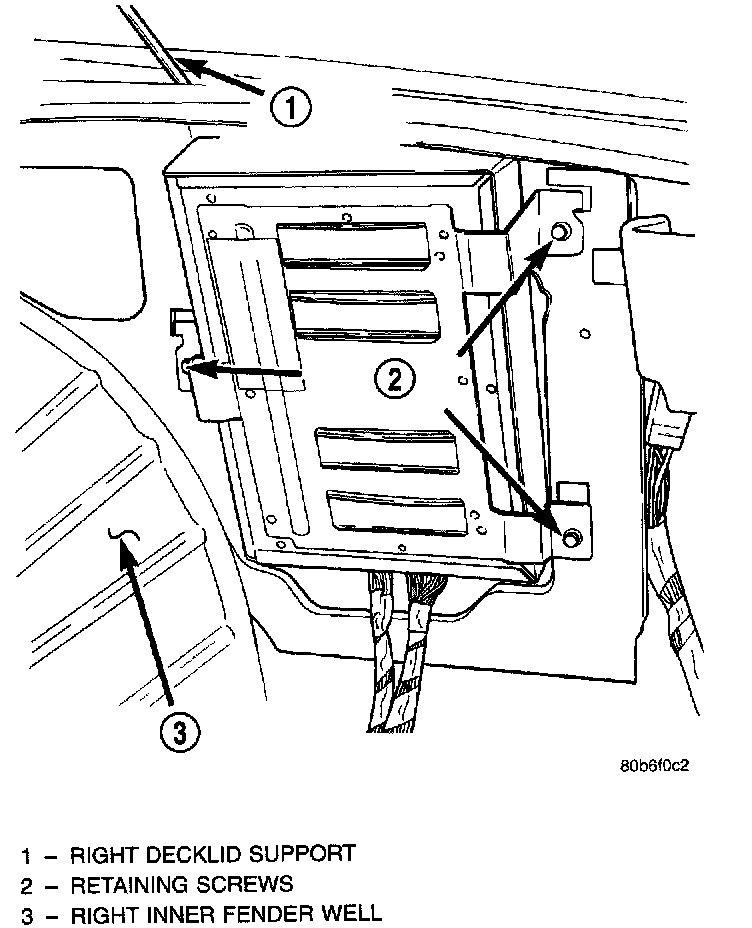

Infinity II Remote Amplifier Location:

2. Inside trunk, pull the trunk liner aside (right quarter panel passenger side).
3. Remove three retaining screws.
4. Disconnect two wire connectors.
5. Remove remote amplifier from vehicle.

INSTALLATION
For installation, reverse the above procedures.
