Amplifier: Description and Operation

REMOTE AMPLIFIER

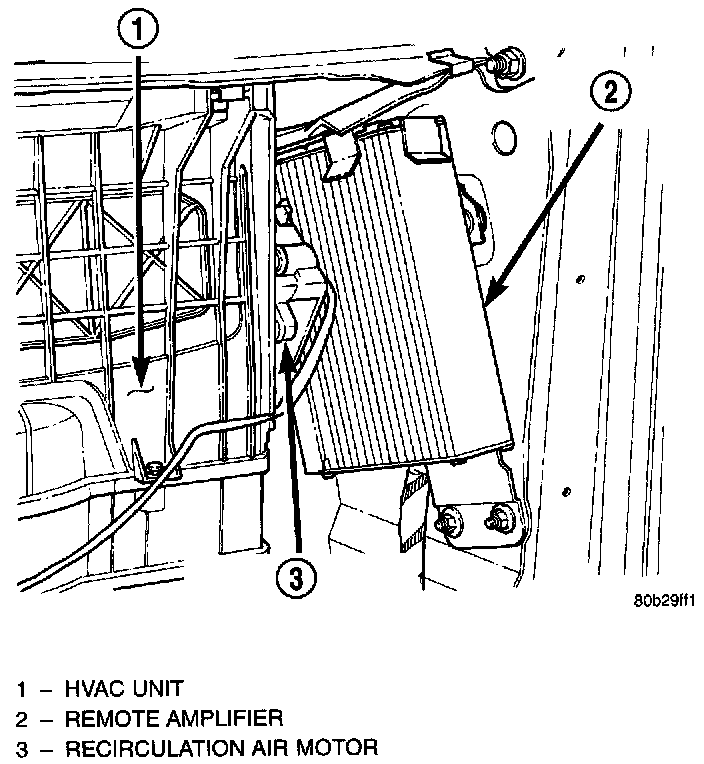

Midline/Infinity/Remote Amplifier Location:

MIDLINE AND INFINITY I SYSTEM
The amplifier is located in the right front cowl panel.

Infinity II Remote Amplifier Location:

INFINITY II SYSTEM
The amplifier is located beneath the trunk liner covering the right quarter inner panel.

For specific operation of each individual system, refer to the vehicles owners manual, Audio System Operation Manual.

When the radio system is ON and all or some speakers are not operating or have a noise distortion, refer to the diagnostic tests.
