P0740

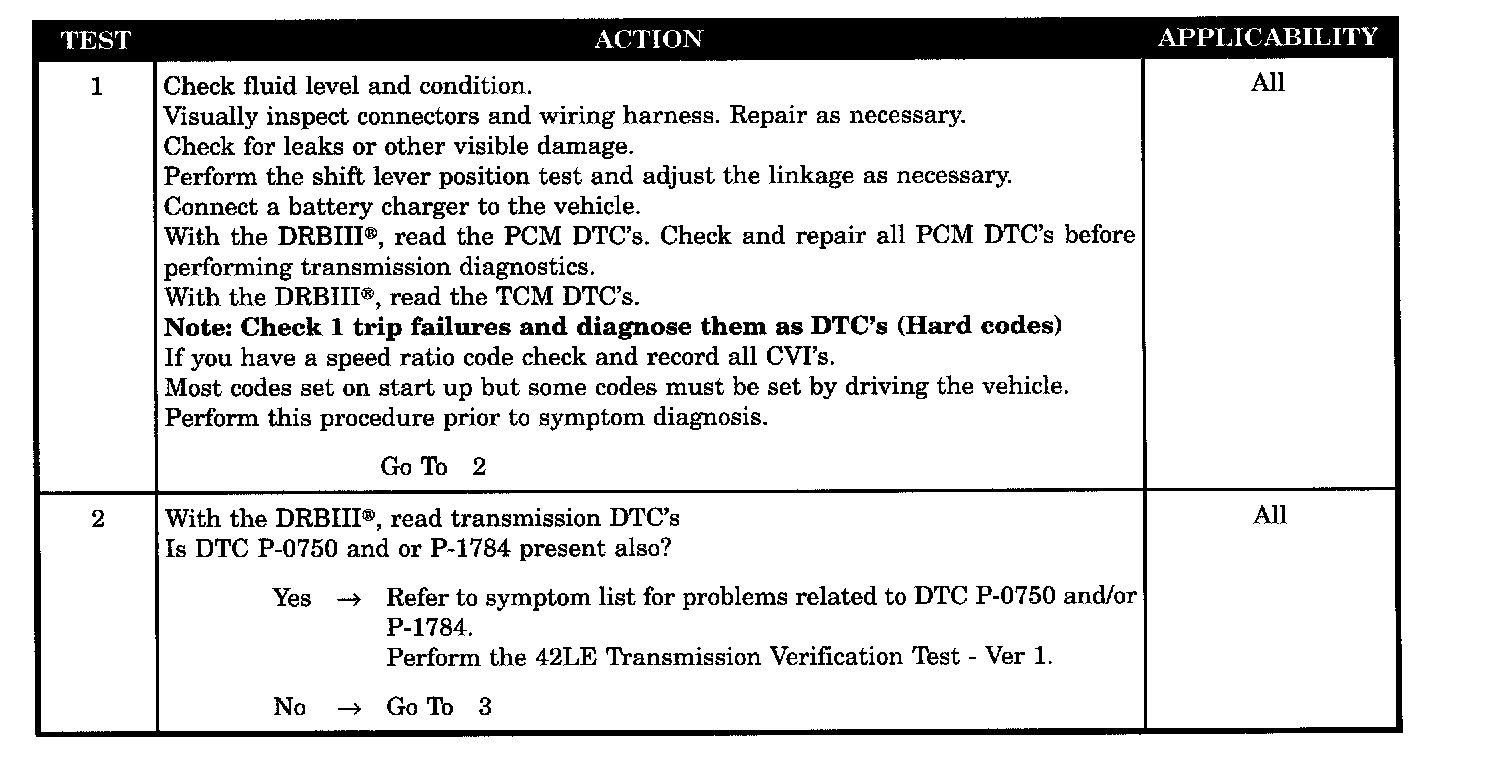

Test 1 Through 2:

Test 3 Through 6:

SYMPTOM:
P0740-TORQUE CONVERTER CLUTCH CONTROL CIRCUIT

When Monitored and Set Condition:
P0740-TORQUE CONVERTER CLUTCH CONTROL CIRCUIT

When Monitored:
During Electronically Modulated Converter Clutch (EMCC) Operation.

Set Condition:
A) Transmission must be in EMCC, with input speed > than 1750 RPM. TCC/L-R sol achieves the maximum duty cycle & can't pull engine RPM within 60 RPM of input speed. B) Transmissions is in FEMCC & engine slips TCC > than 100 RPM for 10 seconds.

POSSIBLE CAUSES
RELATED DTC'S PRESENT
INTERMITTENT OPERATION
INCORRECT FLUID LEVEL
INTERNAL TRANSMISSION PROBLEM - TCC OUT OF RANGE
