Instrument Cluster
>>
Low Fuel Indicator Not Operating Properly
Low Fuel Indicator Not Operating Properly

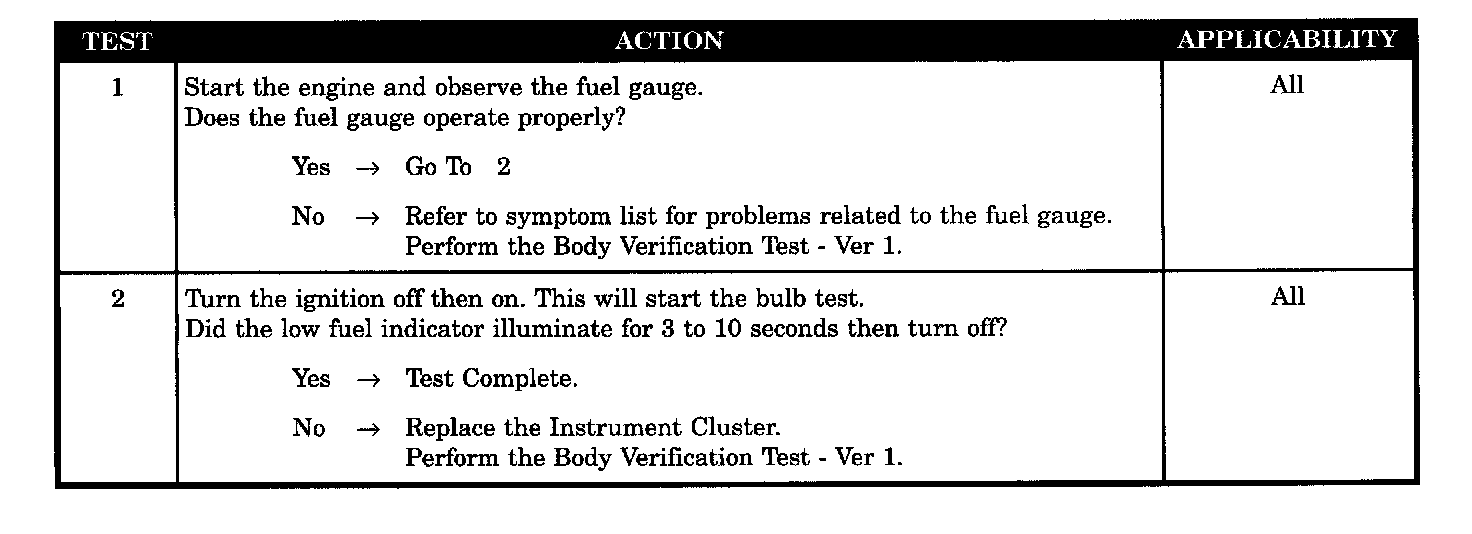

Test 1 - 2:
SYMPTOM
LOW FUEL INDICATOR NOT OPERATING PROPERLY
POSSIBLE CAUSES
-
Check the fuel gauge operation
-
Perform instrument cluster self test
