Fuel Gauge Not Operating Properly

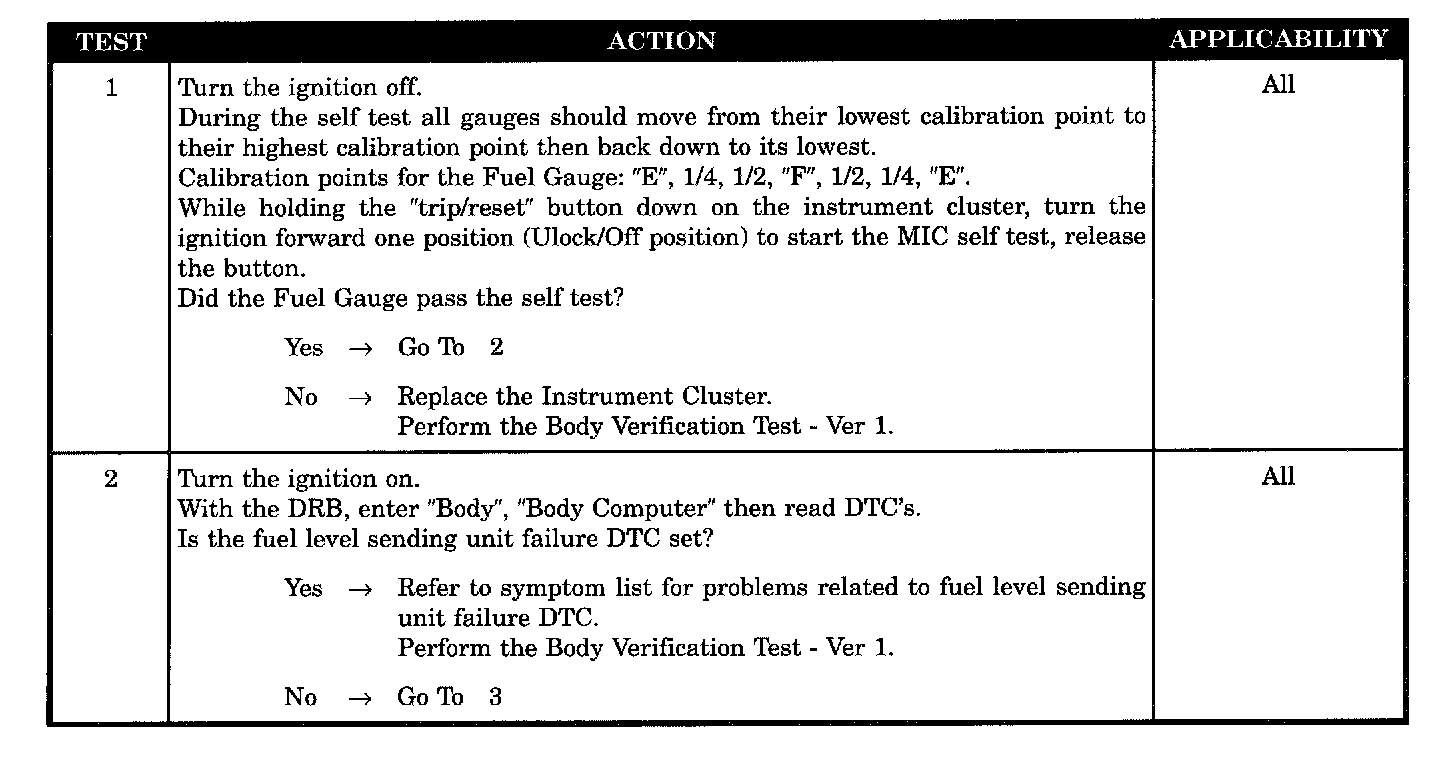

Test 1 - 2:

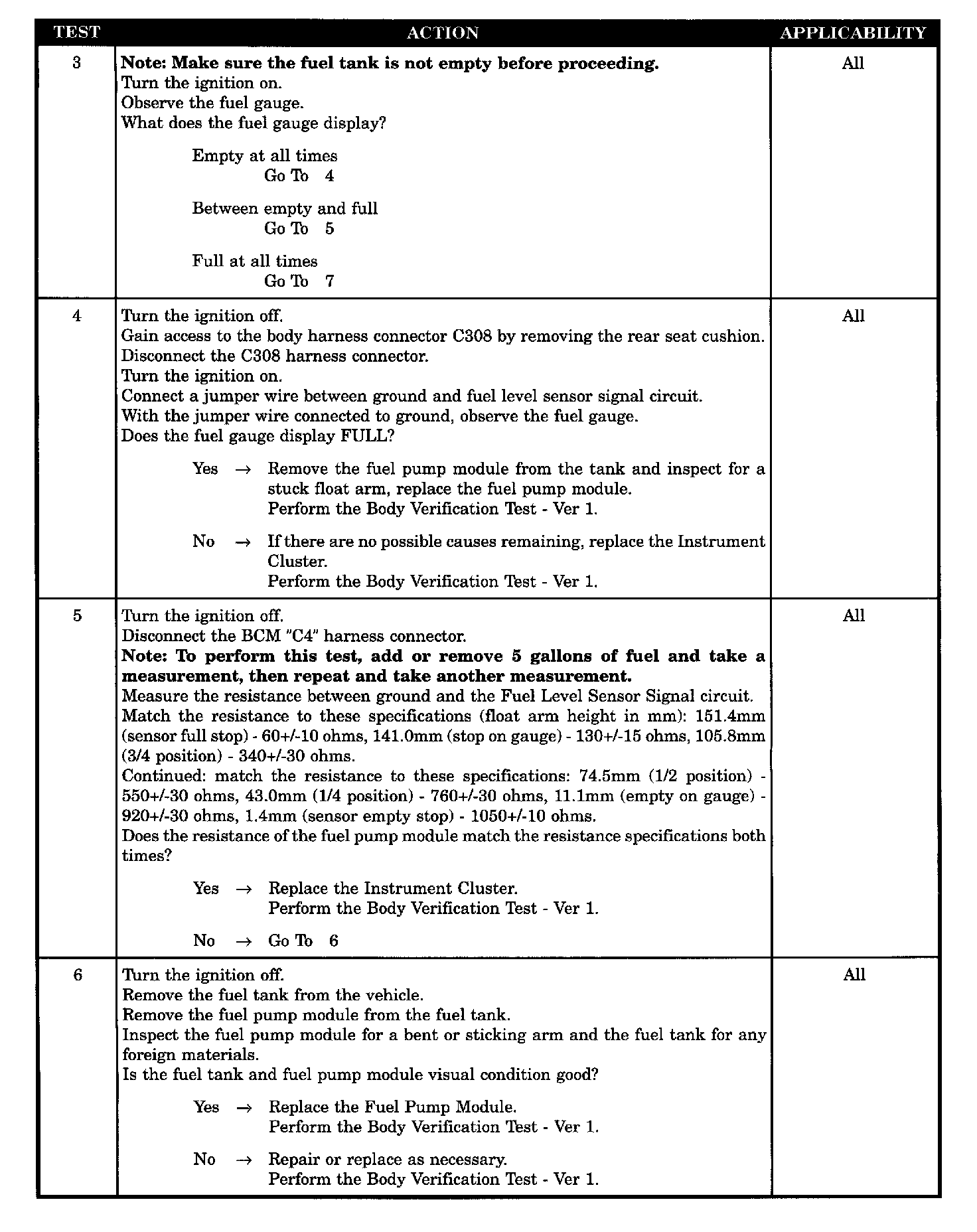

Test 3 - 6:

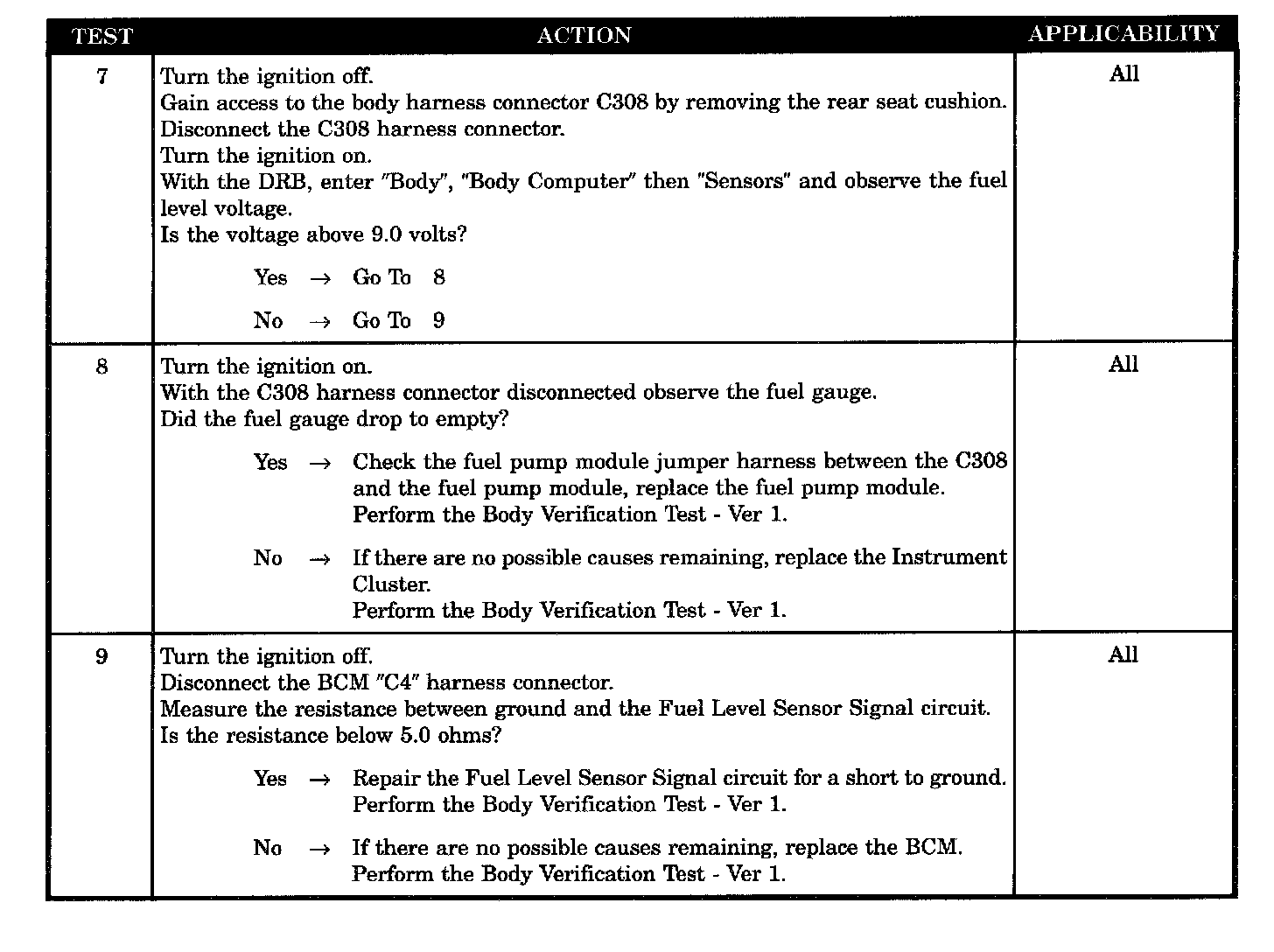

Test 7 - 9:

SYMPTOM
FUEL GAUGE NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Body control module
- Instrument cluster
- Instrument cluster
- Visual condition not good
- Fuel gauge displays empty
- Inspect the fuel pump module and the fuel tank
- Observe the fuel gauge
- Determine if full gauge is inaccurate
- Fuel level sensor signal circuit shorted to ground
- Instrument cluster self test
- Check for any body control module DTCS
