Airbag Warning Indicator Not Operating Properly

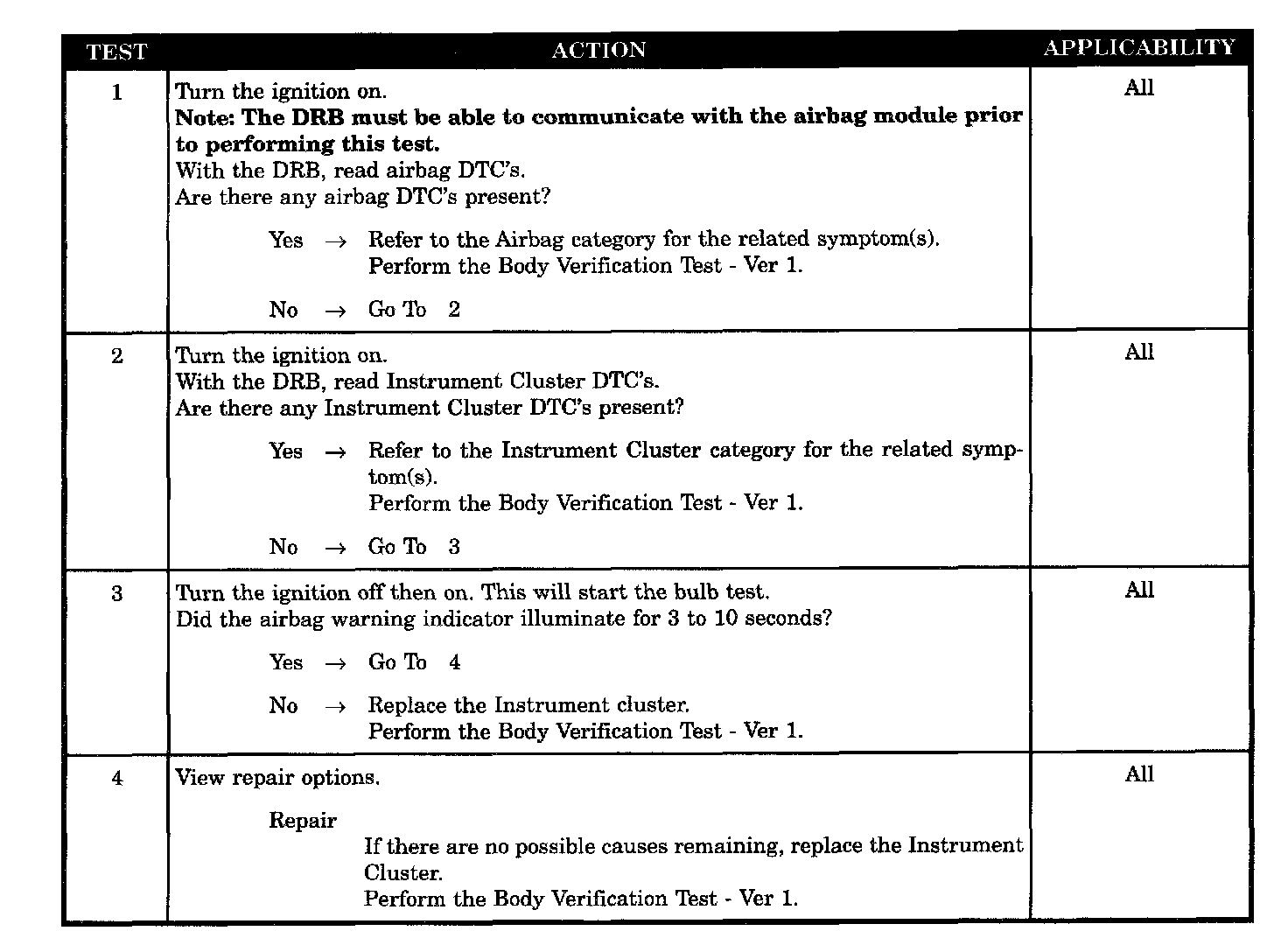

Test 1 - 4:




SYMPTOM
AIRBAG WARNING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Airbag trouble codes
- Instrument cluster
- Other instrument cluster DTC'S
- Perform instrument cluster self test
