Home >> Chrysler >> 2000 >> Cirrus L4-2.4L VIN X >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Torque Specifications >> Intake Manifold

Intake Manifold

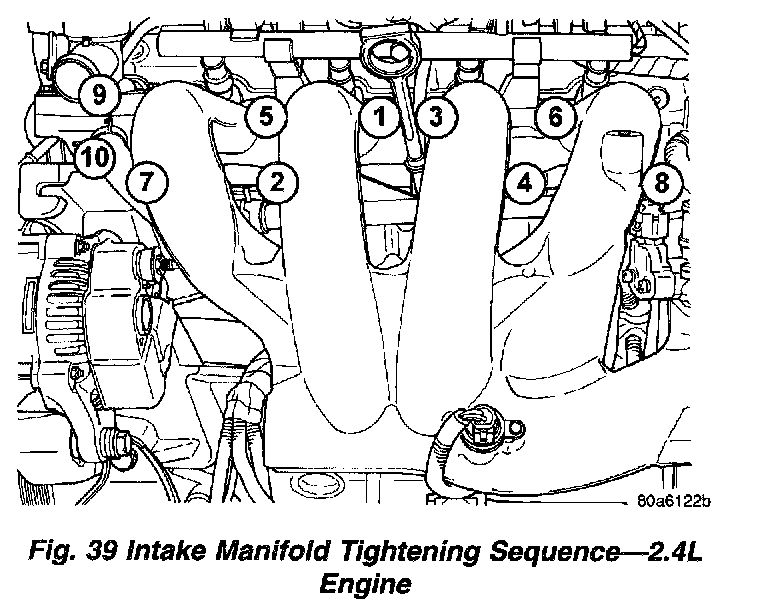

Tighten fasteners to 12 Nm (105 in. lbs.) using sequence shown.
