Seat Belt Rear Inboard

SEAT BELT - REAR INBOARD

REMOVAL

1. Remove rear seat cushion.

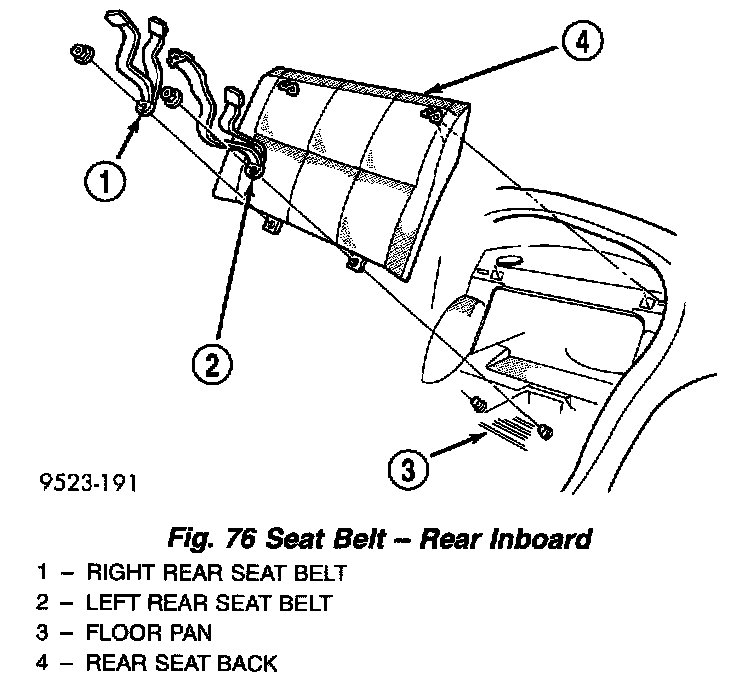

Fig. 76:

2. Remove nut attaching seat belt to floor (Fig.76).
3. Remove seat belt from vehicle.

INSTALLATION

1. Place seat belt in position.
2. Install nut attaching seat belt to floor. Tighten nut to 40 N.m (350 in.lbs.) torque.
3. Install rear seat cushion.
