EGR Tube: Service and Repair

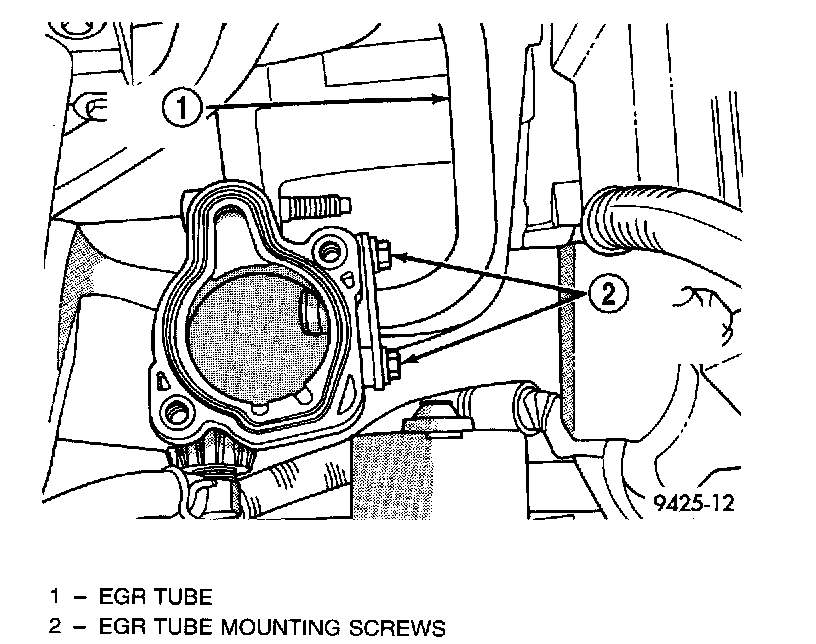

EGR System:

The EGR tube attaches to the intake manifold plenum below the throttle body and to the EGR valve.

EGR Tube Stud Bolts:

REMOVAL
1. Remove screws attaching EGR tube to intake manifold.
2. Remove EGR tube to EGR valve screws.
3. Remove EGR tube. Clean gasket surfaces. Discard old gasket. If necessary, clean EGR passages.

INSTALLATION
1. Loosely install the EGR tube and fasteners with new gaskets.
2. Tighten the EGR tube to intake manifold plenum screws to 11 Nm (95 in. lbs) torque.
3. Tighten the EGR tube to EGR valve screws to 11 Nm (95 in. lbs.) torque.
