Intake Manifold

WARNING: RELEASE FUEL SYSTEM PRESSURE BEFORE SERVICING SYSTEM COMPONENTS. SERVICE VEHICLES IN WELL VENTILATED AREAS AND AVOID IGNITION SOURCES. NEVER SMOKE WHILE SERVICING THE VEHICLE.

REMOVAL
1. Perform Fuel Pressure Release procedure before attempting any repairs.

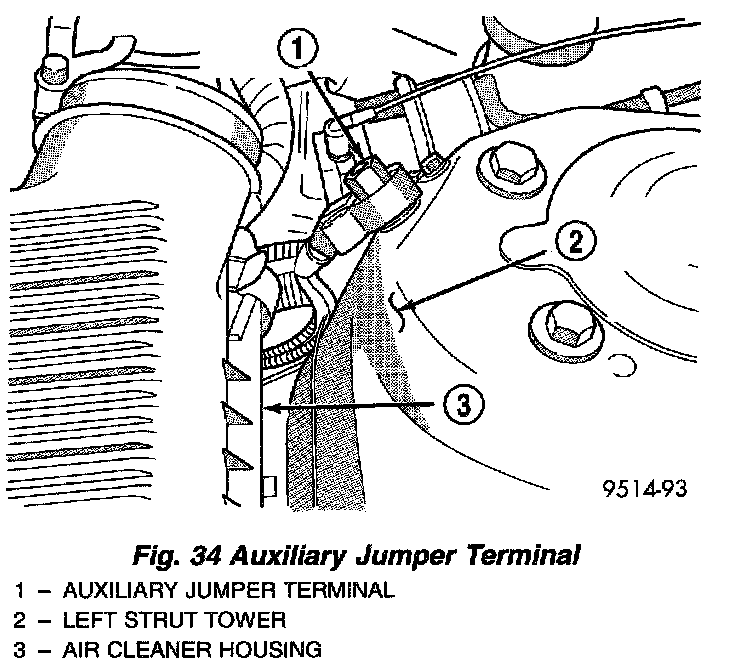

Fig. 34

2. Disconnect negative cable from auxiliary jumper terminal (Fig. 34).
3. Remove Air Inlet Resonator.
Disconnect the fuel supply line quick connect at the fuel rail assembly.

WARNING: WRAP SHOP TOWELS AROUND HOSE TO CATCH ANY GASOLINE SPILLAGE.

5. Remove fuel rail assembly attaching screws and remove fuel rail assembly from engine. Cover injector holes with a suitable covering.

CAUTION: Do not set fuel injectors on their tips, as damage may occur to the injectors.

6. Remove throttle and speed control cables from throttle lever and bracket.

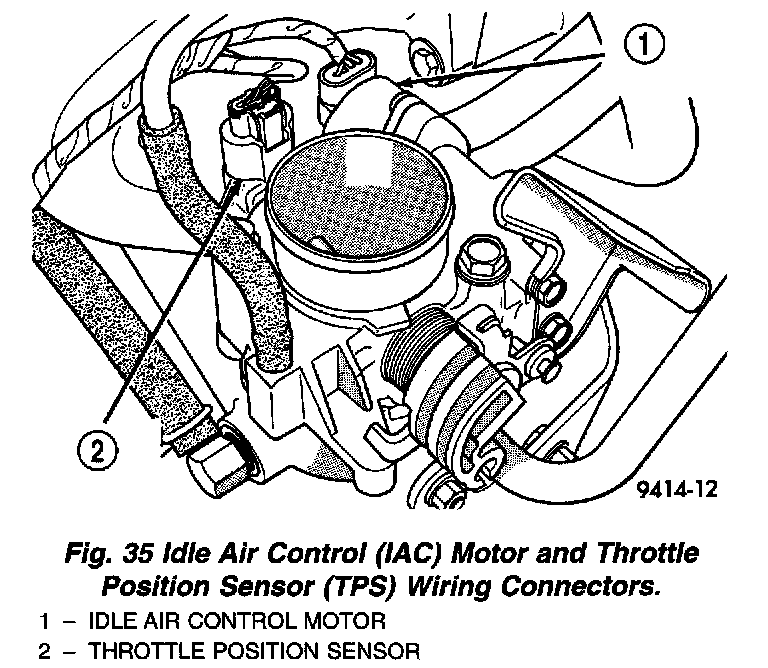

Fig. 35

7. Disconnect Idle Air Control (IAC) motor and Throttle Position Sensor (TPS) wiring connectors (Fig. 35).

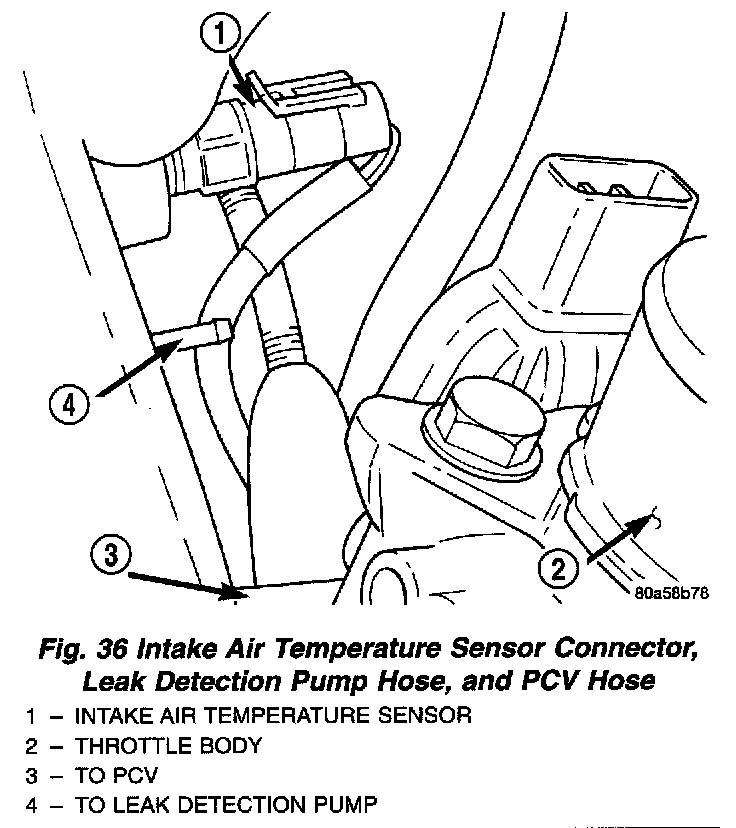

Fig. 36

8. Disconnect intake air temperature sensor, leak detection pump and PCV hoses (Fig. 36).





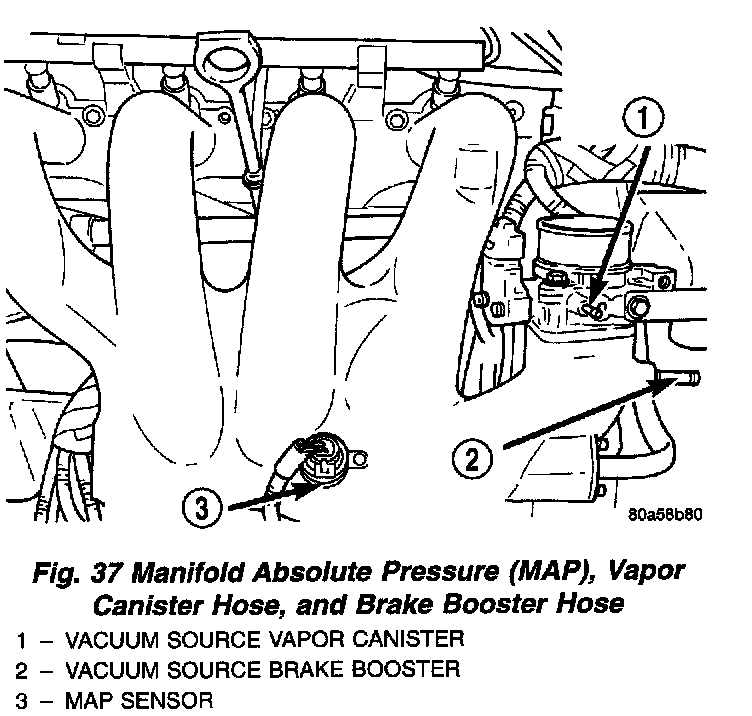

Fig. 37

9. Disconnect intake air temperature electrical connector. Disconnect leak detection pump and PCV hoses (Fig. 37).
10. Remove transaxle to throttle body support bracket fasteners at the throttle body and loosen the fastener at the transaxle end.

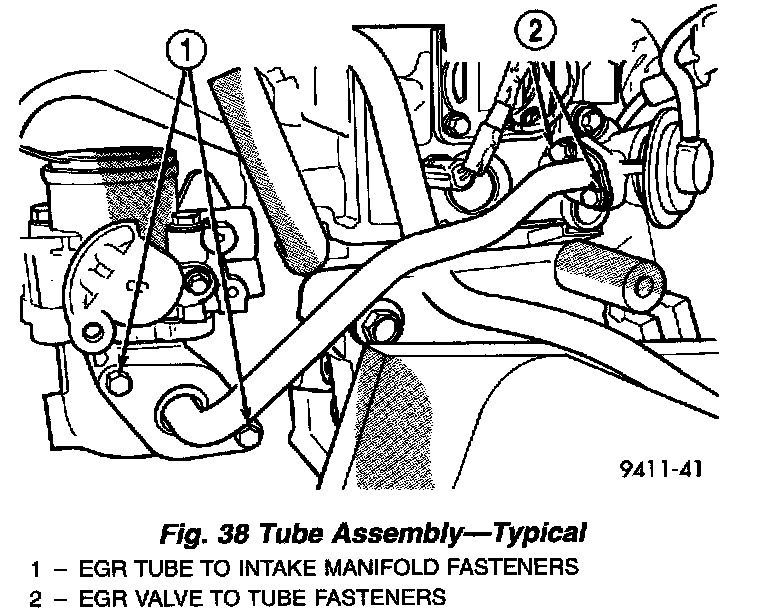

Fig. 38

11. Remove EGR tube bolts at the valve and at the intake manifold (Fig. 38). Remove tube from engine and discard gaskets.





Fig. 39

12. Remove intake manifold fasteners (Fig. 39). Remove intake manifold.

INSTALLATION
1. Install new intake manifold and gasket. Tighten fasteners to 12 Nm (105 in. lbs.) in sequence shown in image (Fig. 39).
2. Remove covering from fuel injector holes and insure the holes are clean. Install fuel rail assembly to intake manifold. Tighten screws to 23 Nm (200 in. lbs.).
3. Inspect quick connect fittings for damage, replace if necessary. Lubricate tube with clean engine oil. Connect fuel supply hose to fuel rail assembly. Check connection by pulling on connector to insure it locked into position.
4. Install throttle body. Tighten fastener to 22 Nm (200 in. lbs.). Install transaxle to throttle body support bracket and tighten to 12 Nm (105 in. lbs.) at the throttle body first. Next tighten the bracket at the transaxle.
5. Connect PCV, leak detection pump hoses, and intake air temperature sensor wiring connectors.
6. Connect Manifold Absolute Pressure (MAP) electrical connector, vapor canister hose, and brake booster hose.
7. Connect knock sensor electrical and starter relay connectors. Connect wiring harness to intake manifold tab.
a. Connect Idle Air Control (IAC) motor and Throttle Position Sensor (TPS) wiring connectors.
9. Install throttle and speed control cables to bracket. Connect cables to the throttle lever. Refer to Throttle Body Installation procedure.
10. Position new EGR tube gaskets and loosely assemble the EGR tube onto valve and intake manifold. First tighten tube fasteners at the EGR valve to 11 Nm (95 in. lbs.). Then, tighten the intake manifold side fasteners to 11 Nm (95 in. lbs.).
11. Connect negative cable to auxiliary jumper terminal.
12. With the DRB scan tool use ASD Fuel System Test to pressurize system to check for leaks.

CAUTION: When using the ASD Fuel System Test, the Auto Shutdown (ASD) relay will remain energized for 7 minutes or until the ignition switch is turned to the OFF position, or Stop All Test is selected.
