Valve Cover: Service and Repair

REMOVAL

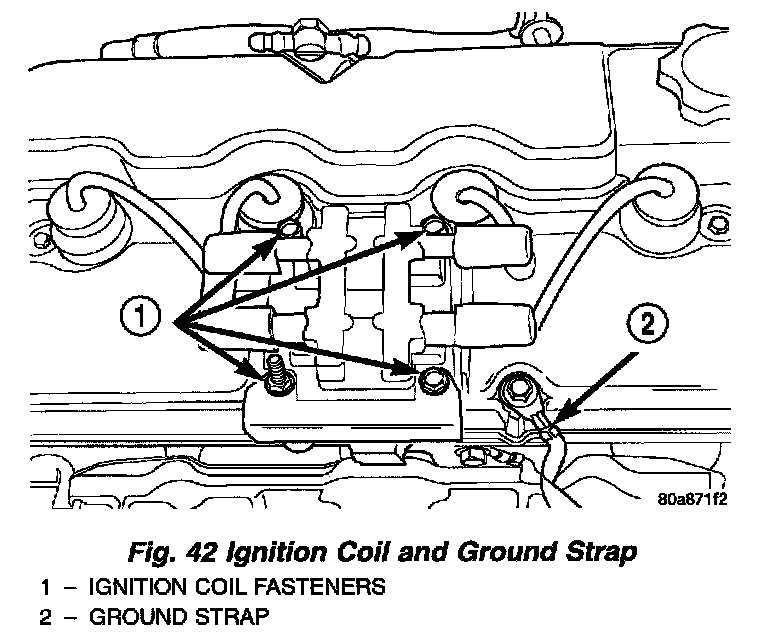

Fig. 42

1. Remove ignition coil and plug wires. Remove ground strap (Fig. 42).
2. Remove the cylinder head cover fasteners.
3. Remove cylinder head cover from cylinder head.

INSTALLATION

NOTE: Replace spark plug well seals when installing a new cylinder head cover gasket.

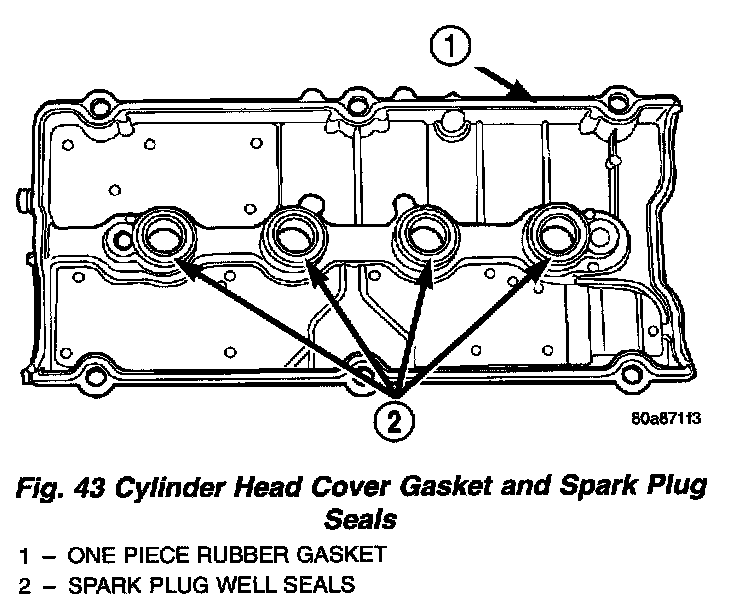

Fig. 43

1. Install new cylinder head cover gaskets and spark plug seals (Fig. 43).

CAUTION: Do not allow oil or solvents to contact the timing belt as they can deteriorate the rubber and cause tooth skipping.

2. Apply Mopar Engine RTV GEN II at the camshaft cap corners and at the top edge of the 1/2 round seal.

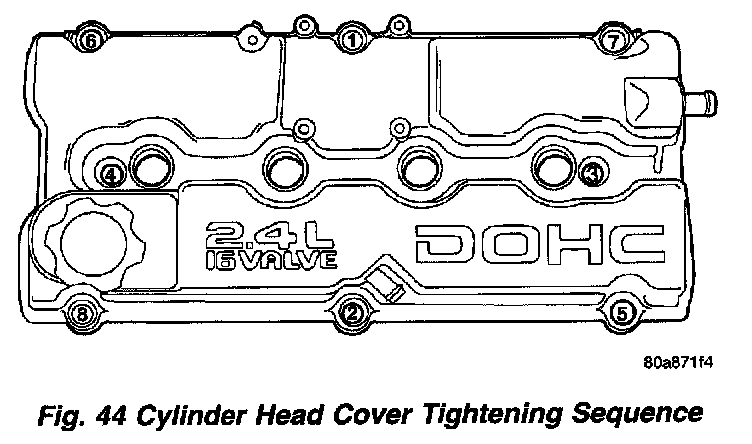

Fig. 44

3. Install cylinder head cover assembly to head and tighten fasteners in sequence shown in (Fig. 44). Using the 3 step torque method:
4. Install ignition coil and plug wires. Tighten fasteners to 12 Nm (105 in. lbs.).
5. Install ground strap.
