Front Seat

FRONT SEAT

REMOVAL

1. Position seat far enough forward to gain access to rear mount bolts on floor.

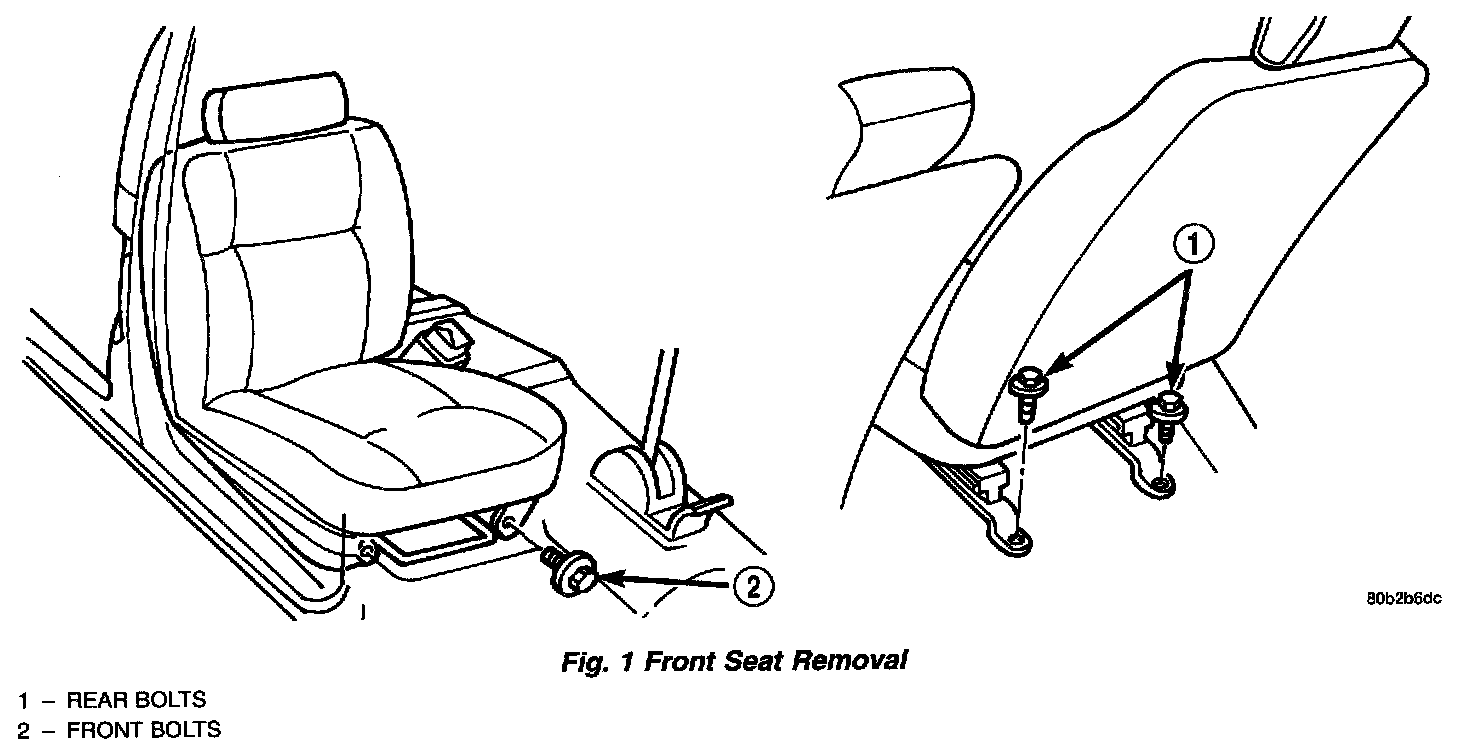

Fig. 1:

2. Remove bolts holding rear of seat track to floor (Fig. 1).
3. Slide seat rearward.
4. Remove bolts attaching front of the seat track to floor kick up.
5. Disconnect negative battery cable, if electrical seat.
6. Disconnect front seat wire harness connector from body harness connector.

CAUTION: Caution should be taken not to handle seat by adjuster release bar when removing spring loaded seat from vehicle.

7. Remove front seat from vehicle.

INSTALLATION

CAUTION: Do not handle by seat adjuster release bar.

NOTE: Ensure that the seat tracks are rearward. Ensure the seat tracks on the right and left are in equal latch positions.

1. Place front seat in position in vehicle.
2. Connect front seat wire harness connector to body harness connector.
3. Install bolts to attach front of seat track to the floor kick up. Tighten bolts to 61 N.m (45 ft.lbs.) torque.
4. Slide seat forward and install bolts attaching rear of seat track to the floor. Tighten bolts to 61 N.m (45 ft.lbs.) torque.
5. Verify front seat operation.
