Door Lock Cylinder: Service and Repair

FRONT DOOR LOCK CYLINDER

REMOVAL

1. Remove front door outside handle.
2. Disengage clip attaching lock linkage to back of lock cylinder.
3. Remove linkage from lock cylinder.

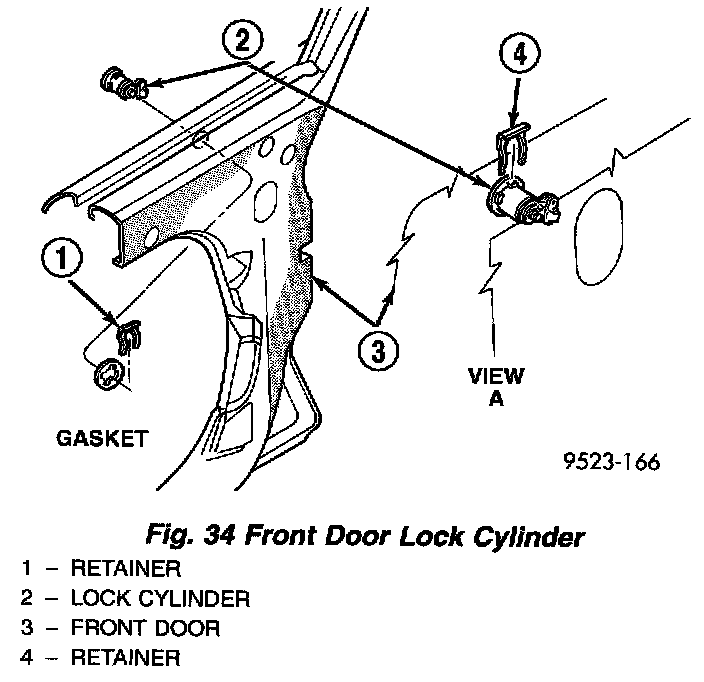

Fig. 34:

4. Remove retainer attaching lock cylinder to outer door panel (Fig. 34).
5. Remove lock cylinder from vehicle.

INSTALLATION

1. Place lock cylinder into position.
2. Install retainer attaching lock cylinder to outer door panel.
3. Install linkage into lock cylinder.
4. Engage clip attaching lock linkage to back of lock cylinder.
5. Install front door outside handle.
