Sun Visor

SUN VISOR

REMOVAL

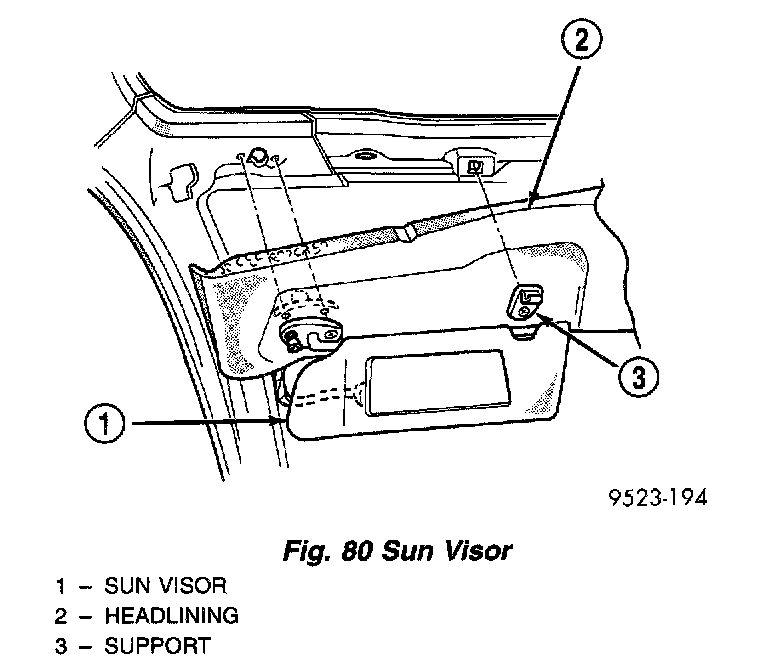

Fig. 80:

1. Disengage sun visor from center support (Fig. 80).
2. Remove screws attaching sun visor to roof header.
3. Remove sun visor from header.
4. If equipped, disconnect wire connector from body harness.
5. Remove sun visor from vehicle.

INSTALLATION

1. Place sun visor into position.
2. If equipped, connect wire connector to body harness.
3. Install sun visor to header.
4. Install screws attaching sun visor to roof header.
5. Install screws attaching sun visor to roof header.
6. Install screws attaching sun visor to roof header.
7. Connect sun visor from center support.
