Manual Antenna and Mast Replacement

REMOVAL
1. Disconnect and isolate the battery negative remote cable.
2. Inside trunk, pull the right side trunk liner aside.
3. Unplug antenna lead from base of antenna body.
4. Remove antenna mast by unscrewing mast from antenna body.

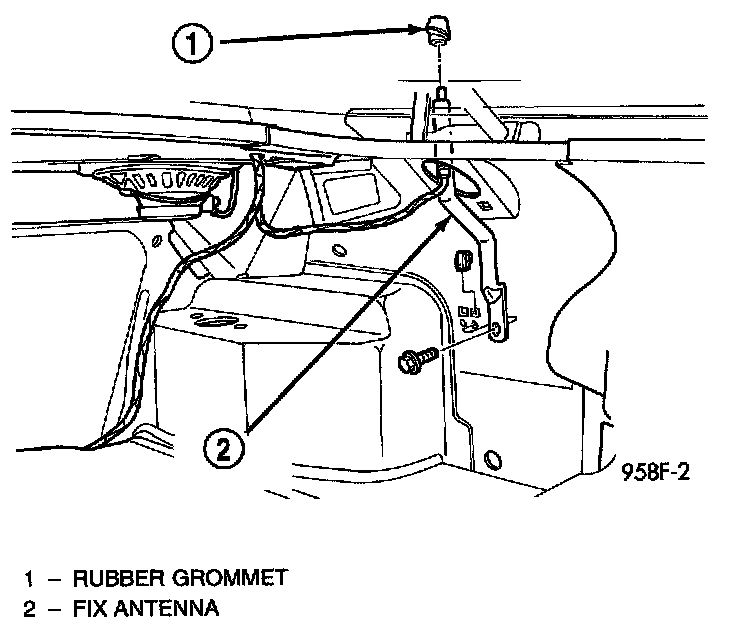

Antenna Mounting Removal:

5. Remove screw from mounting bracket.
6. Pull antenna body down through the rubber grommet.


INSTALLATION
For installation, reverse the above procedures. Check that the grommet locating tab is in-line with the slot in the body before installing antenna Ensure the ball of the antenna body is inside grommet.
