Wiper and Washer Systems: Service and Repair

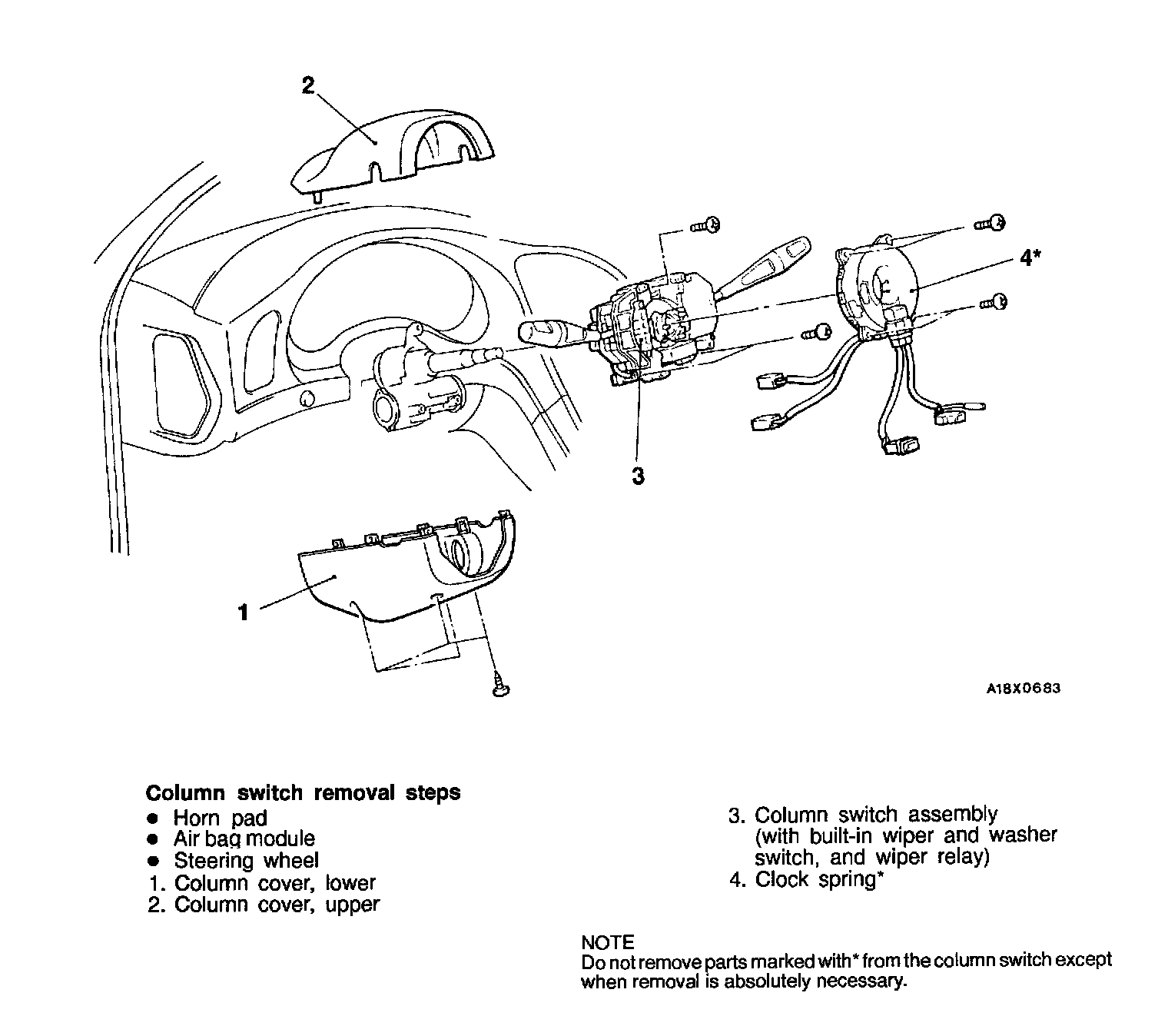

CAUTION: Before removal of air bag module and clock spring, refer to SRS Air Bag Module and Clock Spring.

Removal

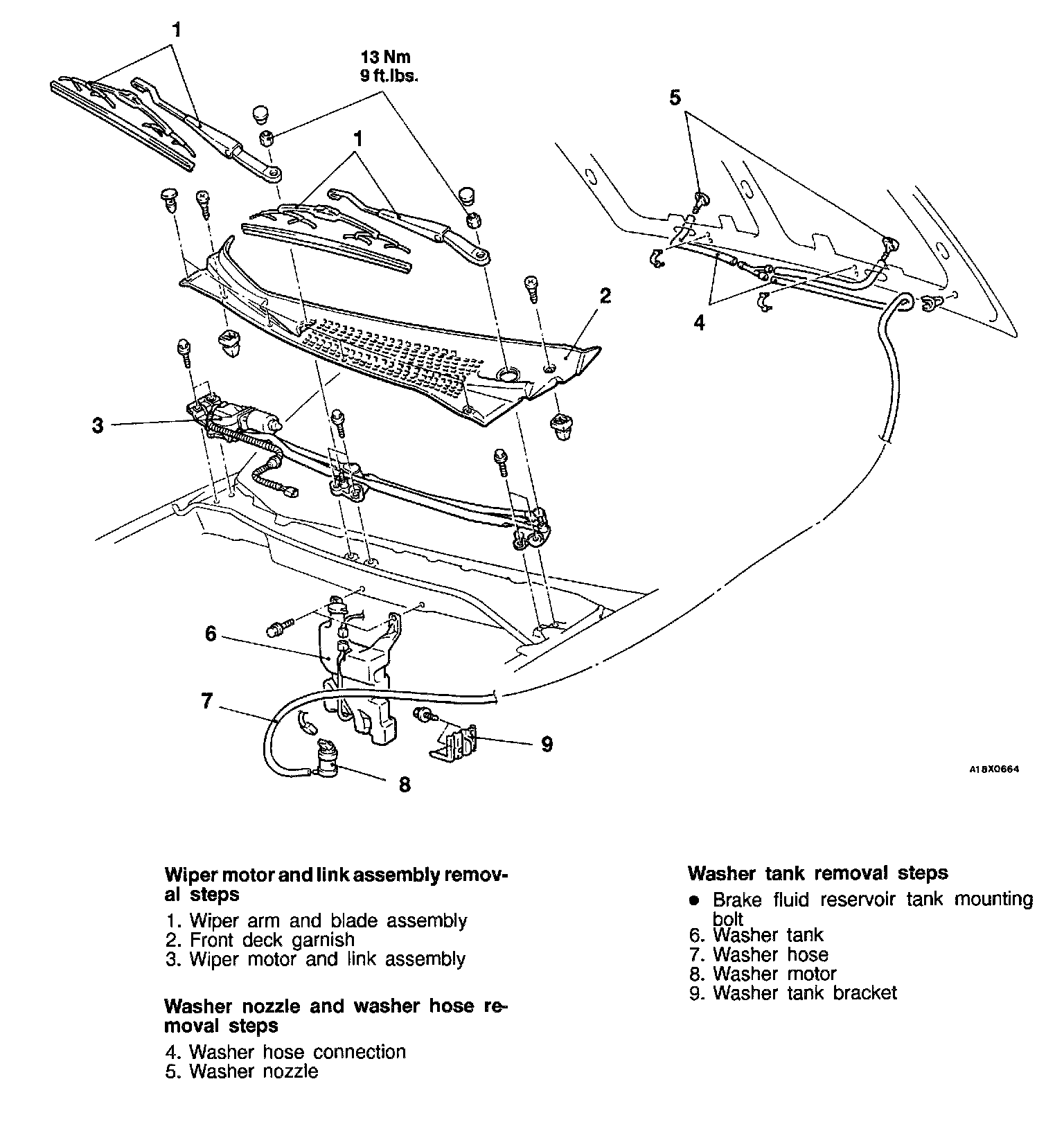

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image and note the following,




Step 1: Wiper Arm And Blade Assembly Installation
Adjust the wiper and blade assembly so that the clearances between the wiper blade edges and the ceramic line are at the standard value.
Standard value:
(A): 47 ± 5 mm (1.85 ± 0.20 in.)
(B): 10 ± 5 mm (0.39 ± 0.20 in.)
