Electrical Diagrams

Power Windows (Part 1 Of 3):

Power Windows Relay
Power Window Main Switch
Power Window Sub Switch
Power Window Motor (Left and Right Side)

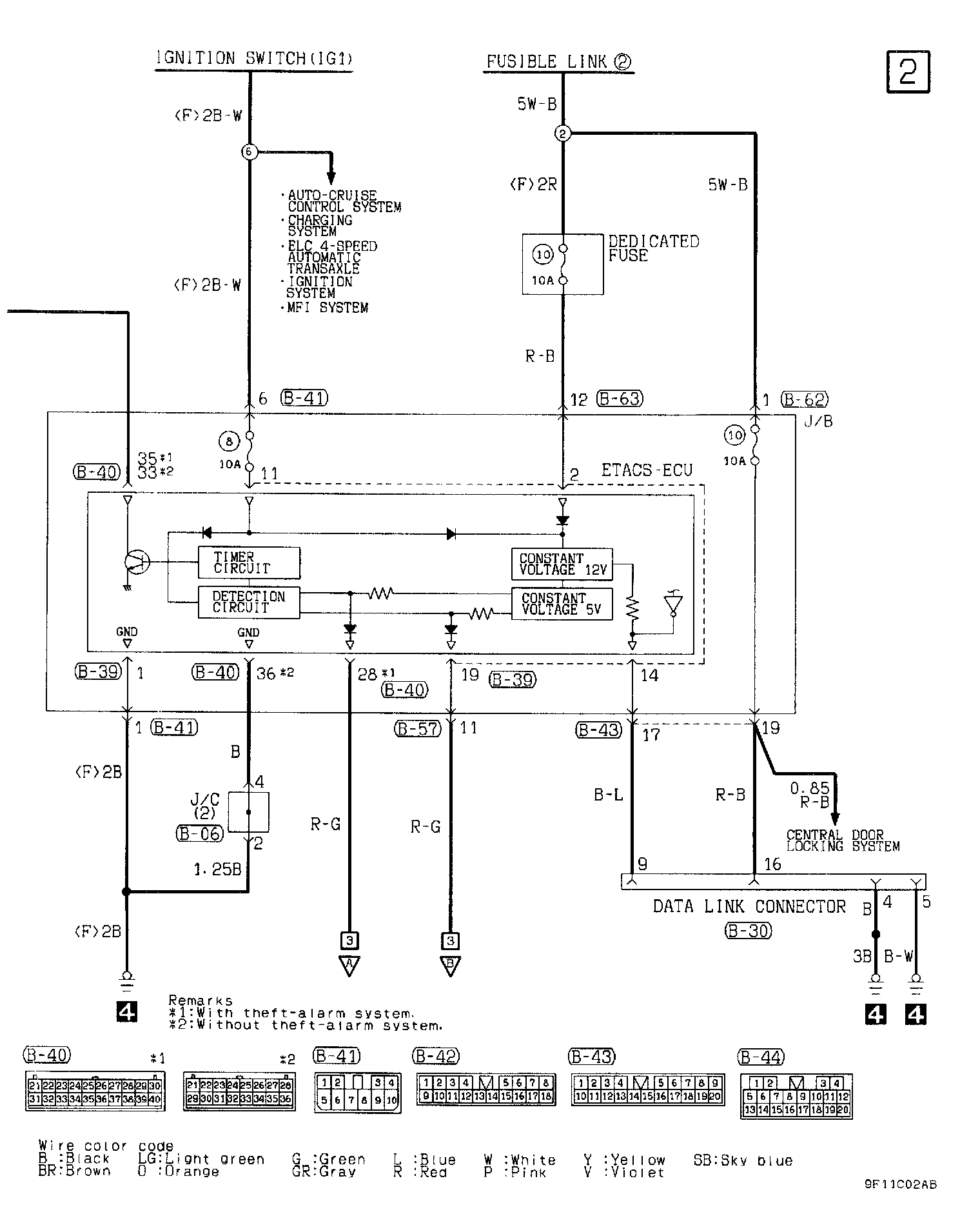

Power Windows (Part 2 Of 3):

Dedicated Fuse
Data Link Connector
J/B
- EATCS-ECU
J/C (2)

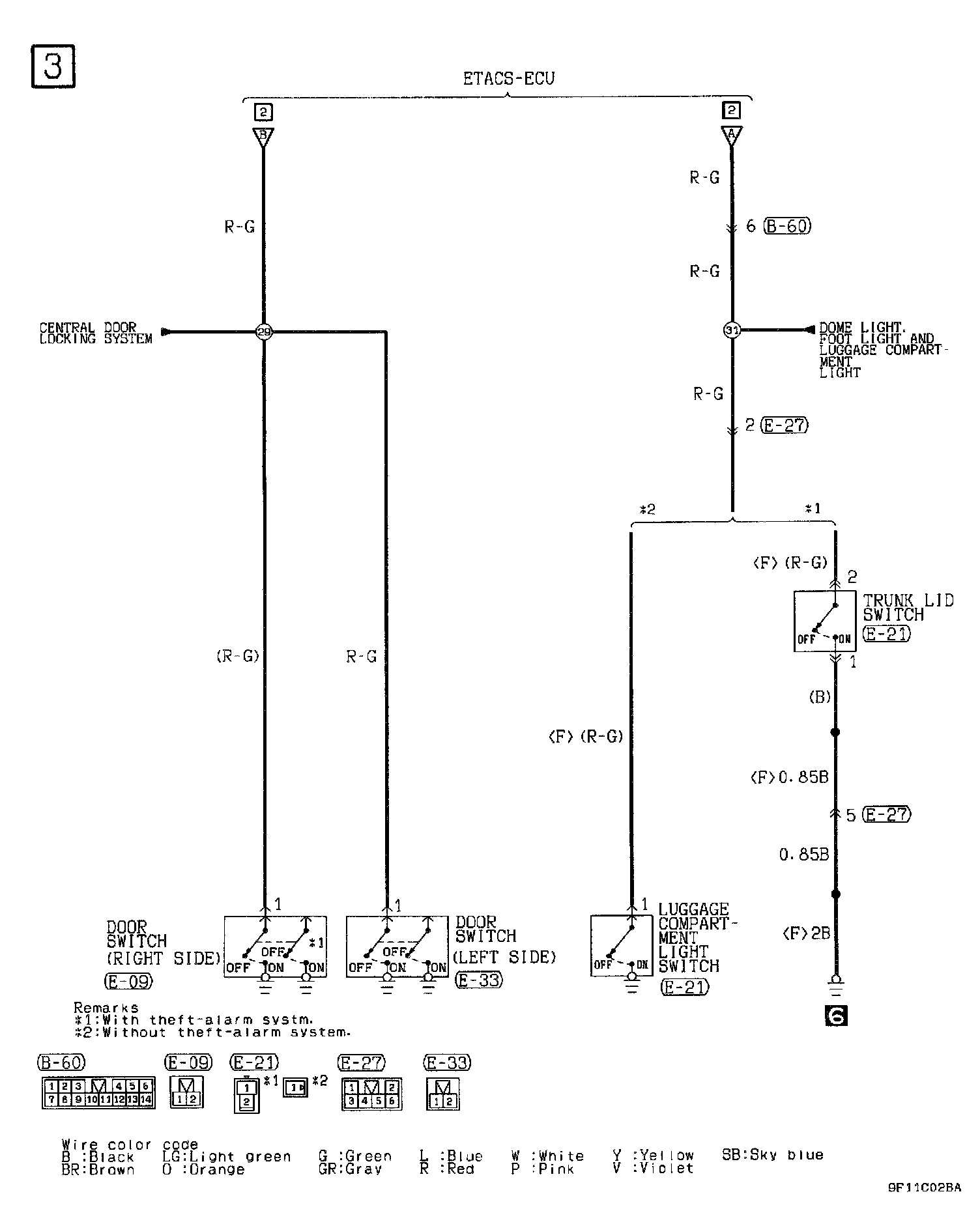

Power Windows (Part 3 Of 3):

Door Switch (Left and Right Side)
Luggage Compartment Light Switch
Trunk Lid Switch
