Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment

Automatic Transmission/Transaxle: Tools and Equipment

SPECIAL TOOLS

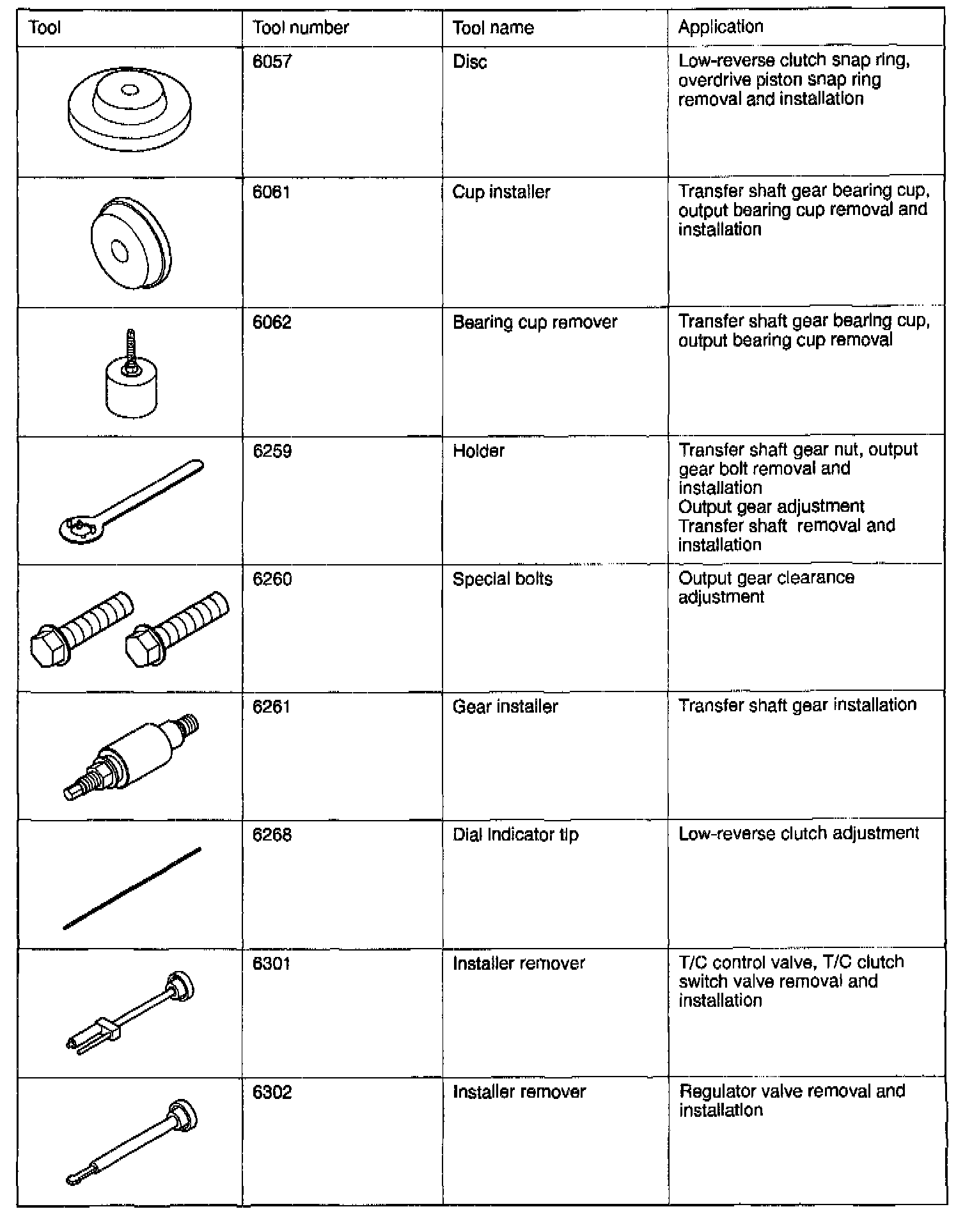

Part 1 Of 7:

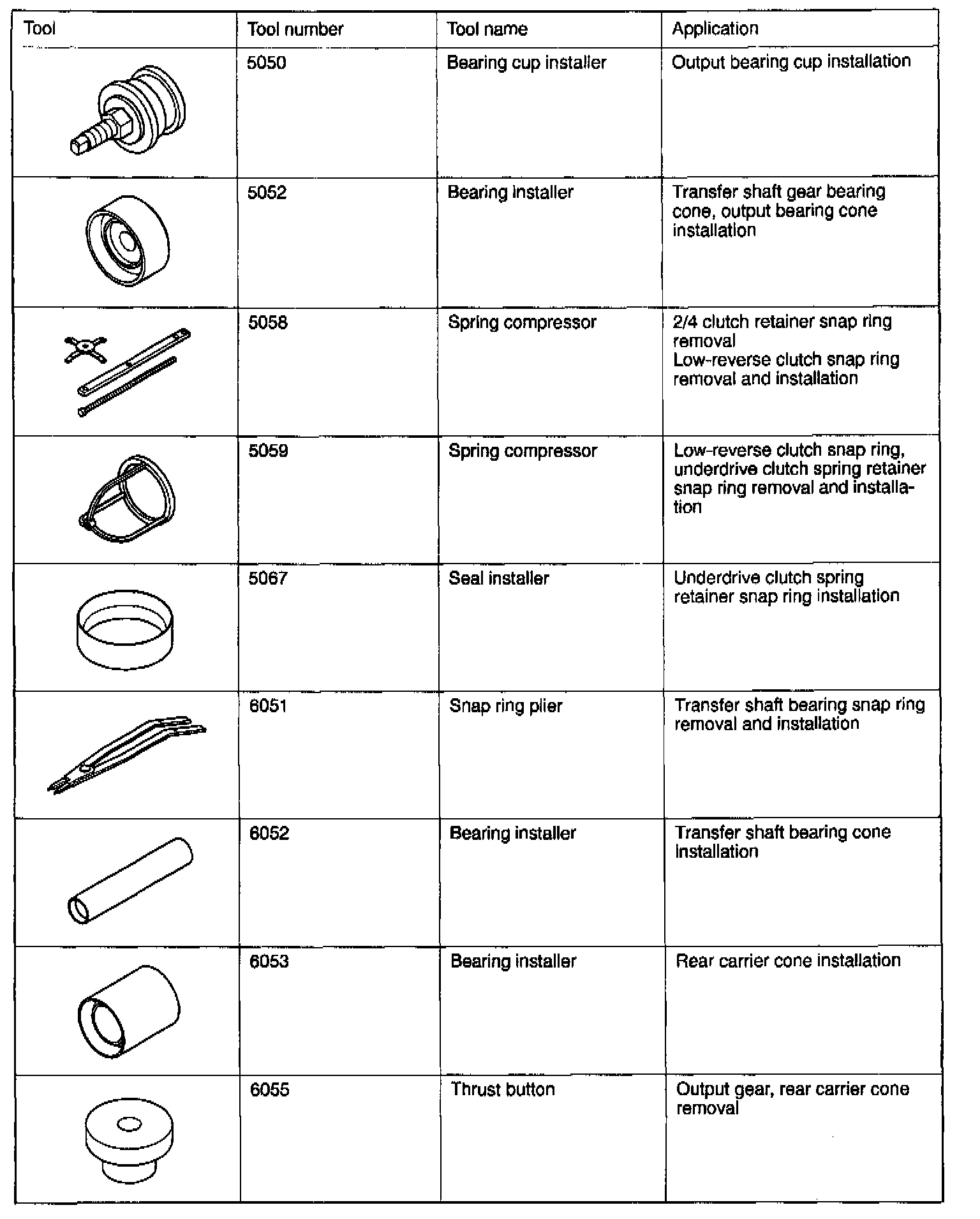

Part 2 Of 7:

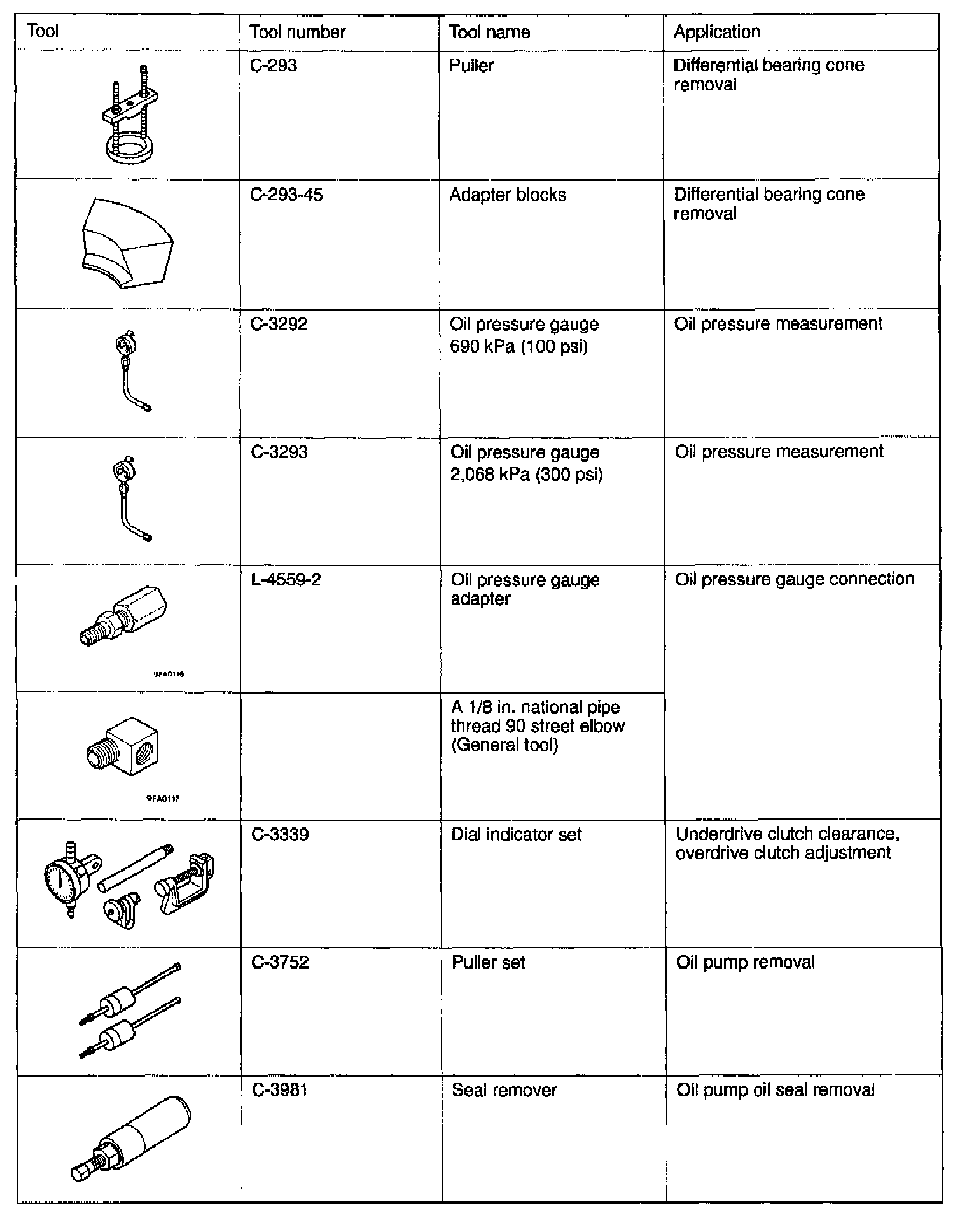

Part 3 Of 7:

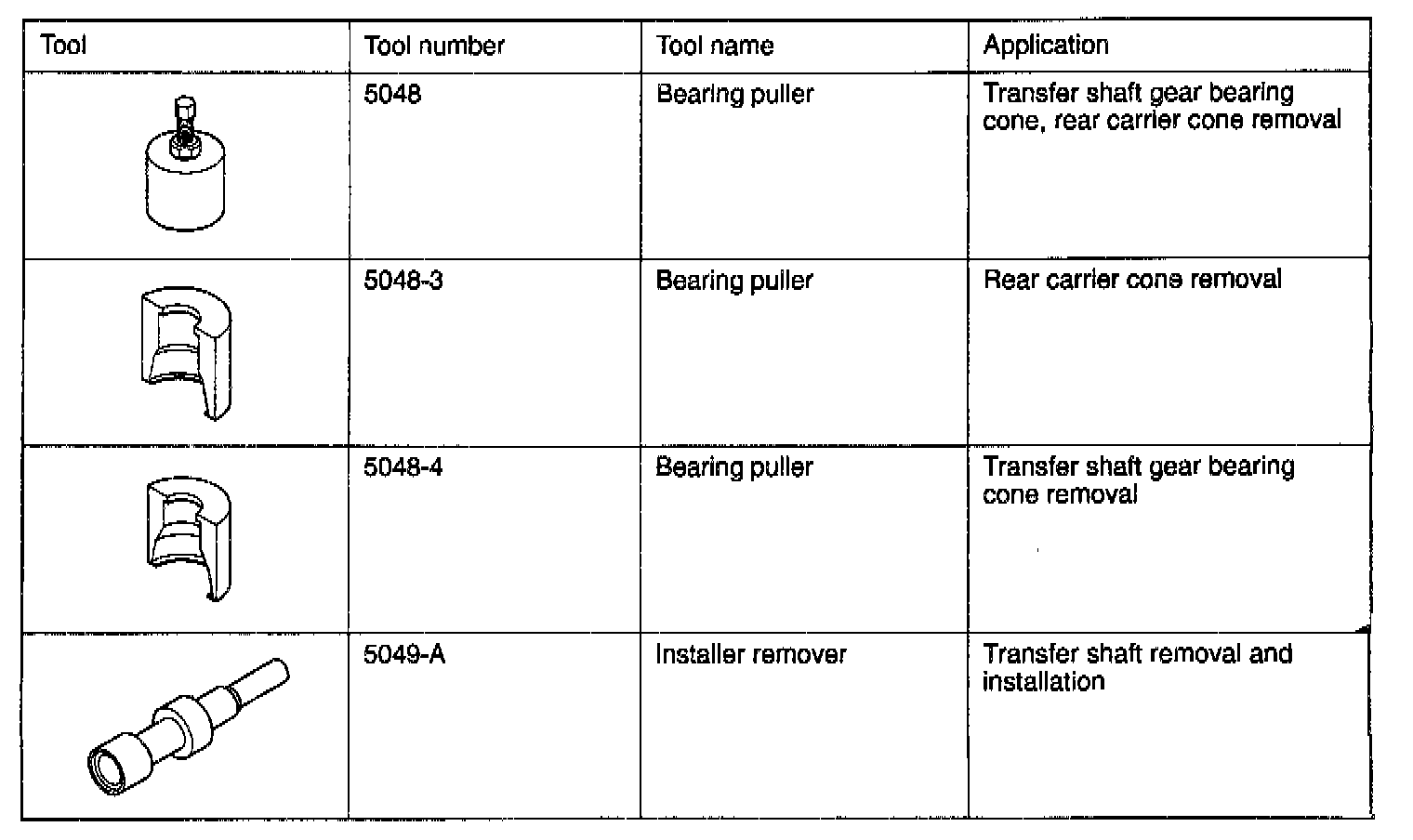

Part 4 Of 7:

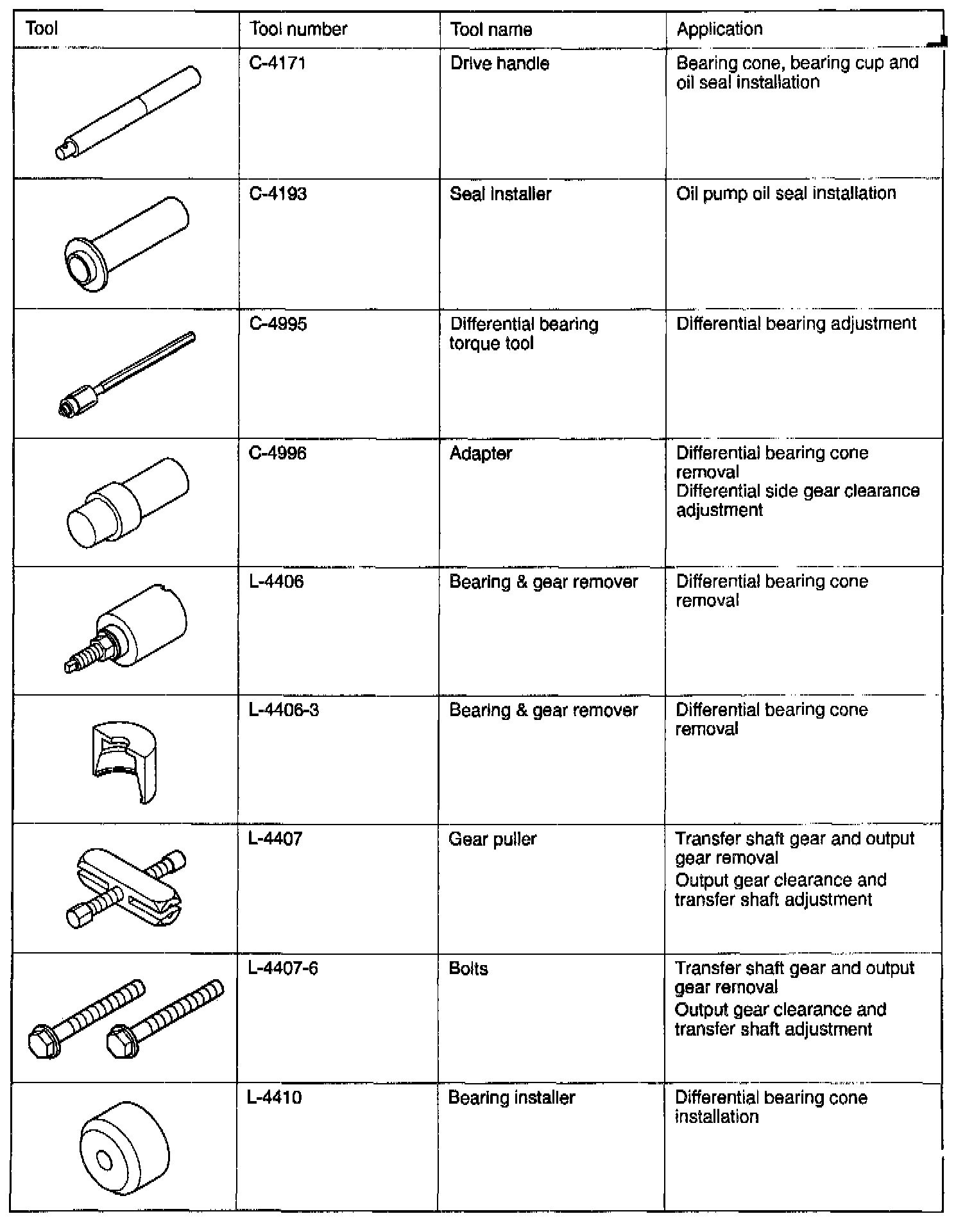

Part 5 Of 7:

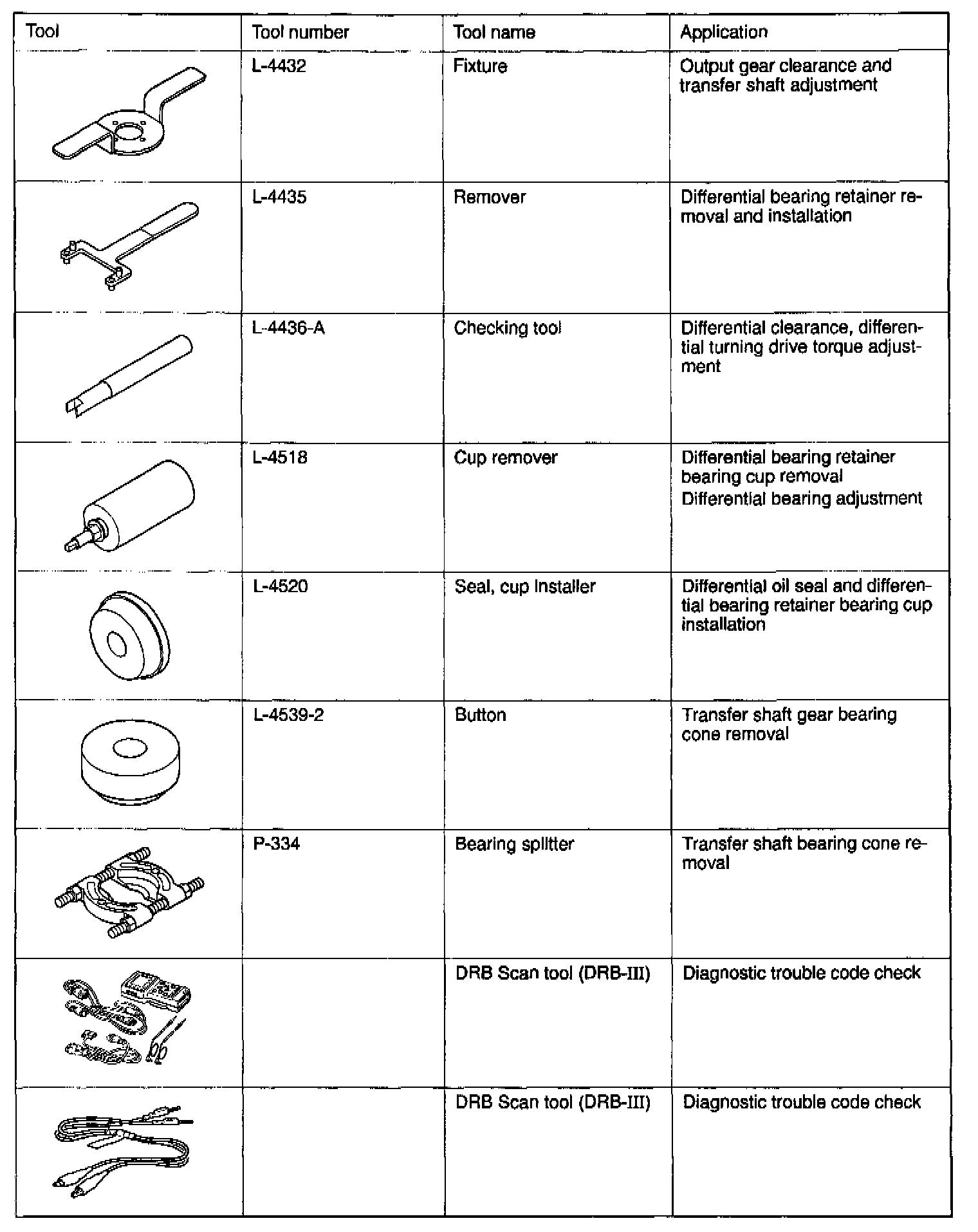

Part 6 Of 7:

Part 7 Of 7:
