Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams >> Electrical Diagrams >> With Theft Alarm >> Manual Transmission

Manual Transmission

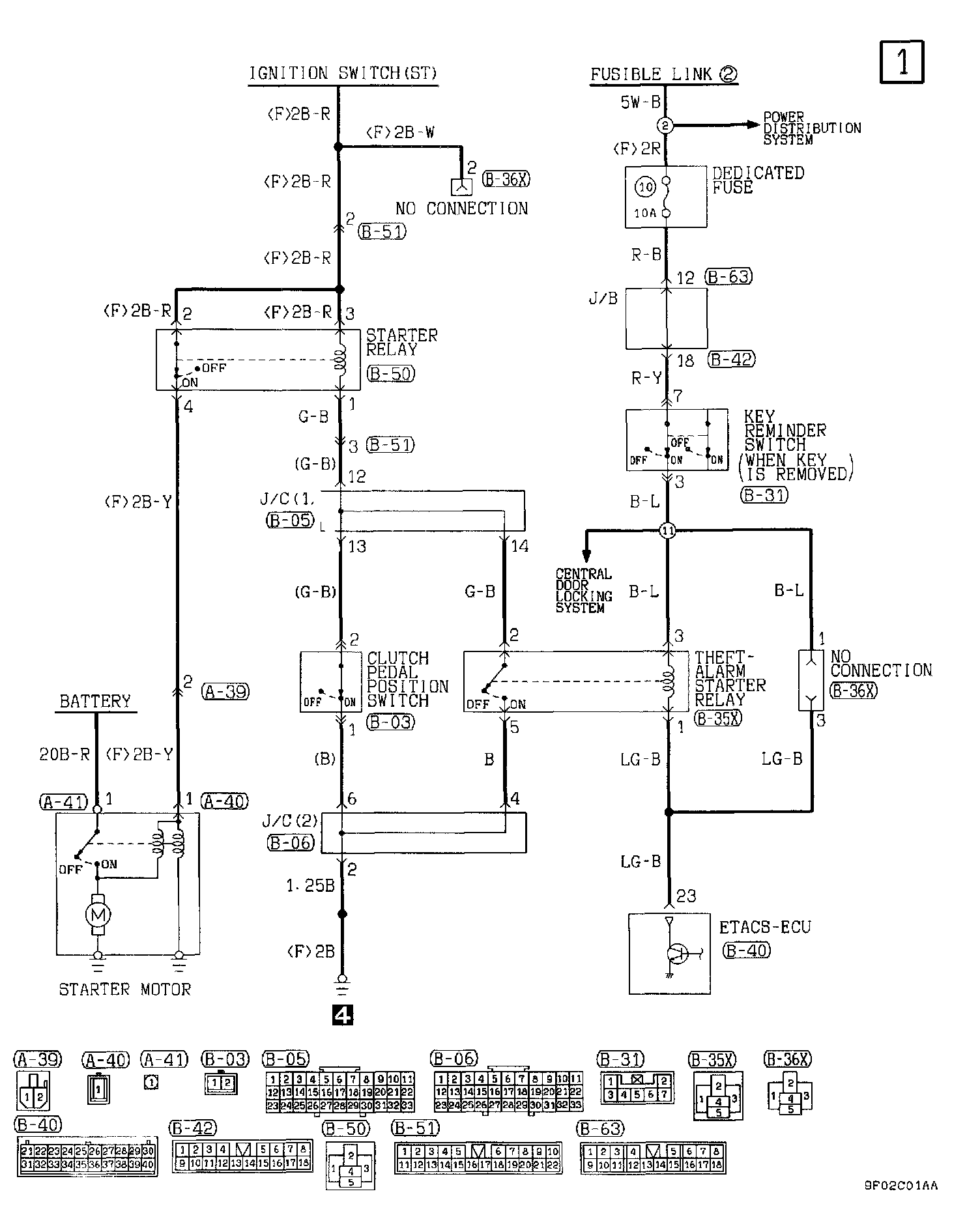

Starting System <M/T (Vehicles With Theft-alarm System)>:
