Fuse Block: Locations

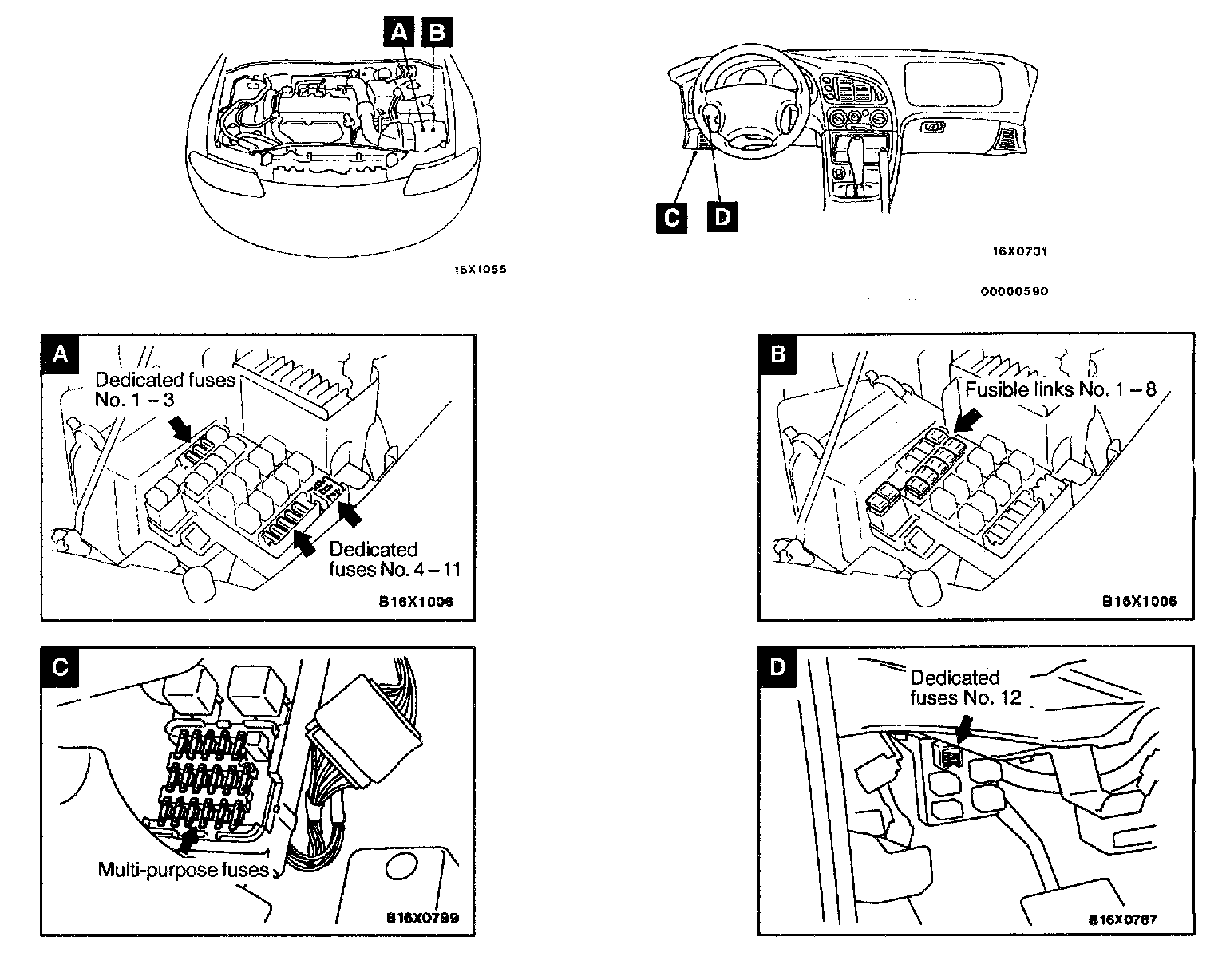

Fusible Link And Fuse Locations:





Name Symbol
Dedicated Fuses No. 1 - 11 A
Dedicated Fuses No. 12 D
Multi-Purpose Fuses C
Fusible Links 1-8 B
