Alternator: Service and Repair

Pre-removal Operation
- Under Cover Side Panel Removal
- Reservoir Assembly Removal


Post-Installation Operation
- Reservoir Assembly Installation

- Drive Belt Tension Adjustment
- Under Cover Side Panel Installation

Removal

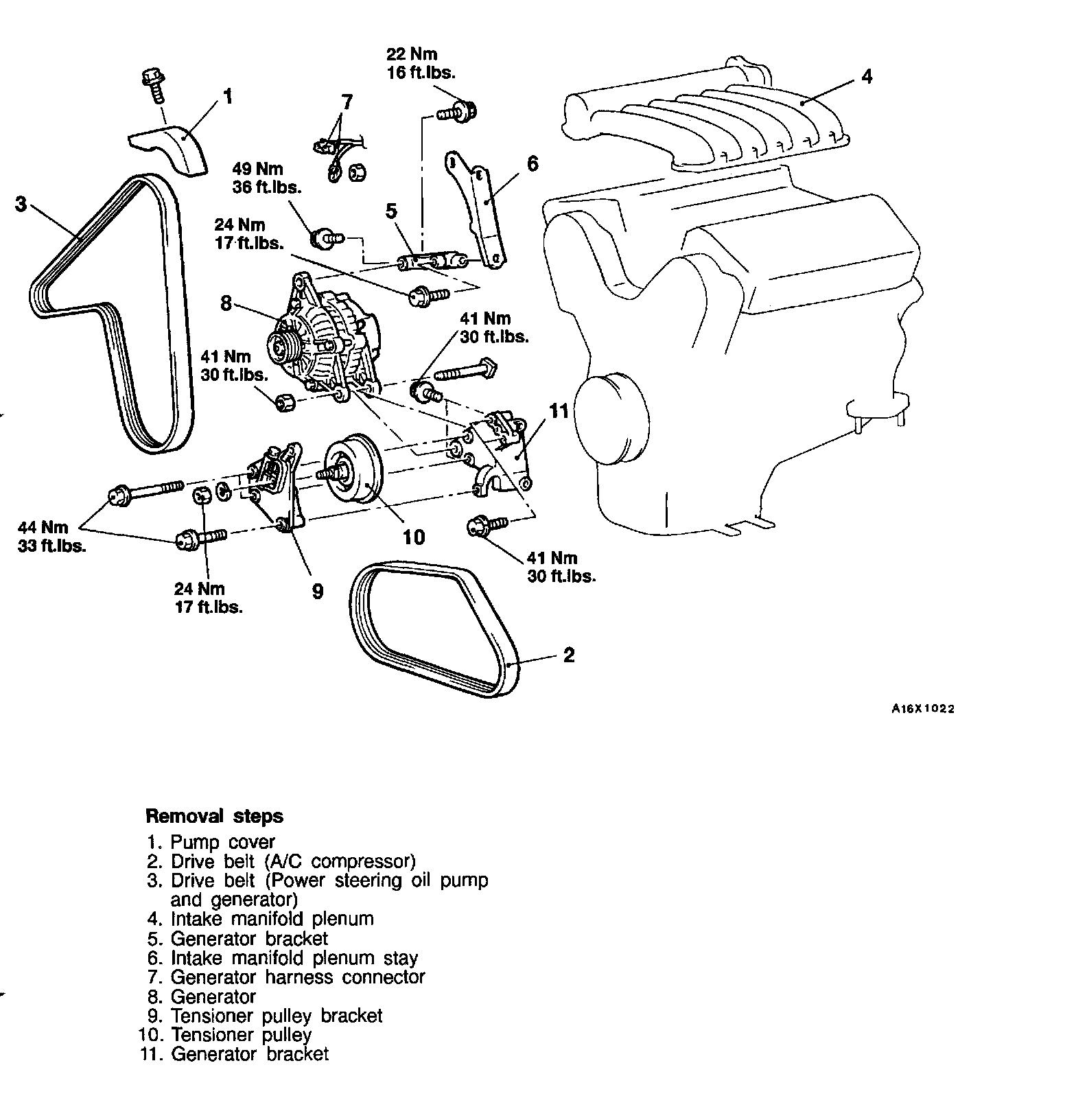

To remove follow the steps listed in the image.

Installation
To install reverse the steps listed in the image.
