Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

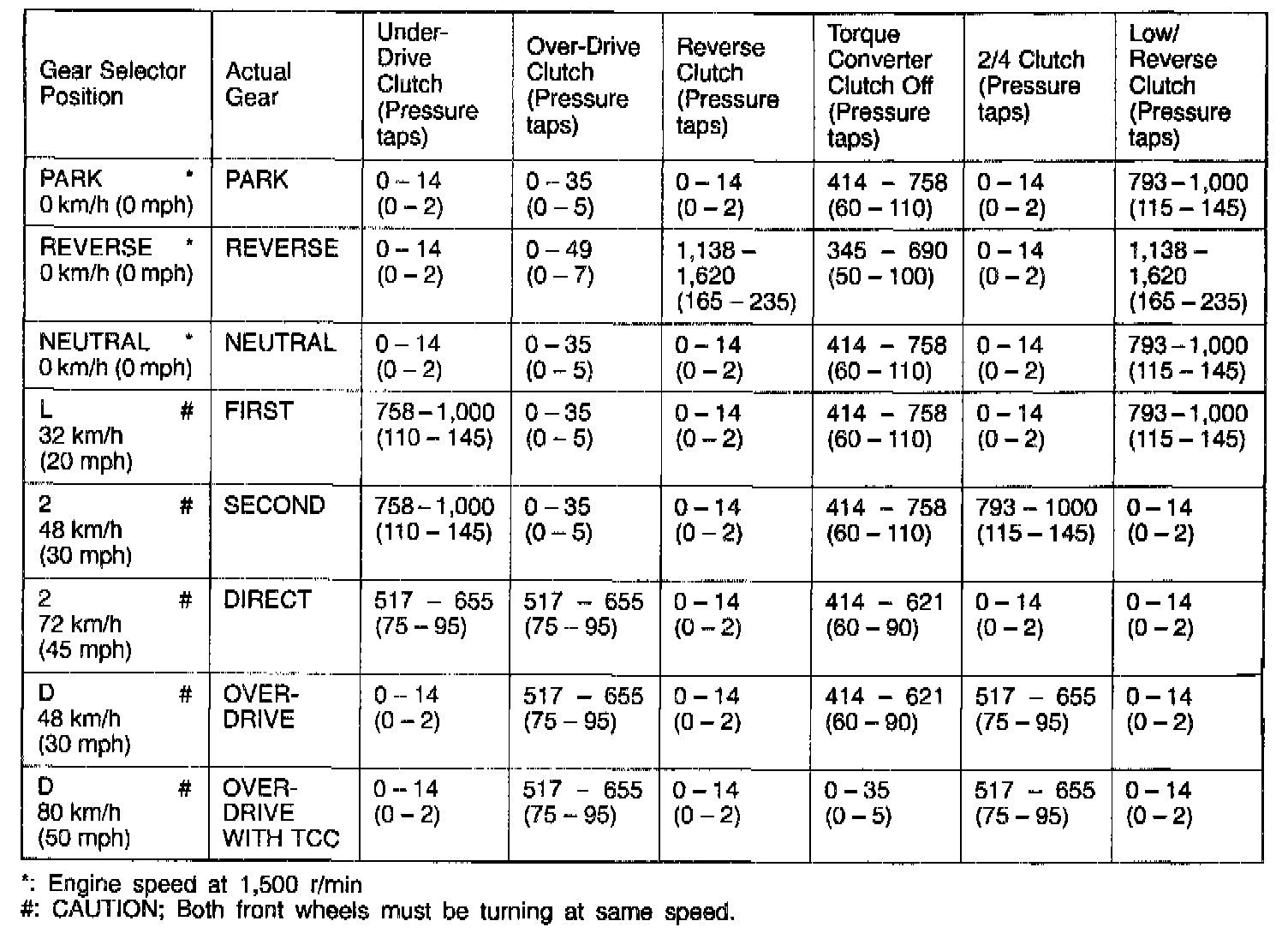

PRESSURE TAP ORDER ON CASE FROM BELLHOUSING TO END COVER ALL PRESSURE SPECIFICATIONS ARE kPa Unlit [on hoist with front wheels free]
