Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Distributor >> Locations

Distributor: Locations

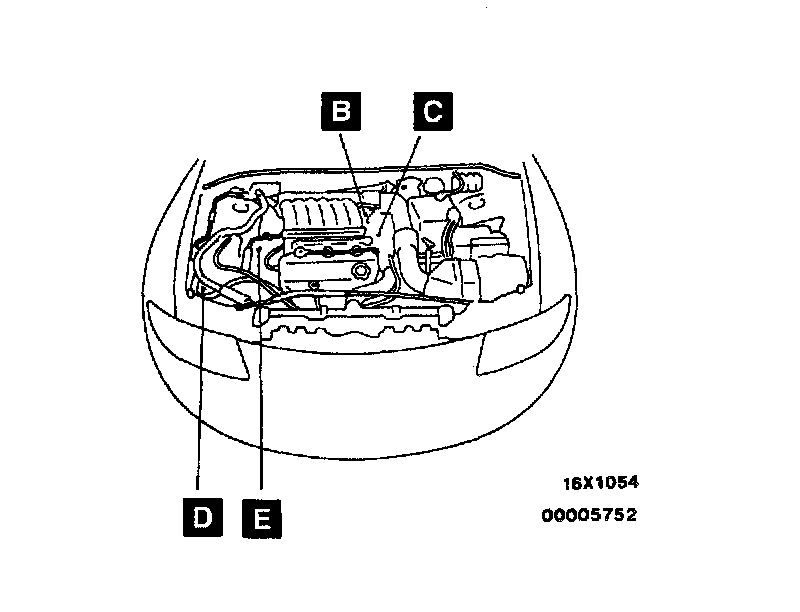

Other Devices Location Overall View:

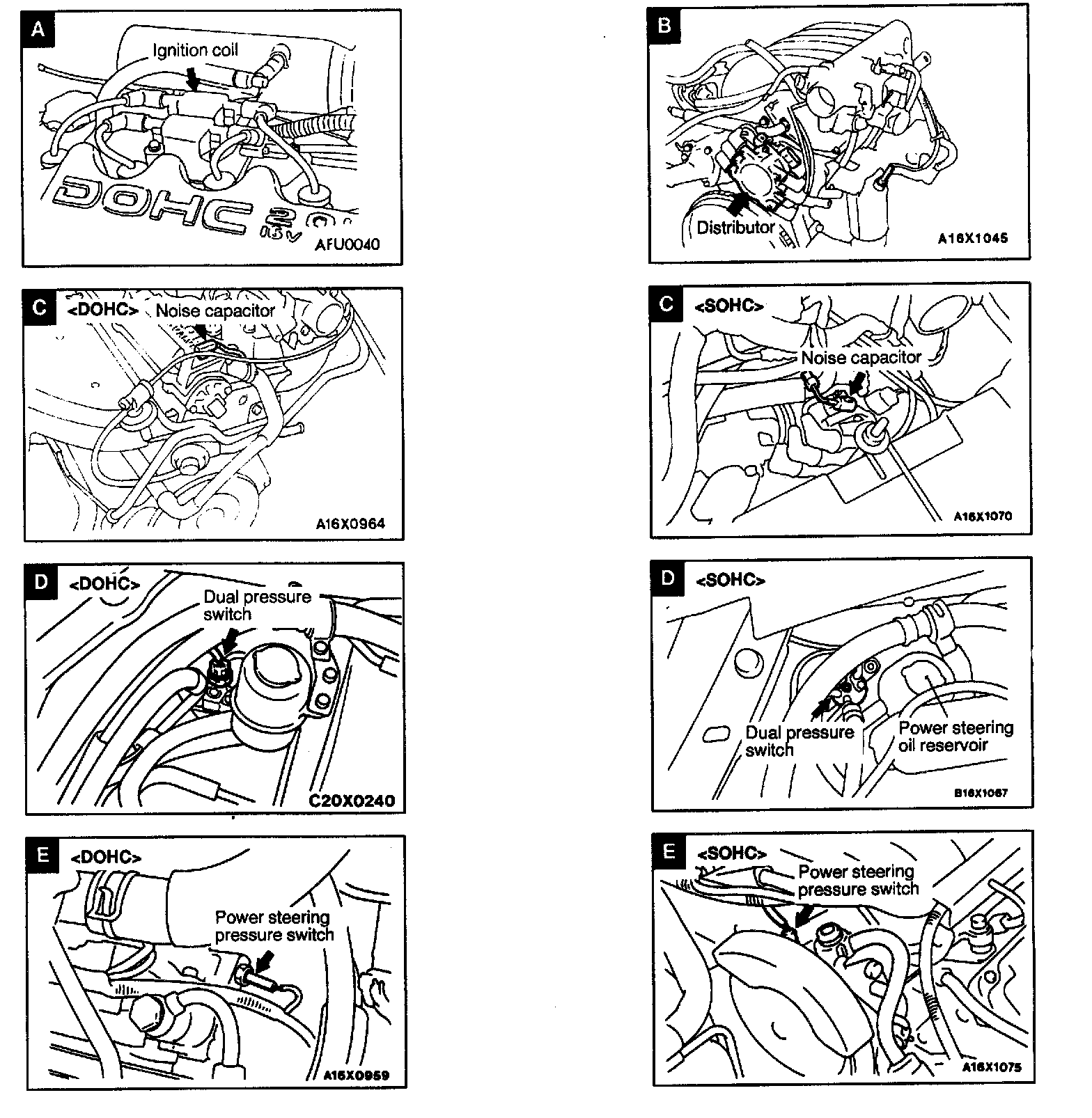

Other Devices Views A - E:





Name Symbol

Distributor D
