Throttle Body: Service and Repair

Pre-removal Operation
- Residual Fuel Pressure Releasing

Post-installation Operation
- Accelerator Cable Adjustment (Refer to On-vehicle Service) Testing and Inspection

Throttle Body:

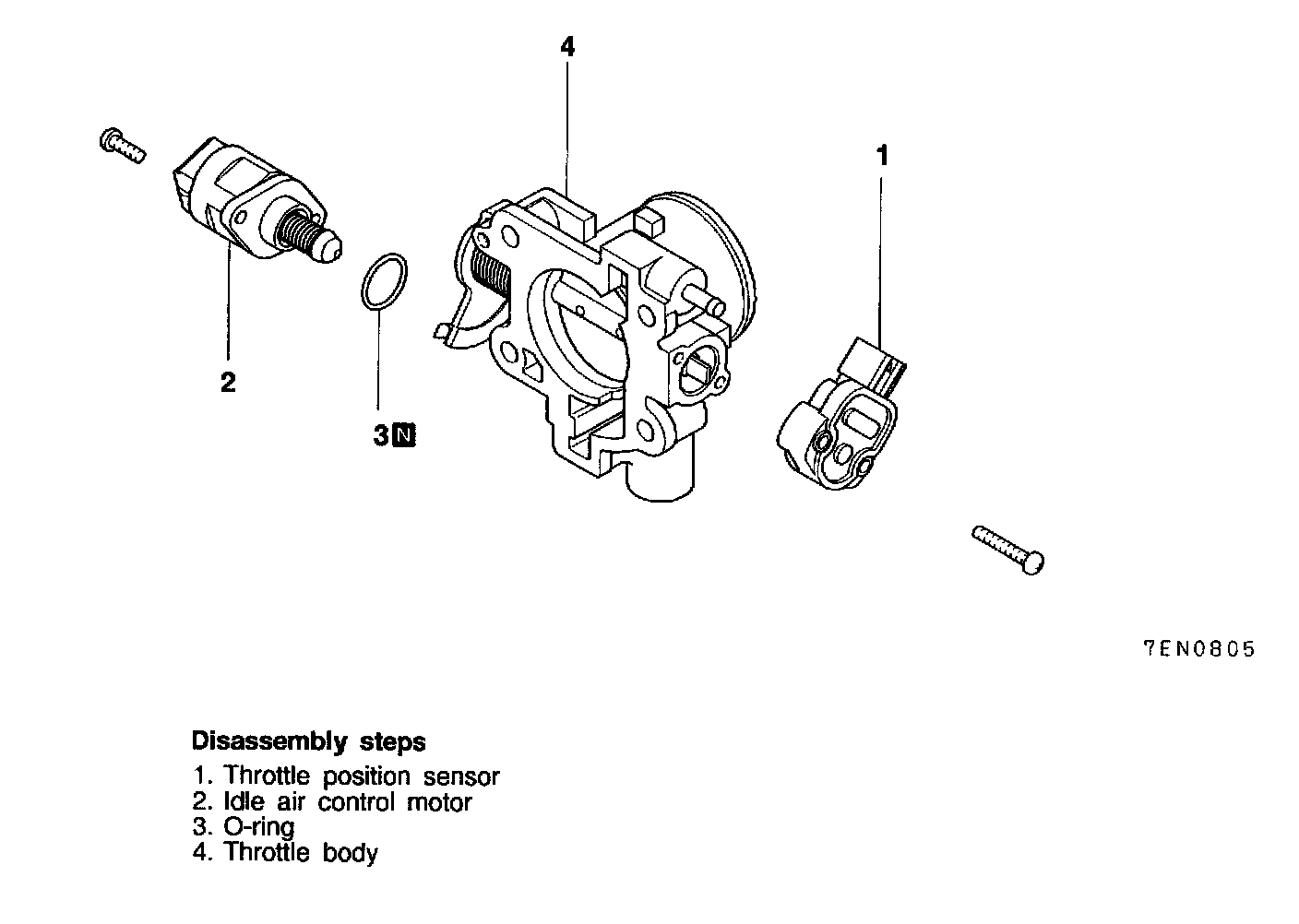

Disassembly And Assembly:

DISASSEMBLY SERVICE POINT
Step 1: Throttle Position Sensor And Idle Air Control Motor Removal
1. Do not disassemble the sensor and the motor.
2. Do not immerse solvent to clean the sensor and motor. Clean them with shop towel.

Step 4: Throttle Body Removal
1. Do not disassemble the throttle body.
2. Check if the vacuum port or passage is clogged. Use compressed air to clean the vacuum passage.
