Purge Port Vacuum Check

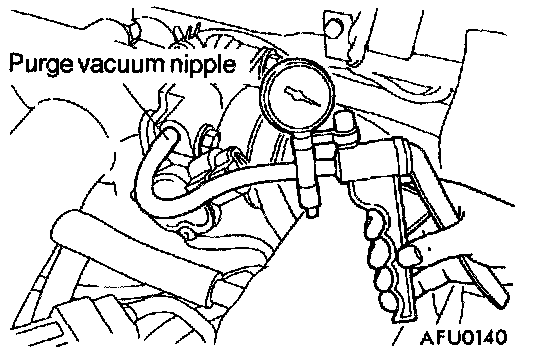

1. Disconnect the vacuum hose from the throttle body purge vacuum nipple and connect a hand vacuum pump to the nipple.

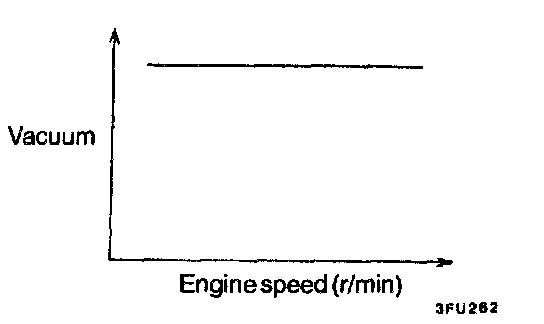

2. Start the engine and raise the speed. Vacuum should be kept constant regardless of the increased engine speed.

NOTE: If no vacuum is generated, the throttle body purge port may be clogged.
