Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Locations

Malfunction Indicator Lamp: Locations

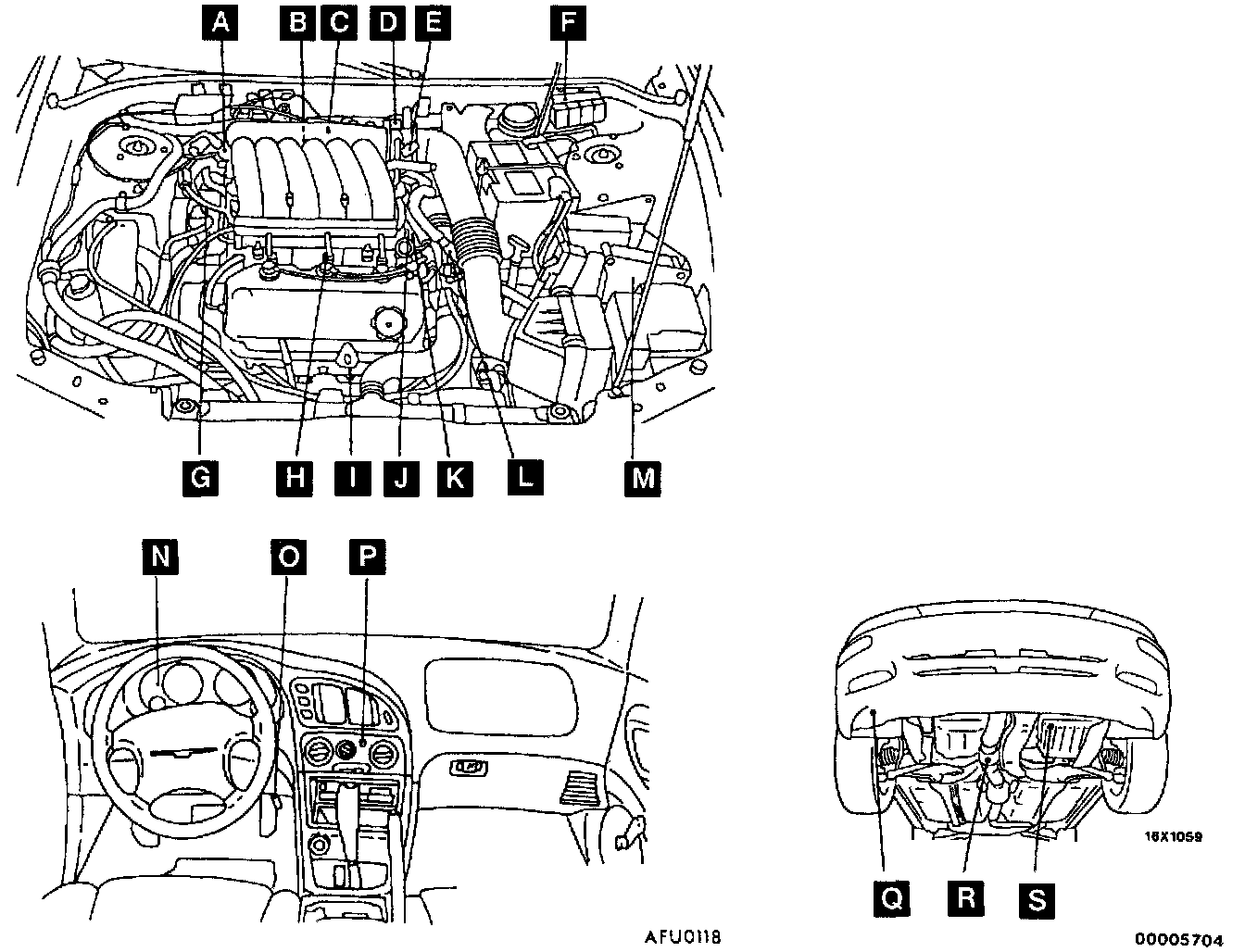

MFI Component Locations:

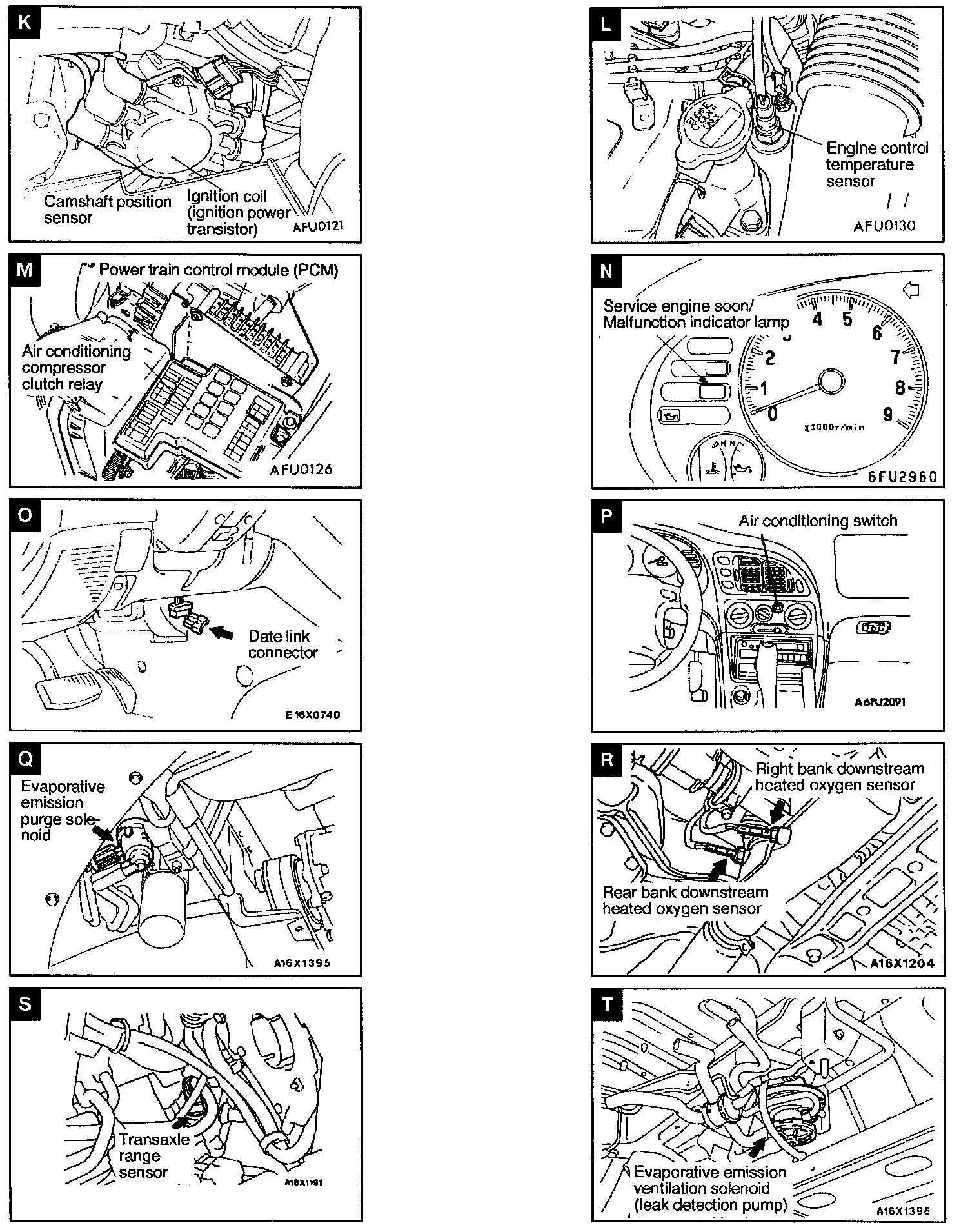

On-Vehicle Inspection Of MFI Components:





Service engine soon/Malfunction indicator lamp N
