Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Column Switch Continuity Check >> Lighting Switch and Dimmer/Passing Switch

Lighting Switch and Dimmer/Passing Switch

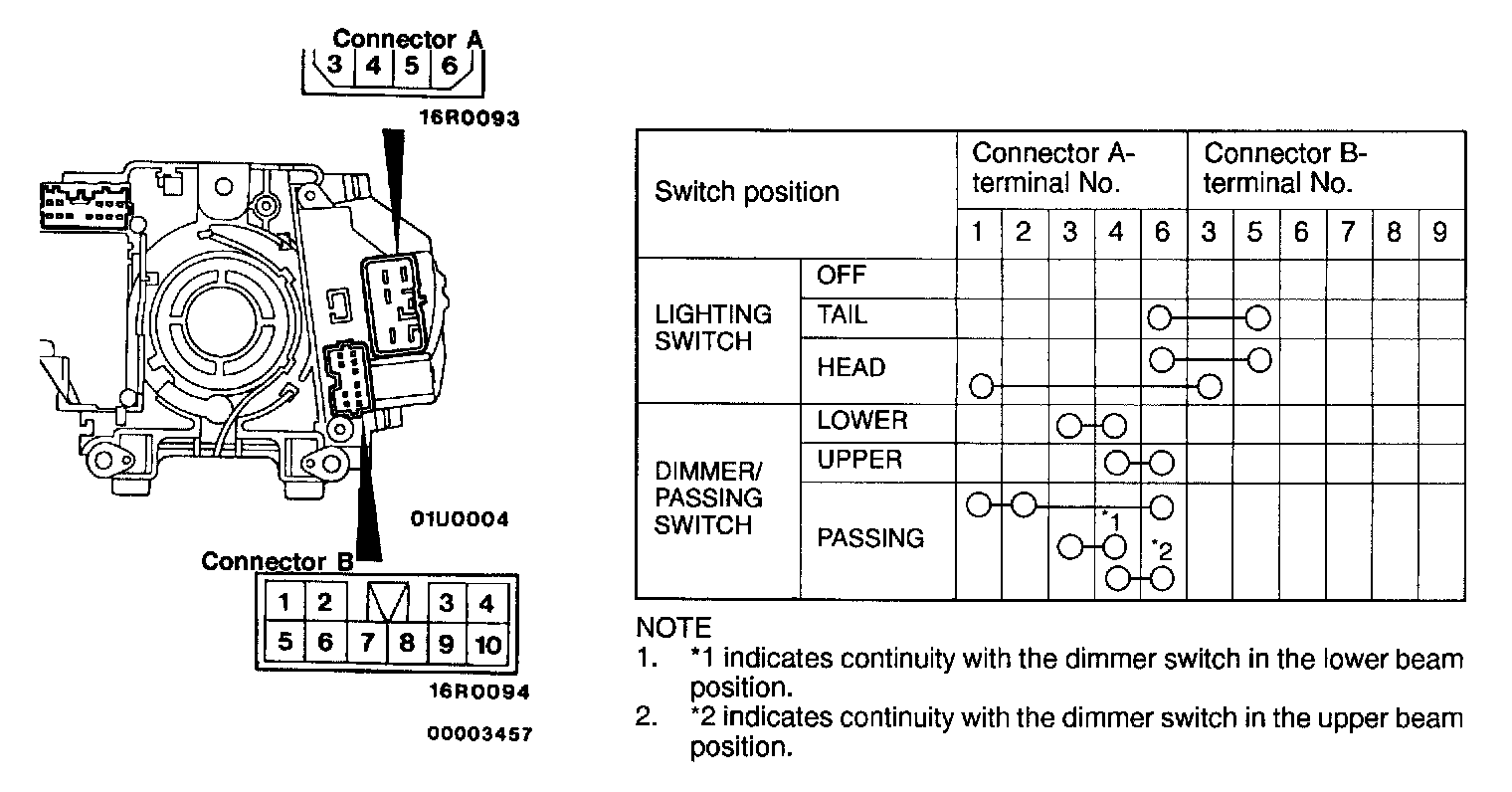

Switch Test:
