Vertical Adjustment

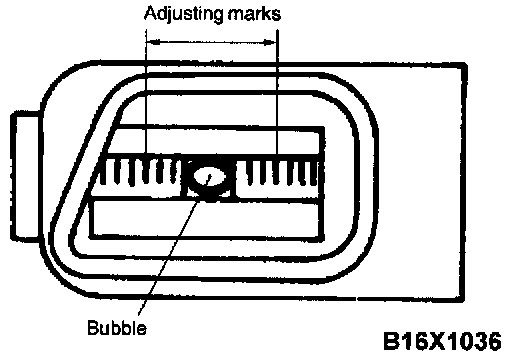

1. Insert a screwdriver in the vertical adjusting hole. Rotate the gear to set the bubble in the vertical adjusting gauge to the position inside the adjusting range.
2. Check to see if the light distribution projected on the aiming screen is the same as the light distribution pattern described in Visual Headlight Adjustment.
3. In case they differ, turn the gear to adjust the vertical angle until the light distribution coincides with the correct lighting pattern.
