Fog/Driving Lamp: Service and Repair

Service Procedure:

Removal

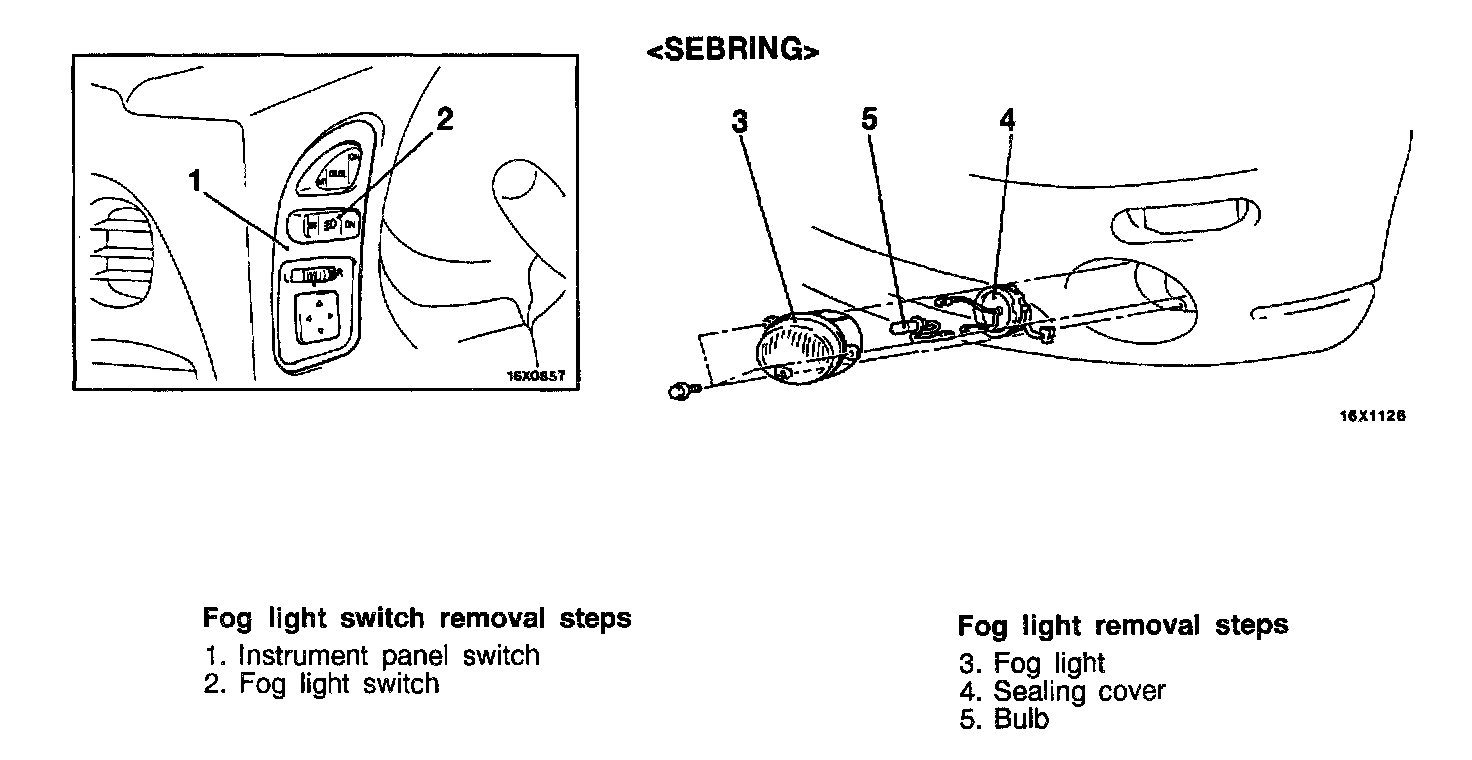

To remove follow the steps listed in the image and note the following.

Service Procedure:

Step 5: Bulb Removal
Remove the bulb attaching spring and pull out the bulb.

Bulb Removal:

CAUTION: Do not touch the surface of the bulb (glass part) with hands or dirty gloves. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

Installation
To install reverse the steps listed in the image and note the following.

Step 4: Sealing Cover Installation
Install the sealing cover securely.

CAUTION: If the sealing cover is not securely installed, the lens will be out of focus, or water will get inside the light unit.
