Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Lamps and Indicators - Engine >> Oil Pressure Warning Lamp/Indicator >> Diagrams >> Electrical Diagrams

Electrical Diagrams

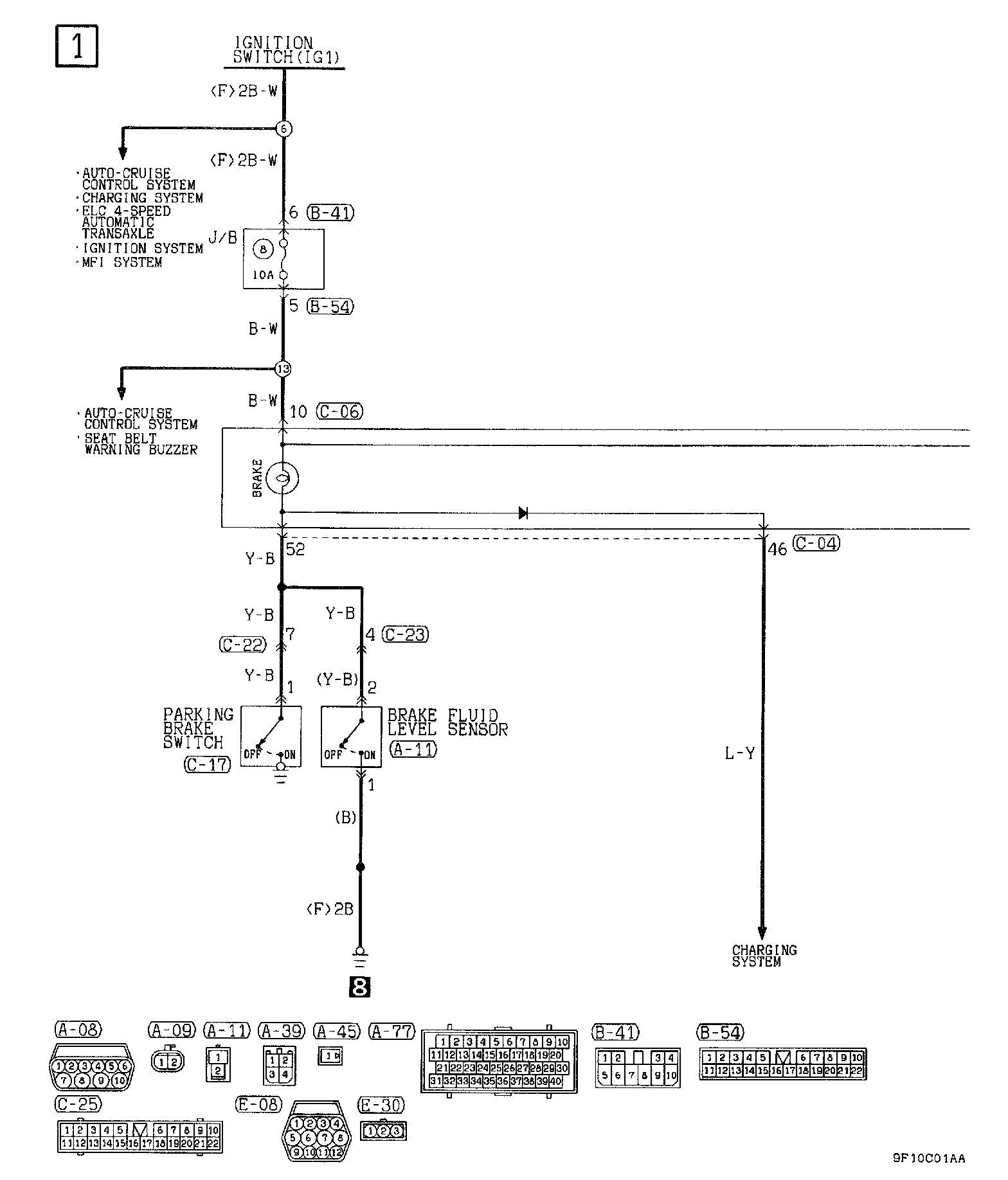

Brake Warning Light, Oil Pressure Warning Light And Low Fuel Level Warning Light (Part 1 Of 2):

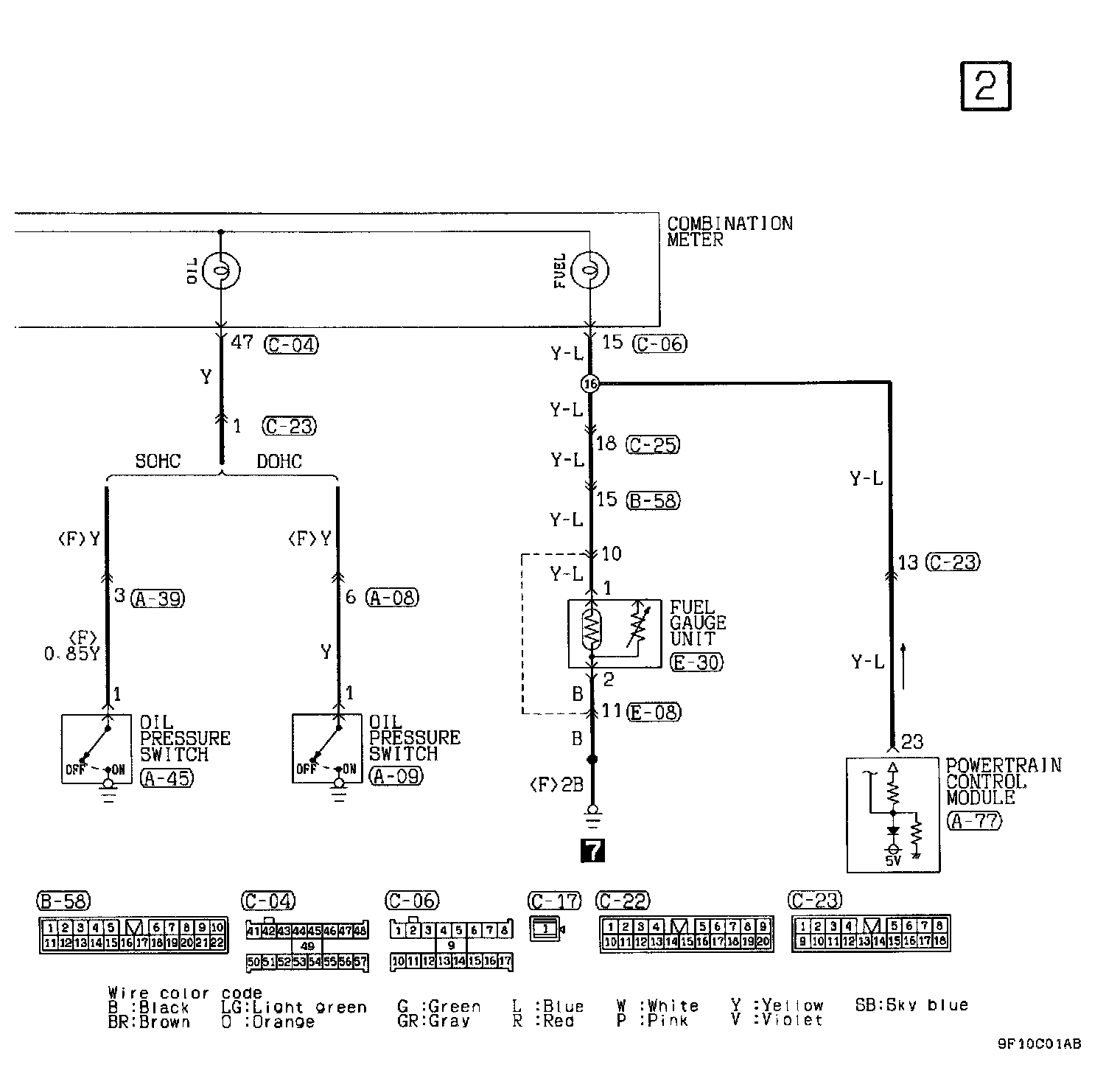

Brake Warning Light, Oil Pressure Warning Light And Low Fuel Level Warning Light (Part 2 Of 2):
