Wiring Diagrams

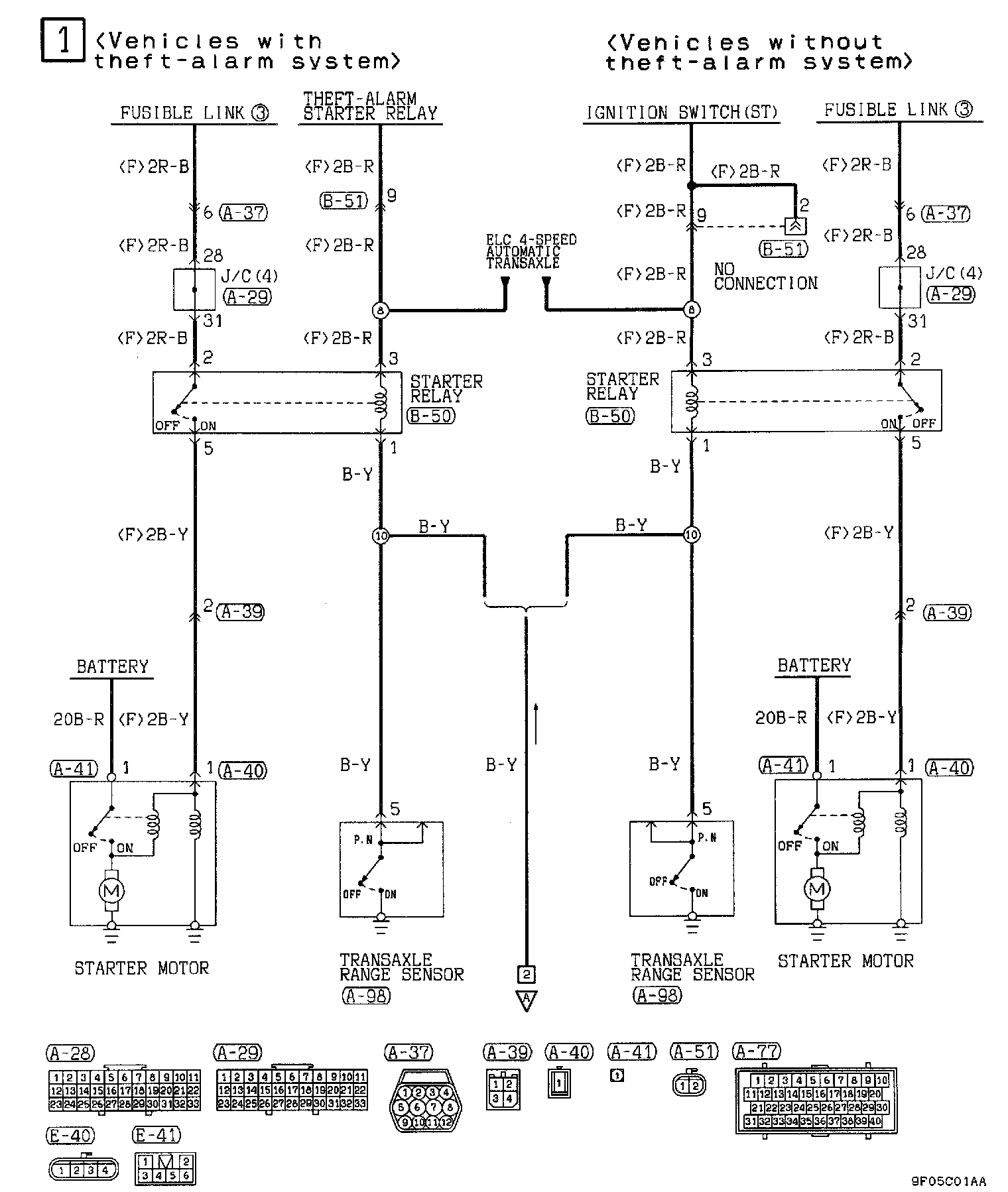

MFI System (Part 1 Of 10):

J/C (4)
Starter Motor
Starter Relay
Transaxle Range Sensor

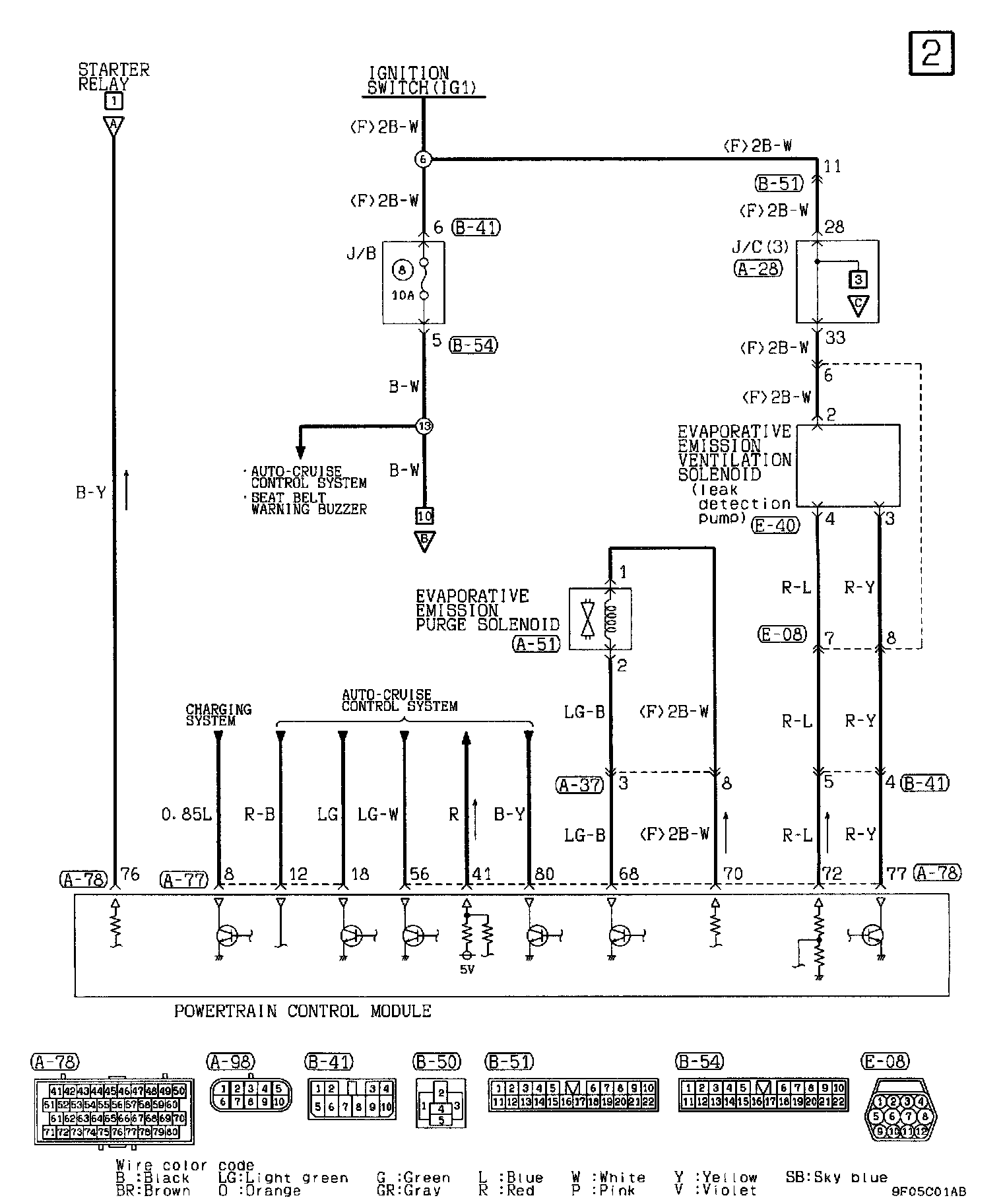

MFI System (Part 2 Of 10):

Evaporative Emission Purge Solenoid
Evaporative Emission Ventilation Solenoid
J/B
J/C (3)
Powertrain Control Module

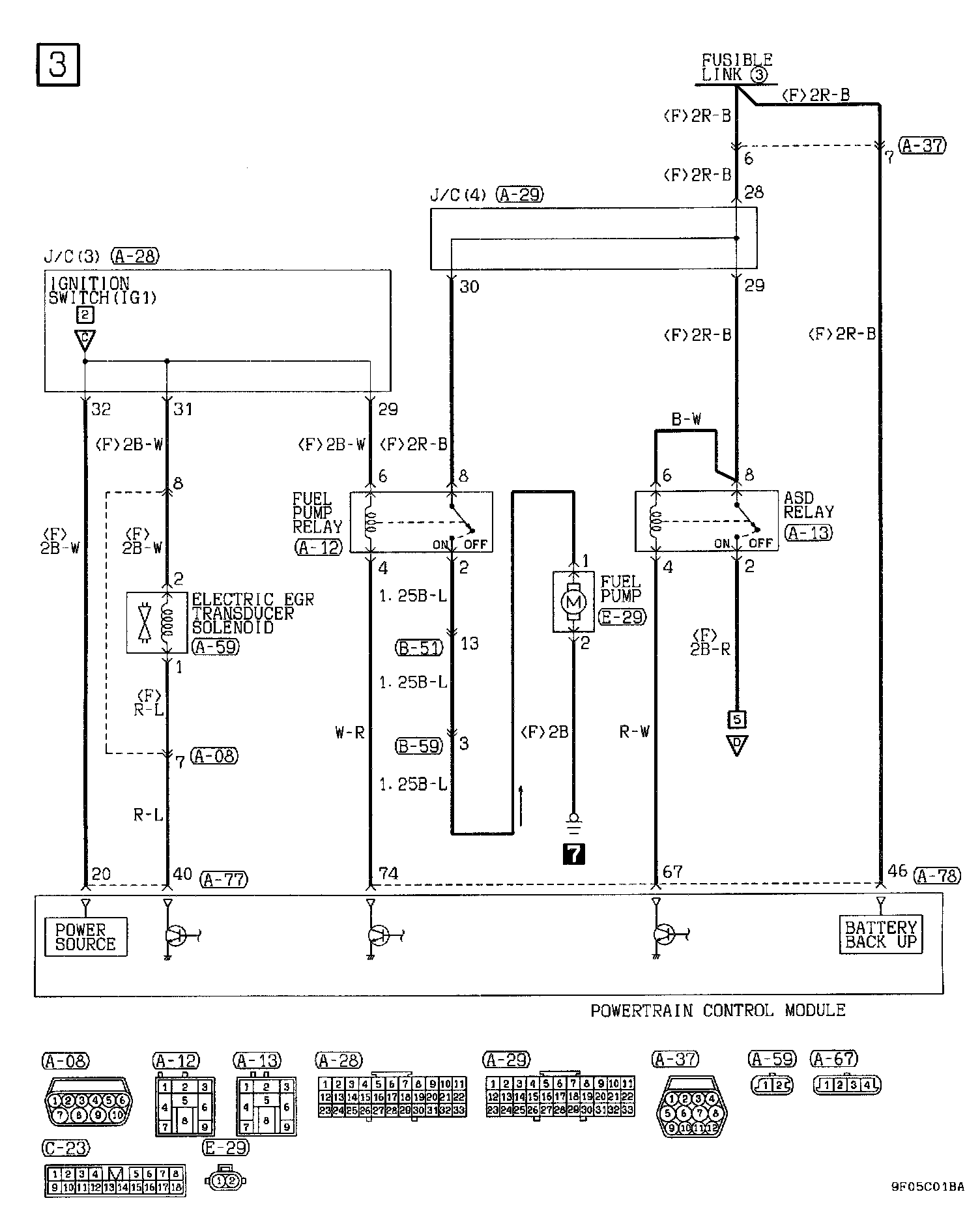

MFI System (Part 3 Of 10):

ASD Relay
Electrical [1][2]EGR Transducer Solenoid
Fuel Pump
Fuel Pump Relay
J/C (3, 4)
Powertrain Control Module

MFI System (Part 4 Of 10):

Idle Air Control Motor
J/C (2)
Powertrain Control Module
Power Steering Pressure Switch
Stop Light Switch

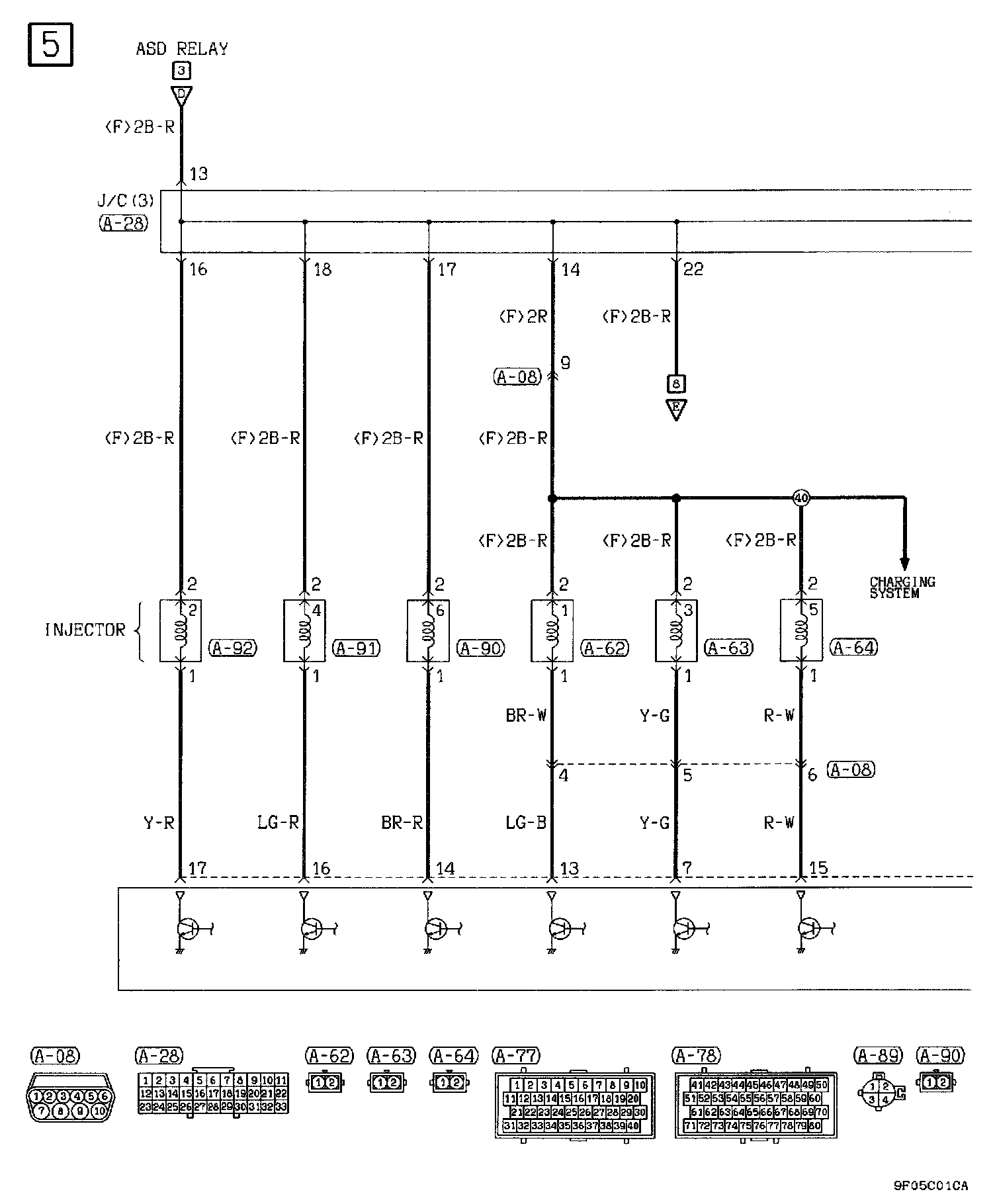

MFI System (Part 5 Of 10):

Injectors
J/C (3)
Powertrain Control Module

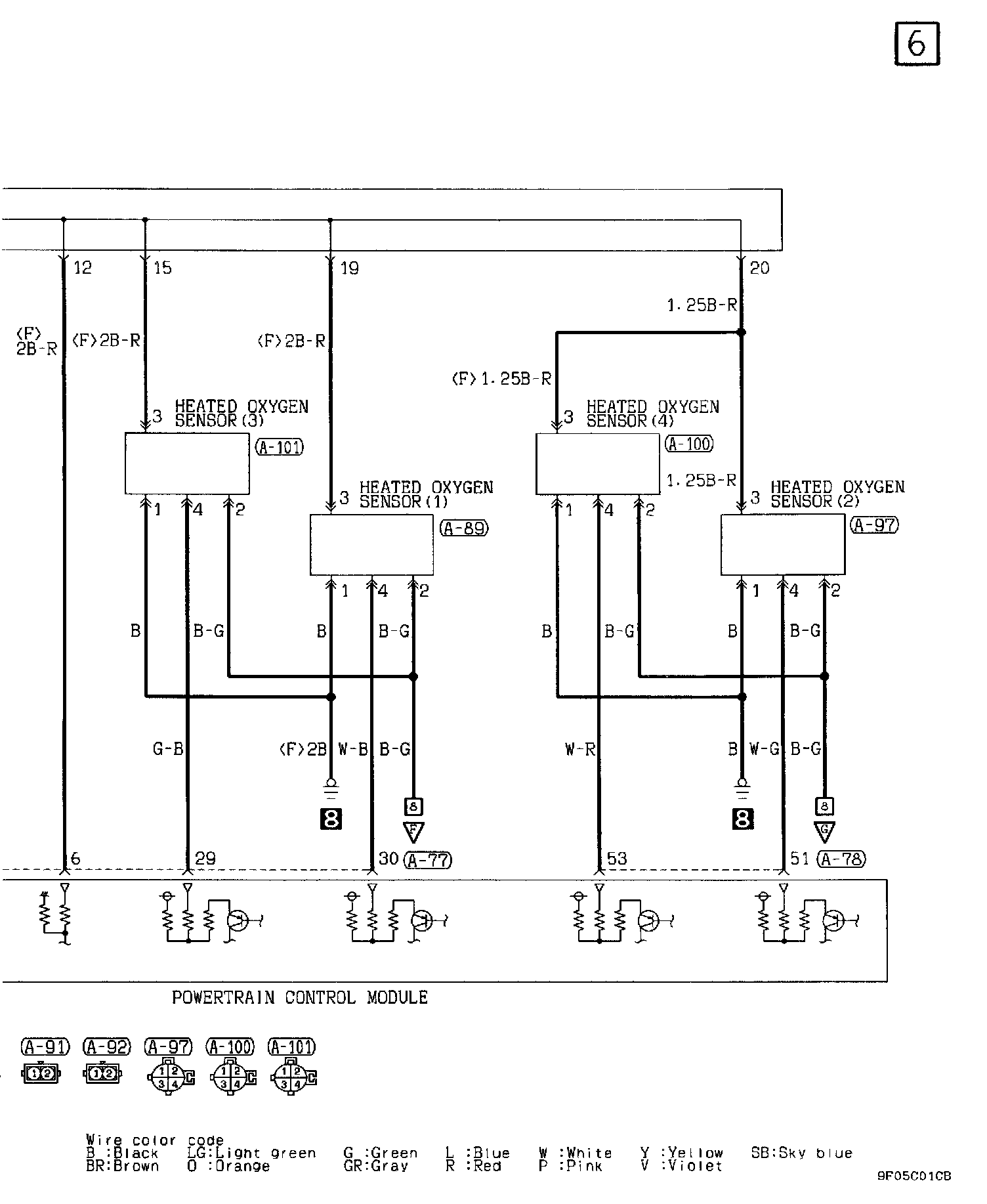

MFI System (Part 6 Of 10):

Heated Oxygen Sensors (1, 2, 3 & 4)
J/C (3)
Powertrain Control Module

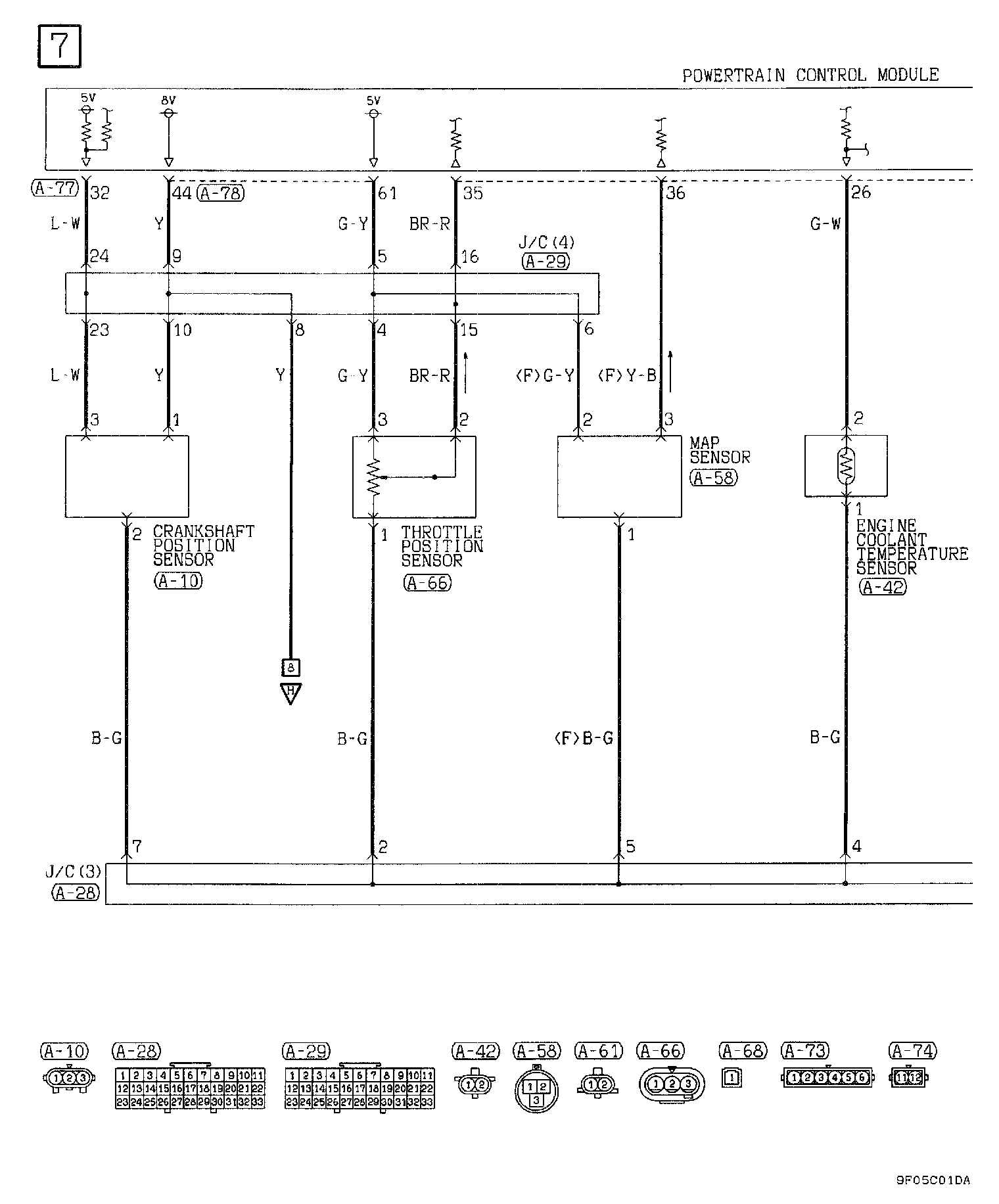

MFI System (Part 7 Of 10):

Crankshaft Position Sensor
Engine Coolant Temperature Sensor
J/C (3, 4)
MAP Sensor
Powertrain Control Module
Throttle Position Sensor

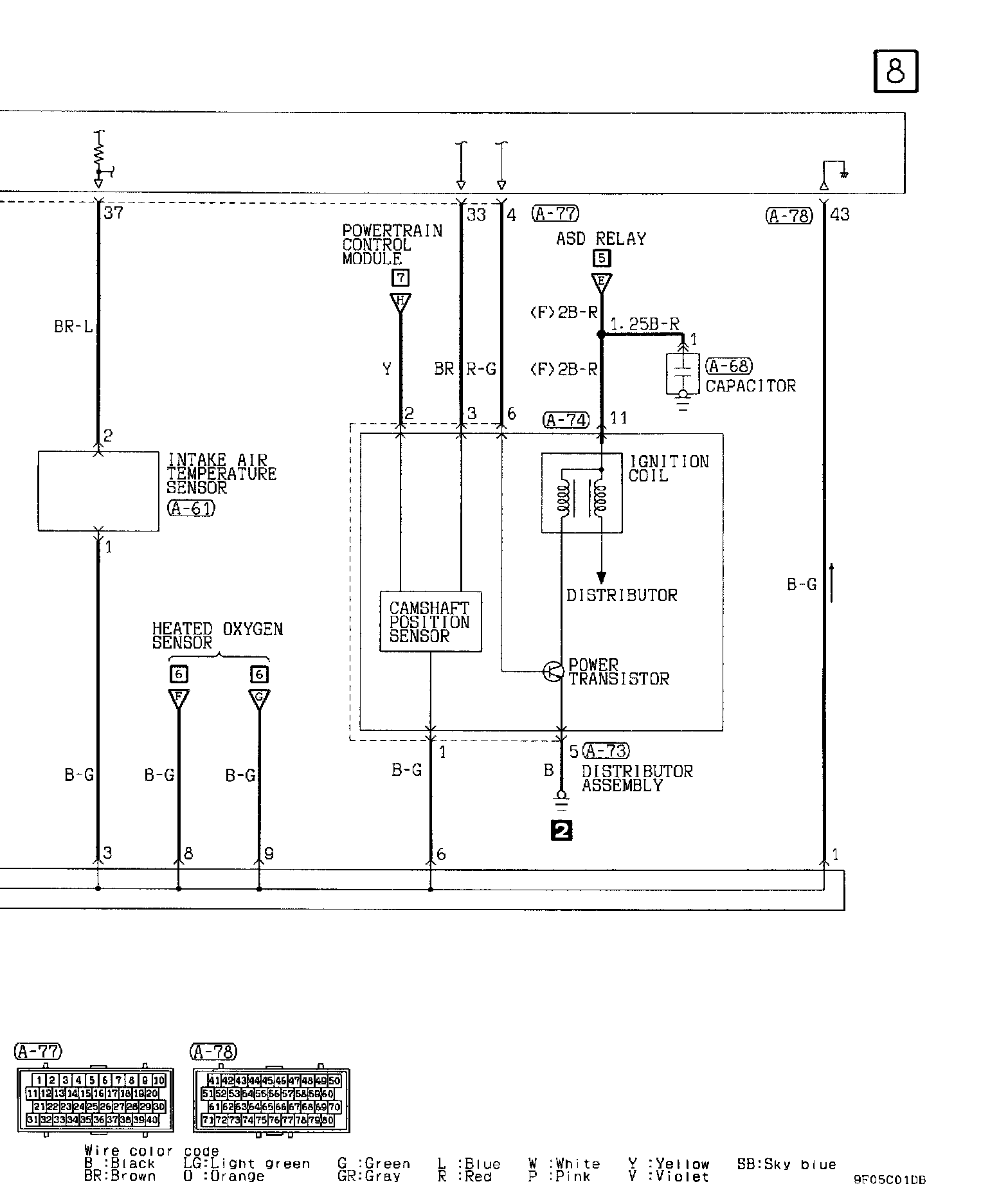

MFI System (Part 8 Of 10):

Capacitor
Distributor Assembly
- Camshaft Position Sensor
- Ignition Coil
Intake Air Temperature Sensor
J/C (3)
Powertrain Control Module

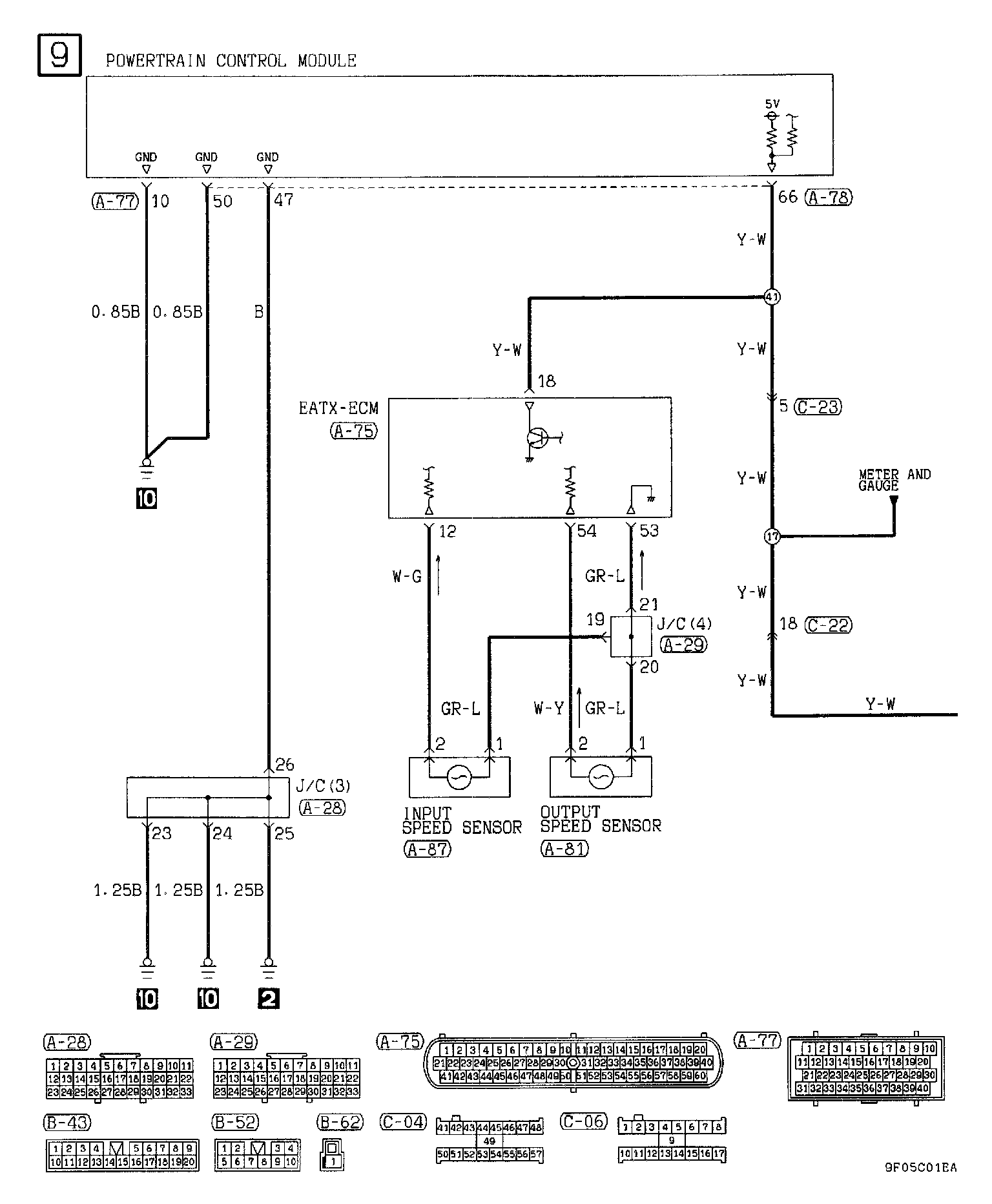

MFI System (Part 9 Of 10):

EATX-ECM
Input Speed Sensor
J/C (3, 4)
Output Speed Sensor
Powertrain Control Module

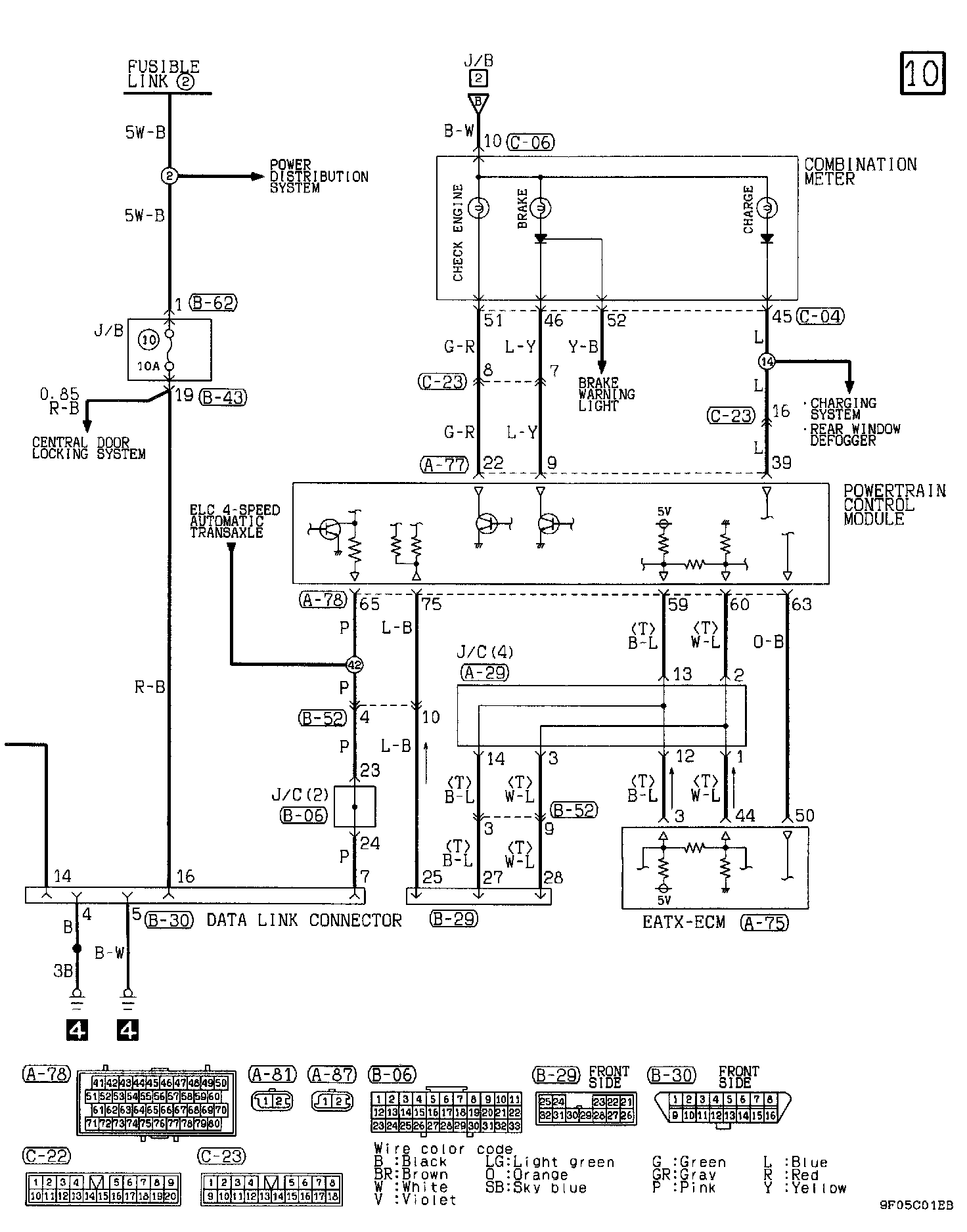

MFI System (Part 10 Of 10):

Combination Meter
Dedicated Fuse
Data Link Connector
EATX-ECM
J/B
J/C (1, 2, 4)
Powertrain Control Module
