Grounding Locations
Grounding Locations

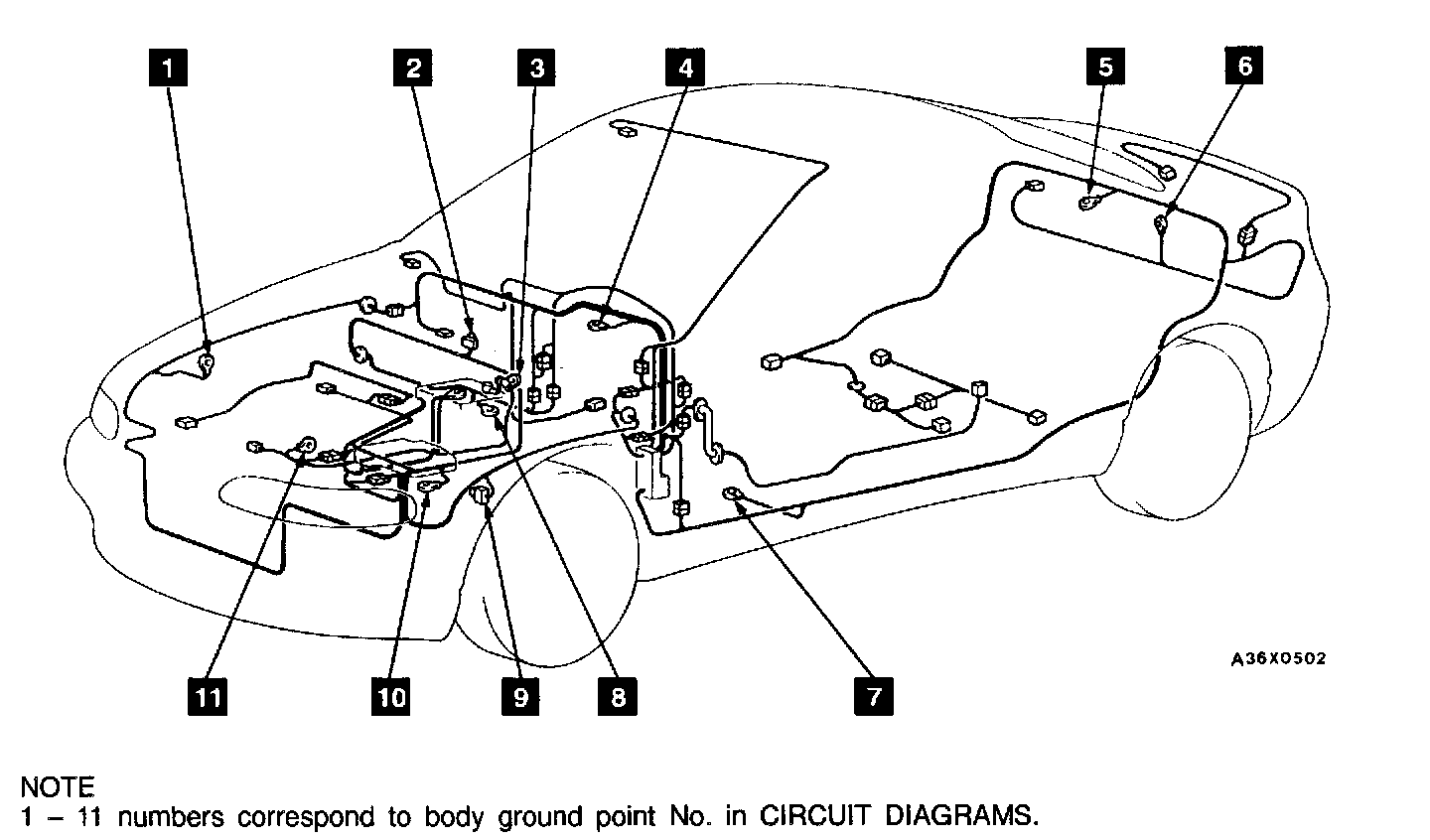

Grounding Locations Overall View:
Grounding Locations Views 1 - 2:

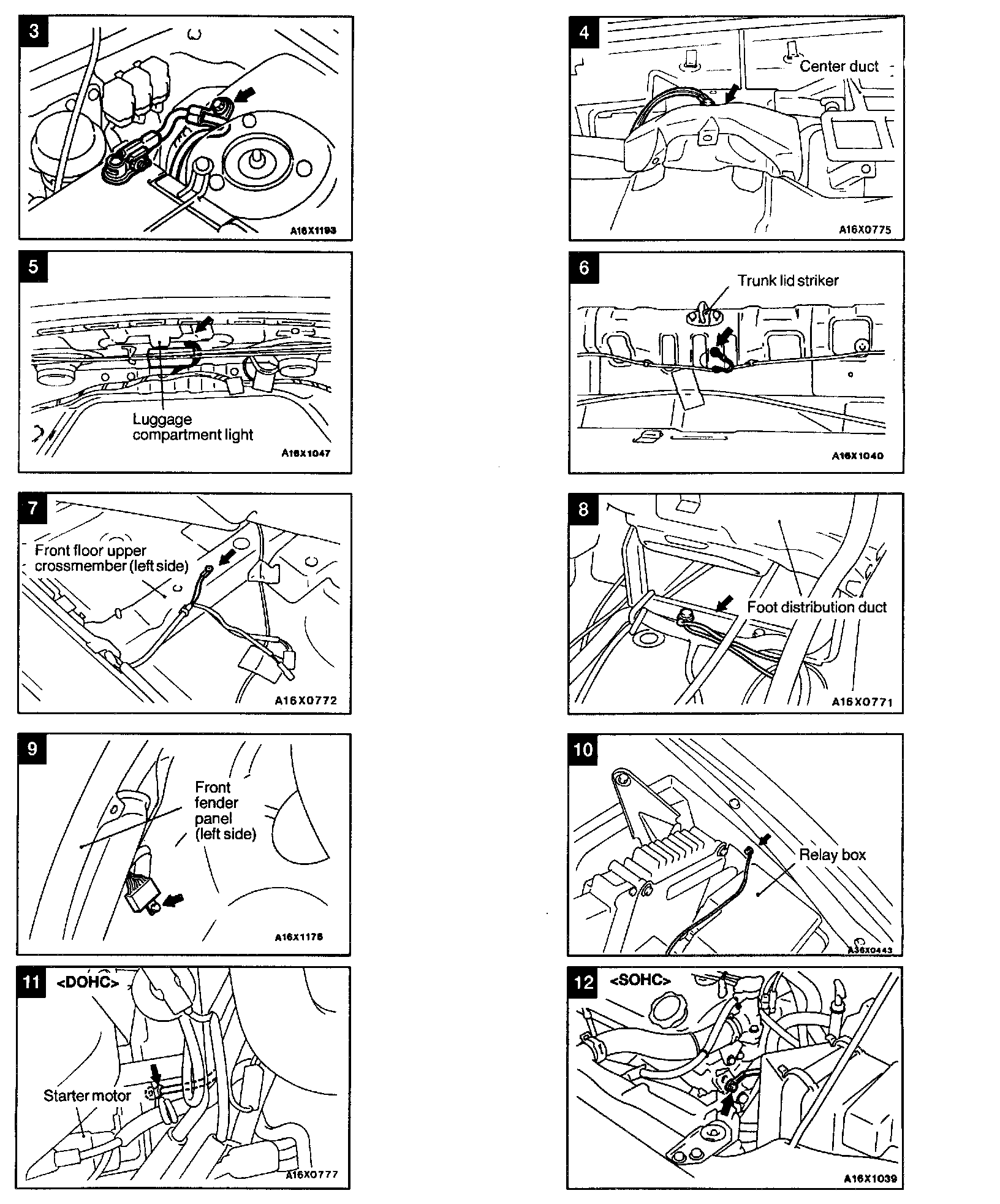

Grounding Locations Views 3 - 12:
