Pinout Values and Diagnostic Parameters

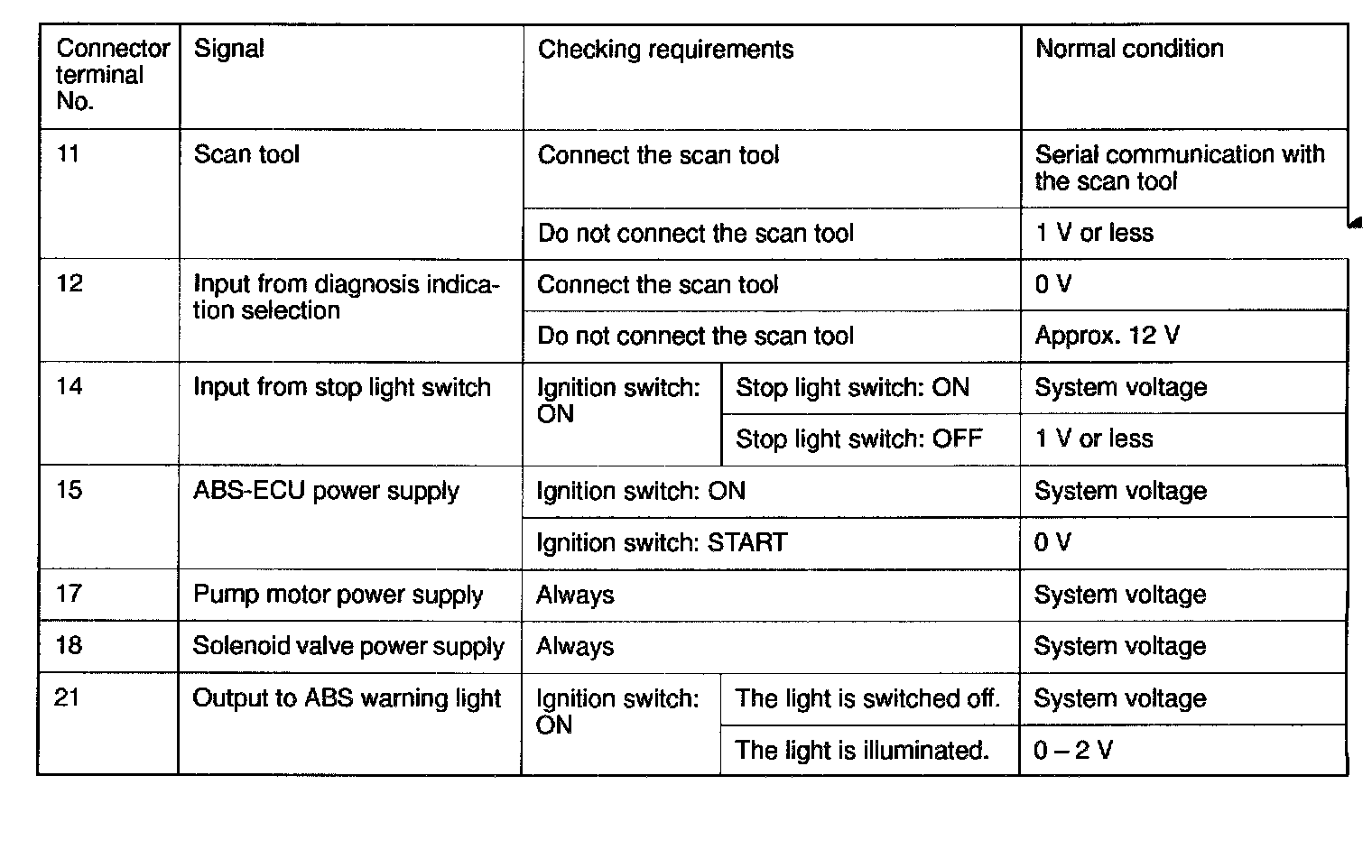

TERMINAL VOLTAGE CHECK








1. Measure the voltages between terminals (16) and (19) (ground terminals) and each respective terminal.

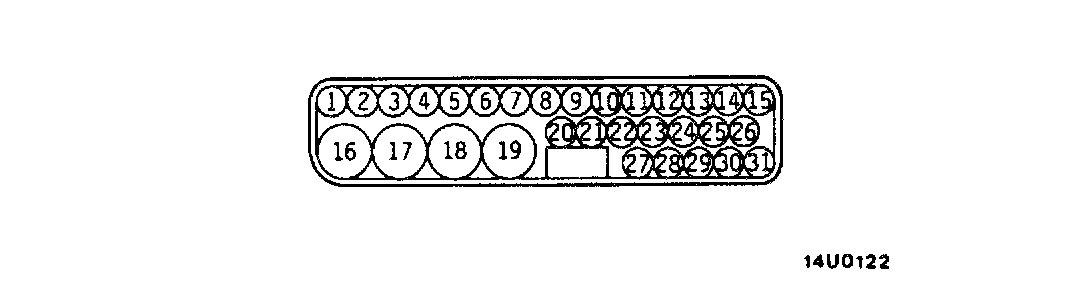

2. The terminal layouts are shown in the illustrations below.

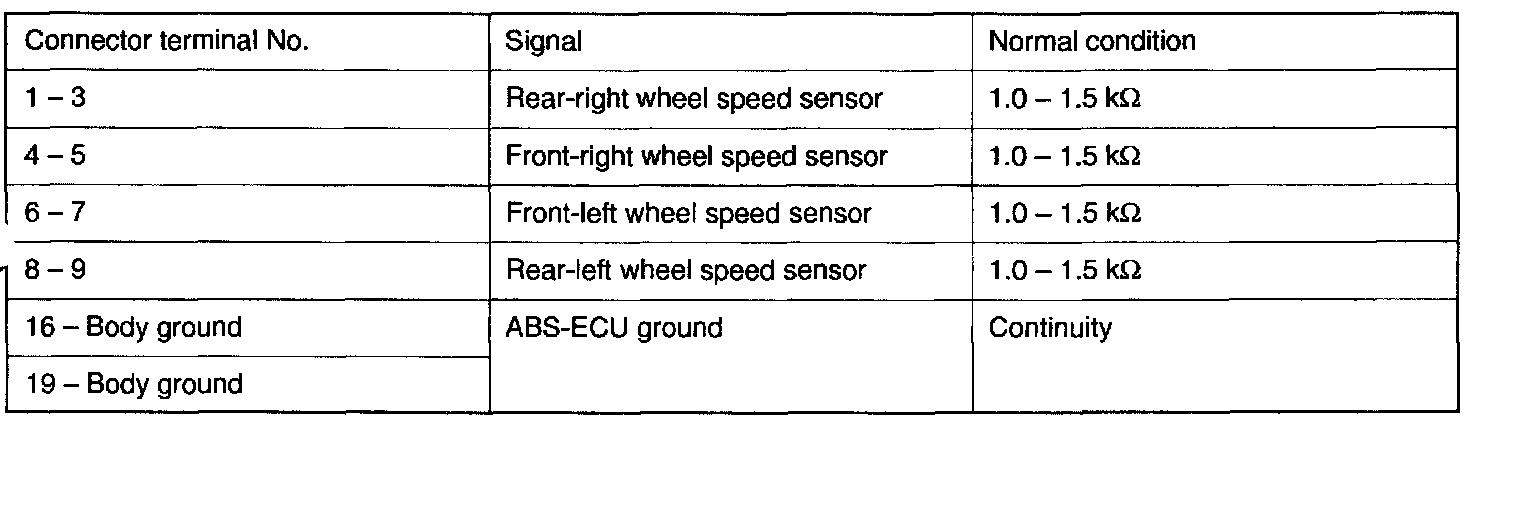

RESISTANCE AND CONTINUITY CHECK BETWEEN HARNESS-SIDE CONNECTOR TERMINALS







1. Turn the ignition switch off and disconnect the ABS-ECU connectors before checking resistance and continuity.
2. Check them between the terminals indicated in the table.
