Vehicles Without Keyless Entry System

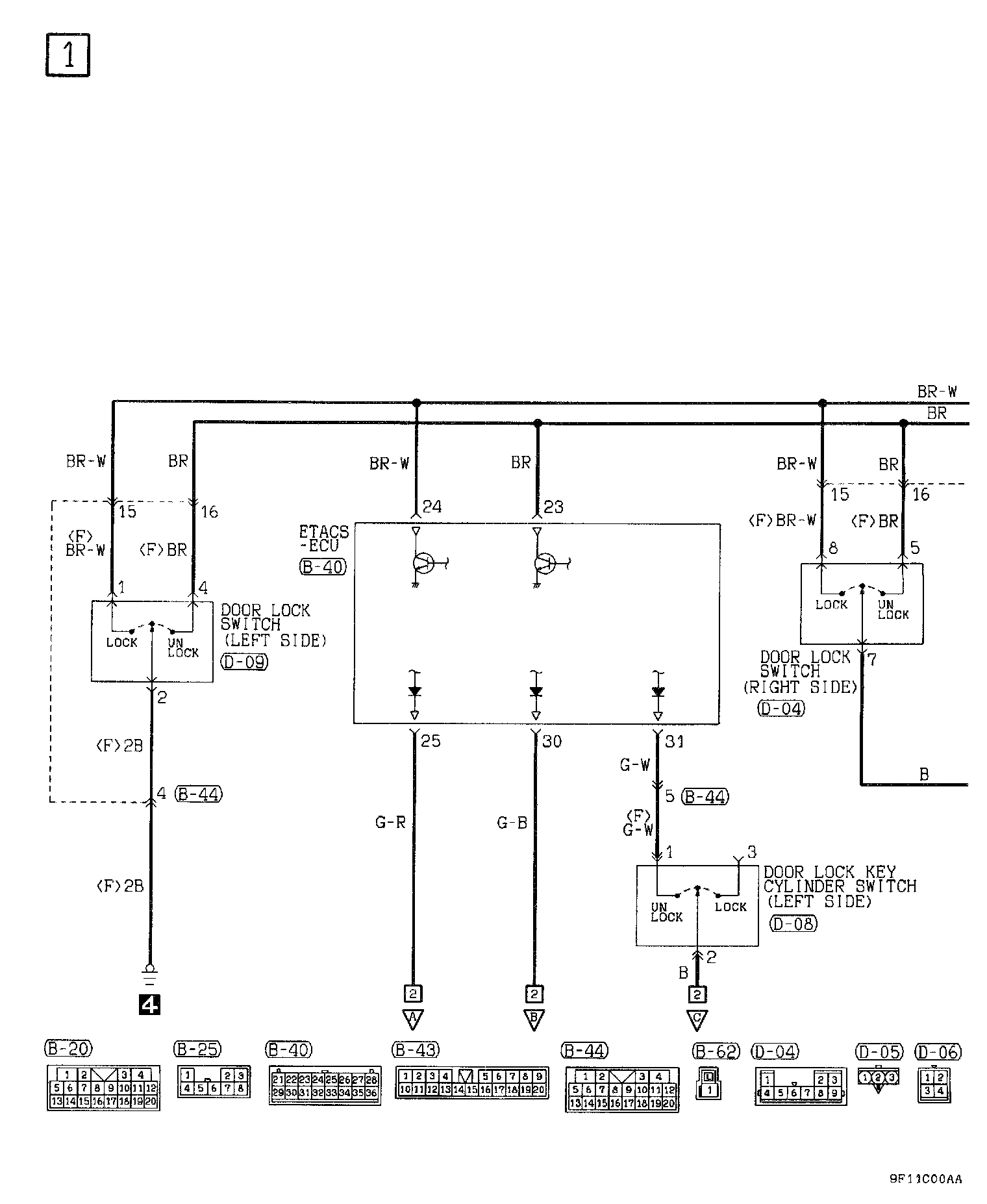

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 1 Of 4):

Door Lock Switch (Left and Right Side)
Door Lock Key Cylinder Switch (Left Side)
ETACS-ECU

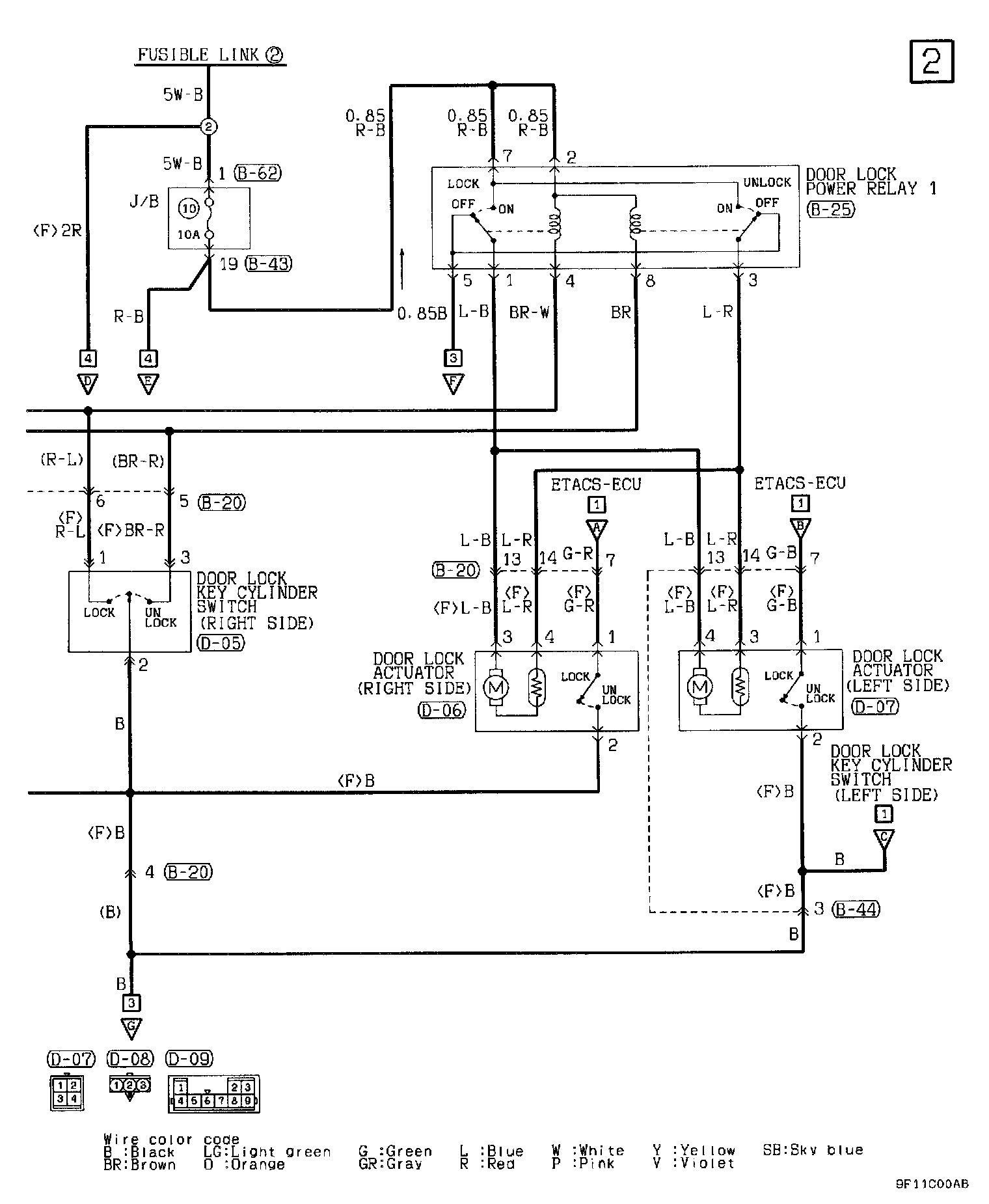

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 2 Of 4):

Door Lock Key Cylinder Switch (Right Side)
Door Lock Actuator (Left and Right Side)
Door Lock Power Relay 1
J/B

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 3 Of 4):

J/B
- EATCS-ECU
J/C (2)
Key Reminder Switch (When Key is Removed)

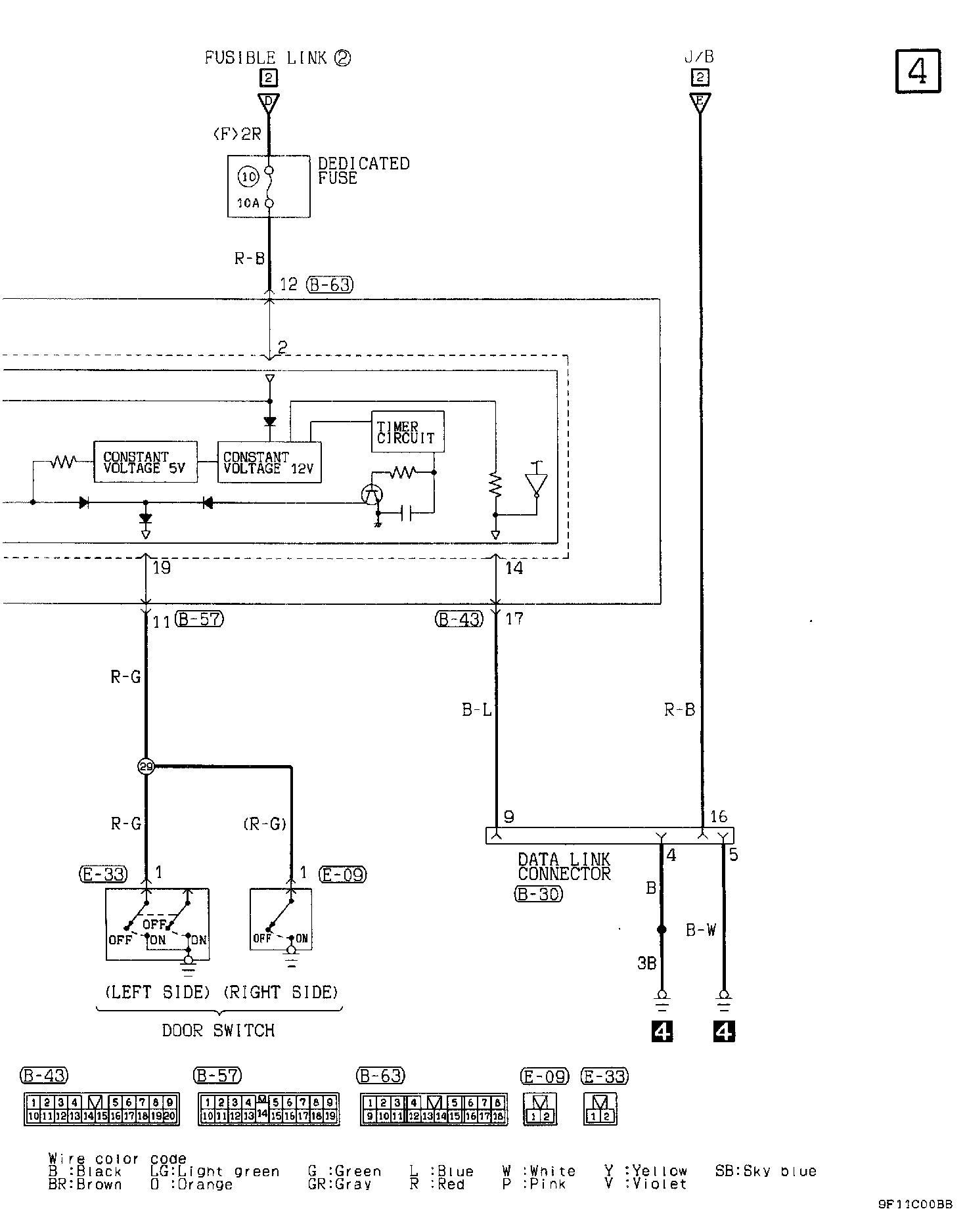

Central Door Locking System <Vehicles Without Keyless Entry System> (Part 4 Of 4):

Dedicated Fuse
Door Switch (Left and Right Side)
Data Link Connector
J/B
- EATCS-ECU
