Programming By Customer

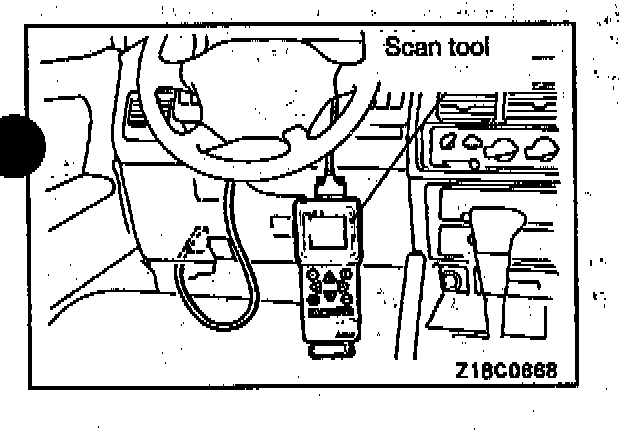

Scan Tool Data Link Connector:

Each individual secret code is registered inside the transmitter, and so it is necessary to register these codes with the receiver in the following cases.

^ When either the transmitter or receiver is replaced.
^ If a second transmitter is to be used.
^ If it appears that a problem is occurring because of faulty registration of a code.

A maximum of two different codes per transmitter can be stored in the memory area of the EEPROM, and up to two different transmitters can be used. When the codes for the first transmitter are registered, the previously-registered codes for both transmitters are cleared. Therefore, if you are using two transmitters or are adding a second transmitter, the codes for both transmitters must be registered at the same time.

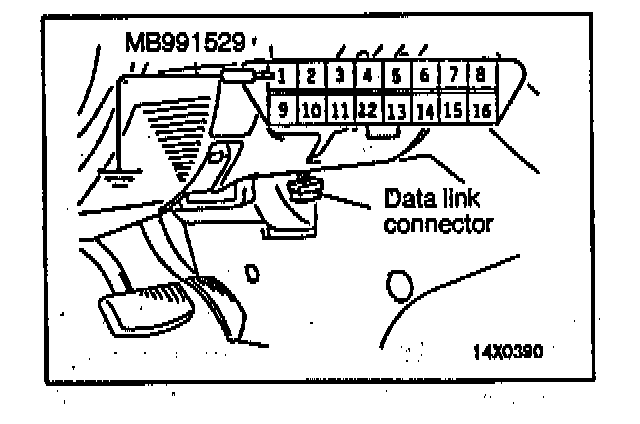

Data Link Connector Location:

Using the Special Tool

1. Use the special tool to ground data link connector terminal number 1, or bridge data link connector terminal number 1 and number 4.

NOTE: This gets ready for a code registration.

2. Close both doors.
3. Turn the ignition switch to ACC and return it to OFF.

NOTE: This locks and unlocks the doors once, and then a code(s) can be programmed.

4. Press any button on the transmitter three times within 10 seconds to program transmitter number 1.

NOTE: After programming is complete, the doors will be locked and unlocked once.

5. If you are using two transmitters or have added a second transmitter, the second transmitter can be programed by pressing any button on the second transmitter 3 times within 10 seconds. The second transmitter programming function must be performed within 60 seconds of the first programming.

NOTE: After the second programming is complete, the door will be locked and unlocked one.

6. After the last programming is made, remove the special tool, jumper wire or scan tool from the data link connector.

NOTE: Only two transmitters can be programmed.

7. Any of the following actions will cancel the programming process:

a. One minute has passed since the programming mode setting has begun.
b. Disconnect the special tool, jumper wire or scan tool from data link connector.
c. Ignition switch is turned ON.
d. Any of the doors are opened.
e. Ignition key is removed.

8. After the registration mode has finished, carry out the following procedure to check that the keyless entry system operates.

^ Remove the ignition key.
^ Close all doors.
