Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> Testing and Inspection >> Chart D Index

Chart D Index

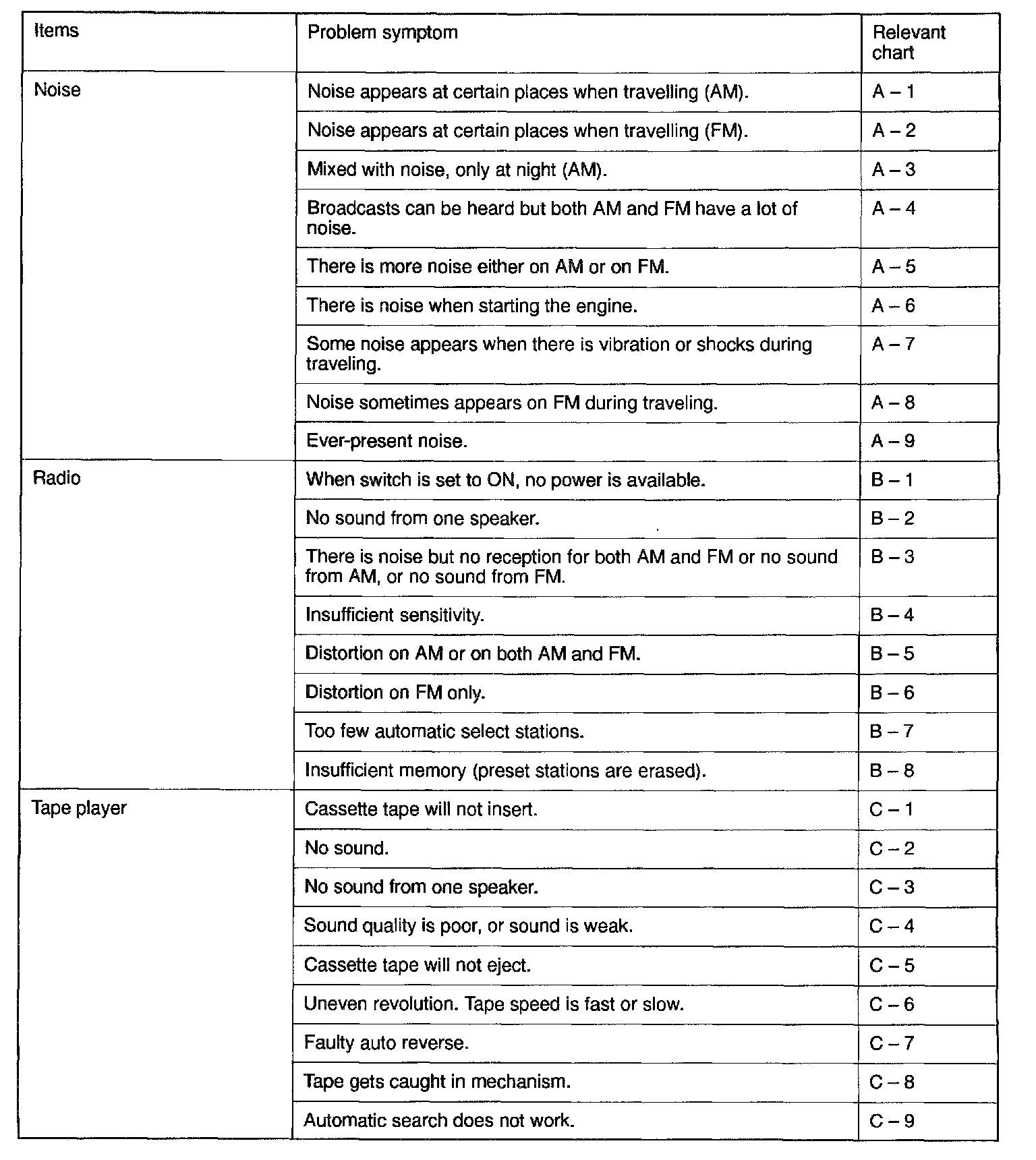

Quick-Reference Troubleshooting Chart (Part 1 Of 2):

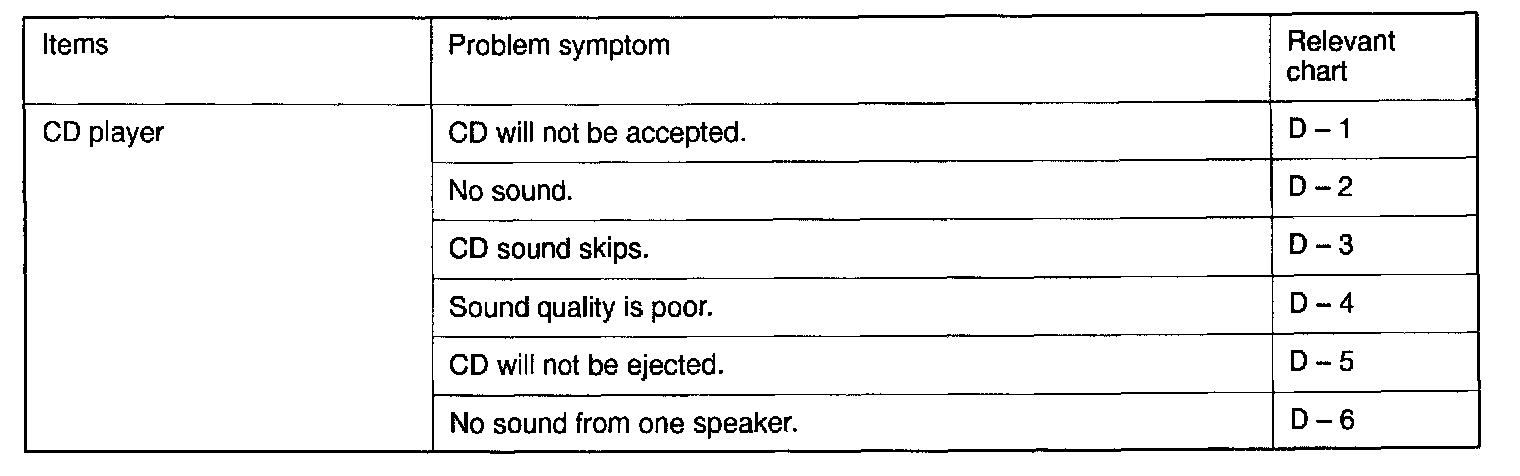

Quick-Reference Troubleshooting Chart (Part 2 Of 2):
